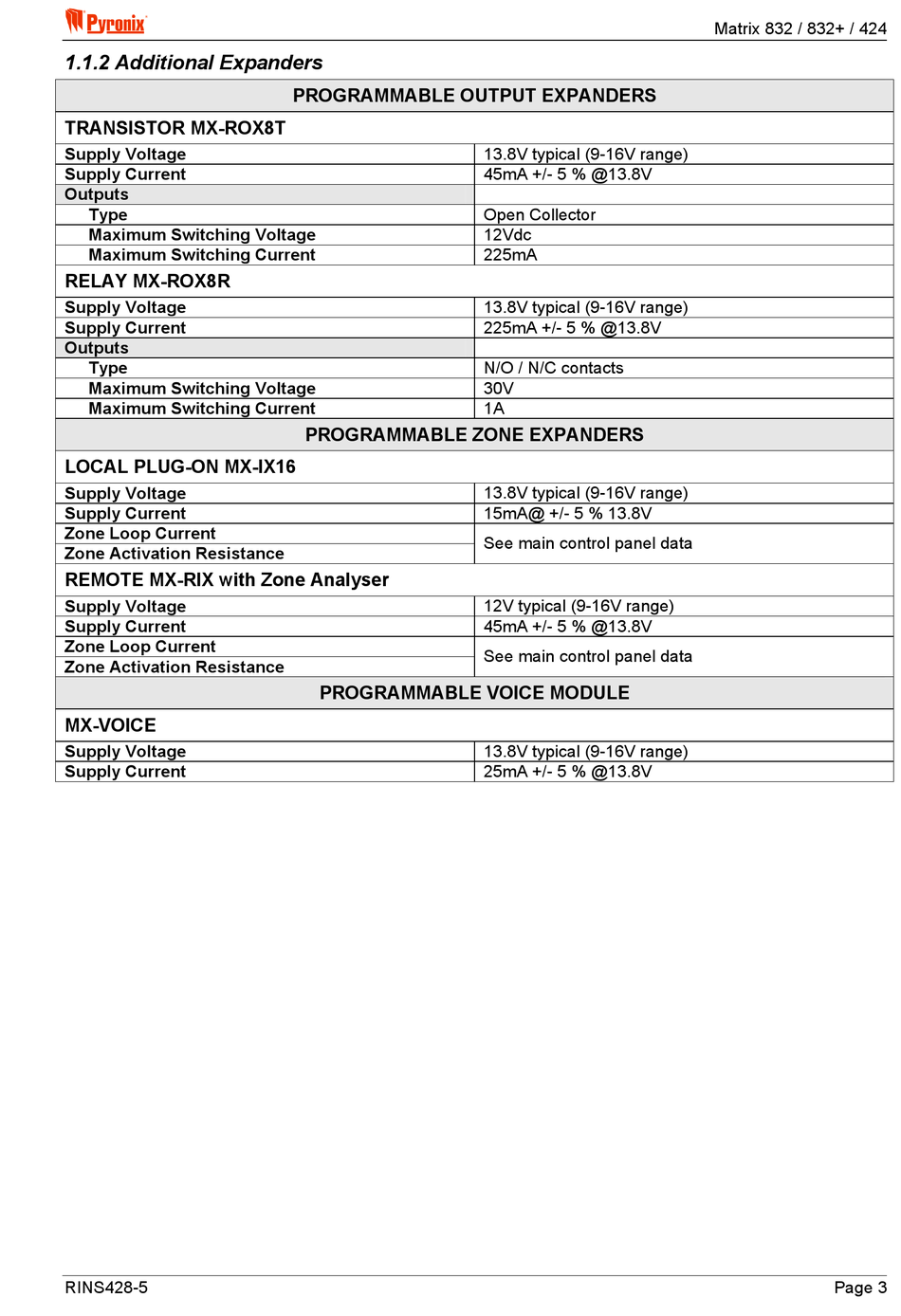

1.1.2 Additional Expanders

TRANSISTOR MX-ROX8T
Supply Voltage
Supply Current
Outputs
Type
Maximum Switching Voltage
Maximum Switching Current
RELAY MX-ROX8R
Supply Voltage
Supply Current
Outputs
Type
Maximum Switching Voltage
Maximum Switching Current
LOCAL PLUG-ON MX-IX16
Supply Voltage
Supply Current
Zone Loop Current
Zone Activation Resistance
REMOTE MX-RIX with Zone Analyser
Supply Voltage
Supply Current
Zone Loop Current
Zone Activation Resistance
MX-VOICE
Supply Voltage
Supply Current
RINS428-5
PROGRAMMABLE OUTPUT EXPANDERS
PROGRAMMABLE ZONE EXPANDERS
PROGRAMMABLE VOICE MODULE
13.8V typical (9-16V range)
45mA +/- 5 % @13.8V
Open Collector
12Vdc
225mA
13.8V typical (9-16V range)
225mA +/- 5 % @13.8V
N/O / N/C contacts
30V
1A
13.8V typical (9-16V range)
15mA@ +/- 5 % 13.8V
See main control panel data
12V typical (9-16V range)
45mA +/- 5 % @13.8V
See main control panel data
13.8V typical (9-16V range)
25mA +/- 5 % @13.8V
Matrix 832 / 832+ / 424
