Belle Connection To Matrix 832 - Pyronix Matrix Series Installation Manual

Matrix 832 / 832+ / 424

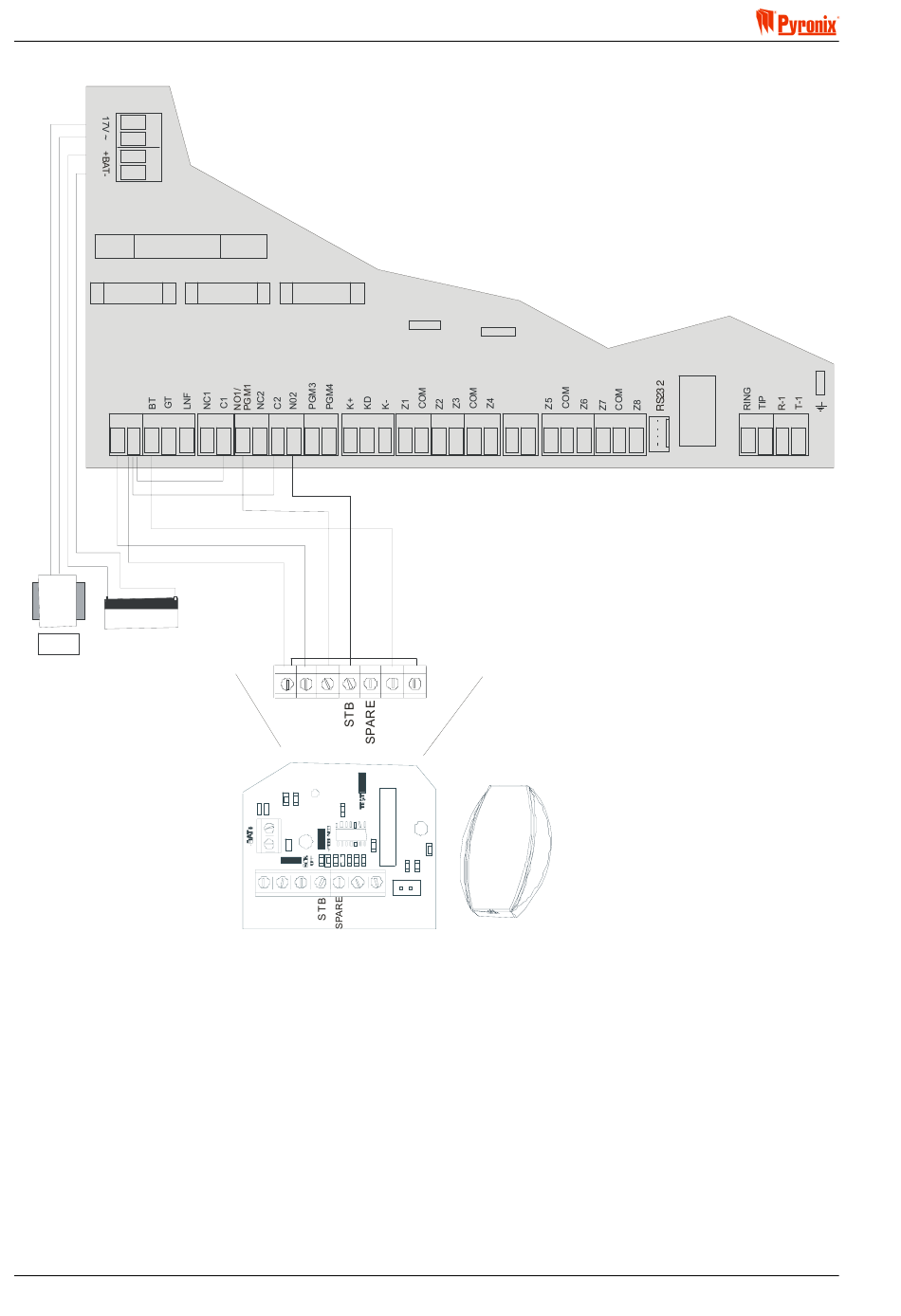

12.12.2 Belle Connection to Matrix 832+

Bell Fuse 1Amp
+BELL-
-
+
BAT
17v A.C.
Output
Page 150
Aux fuse 1Amp
Keypad fuse 1 Amp
B- B+ BA
B- B+ BA
BT
TF
PG M1 = BA = BELL O UTP UT
IMPORTANT
PG M2 = STB = STROBE TRIGG ER
The Belle may be connected / programmed using different
programmable outputs.
In this instance PGM1 is p rogrammed as "External Bell"
and PGM2 is programmed as "Strobe" - see section 4.11
+AUX-
BT TF
BELLE
TAMPER
RINS428-5
