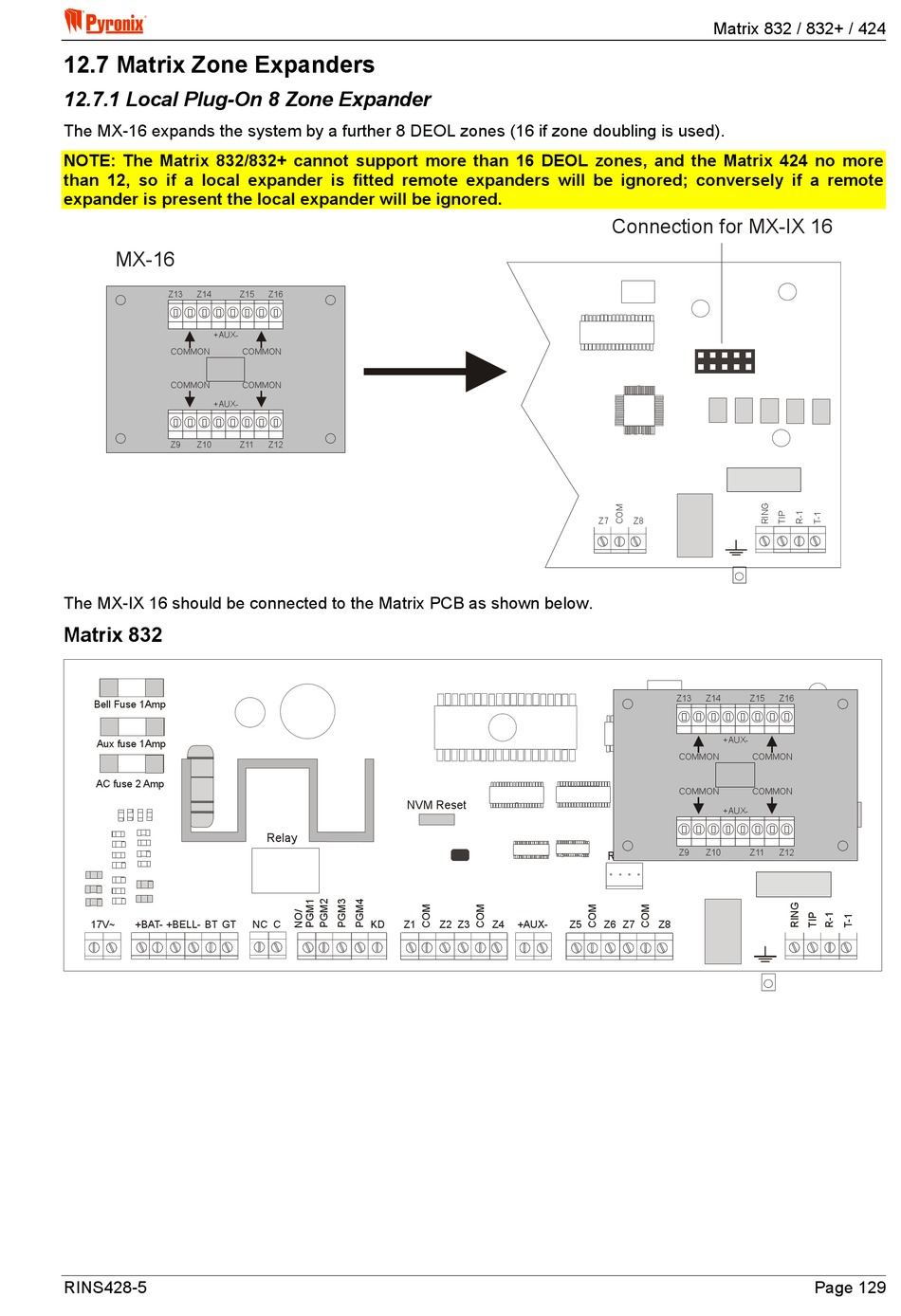

12.7 Matrix Zone Expanders

12.7.1 Local Plug-On 8 Zone Expander

The MX-16 expands the system by a further 8 DEOL zones (16 if zone doubling is used).
NOTE: The Matrix 832/832+ cannot support more than 16 DEOL zones, and the Matrix 424 no more
than 12, so if a local expander is fitted remote expanders will be ignored; conversely if a remote
expander is present the local expander will be ignored.
MX-16
Z13 Z14
+AUX-
COMMON
COMMON
+AUX-
Z9 Z10
The MX-IX 16 should be connected to the Matrix PCB as shown below.
Matrix 832
Bell Fuse 1Amp
Aux fuse 1Amp
AC fuse 2 Amp
17V~ +BAT- +BELL- BT GT
RINS428-5
Z15 Z16
COMMON
COMMON
Z11 Z12
NVM Reset
Relay
NC C KD Z1
Z7
RS232
Z2 Z3 Z4 +AUX- Z5 Z6 Z7
Matrix 832 / 832+ / 424
Connection for MX-IX 16
Z8
Z13 Z14 Z15 Z16
+AUX-
COMMON COMMON
COMMON COMMON
+AUX-
Z9 Z10 Z11 Z12
Z8
Page 129
