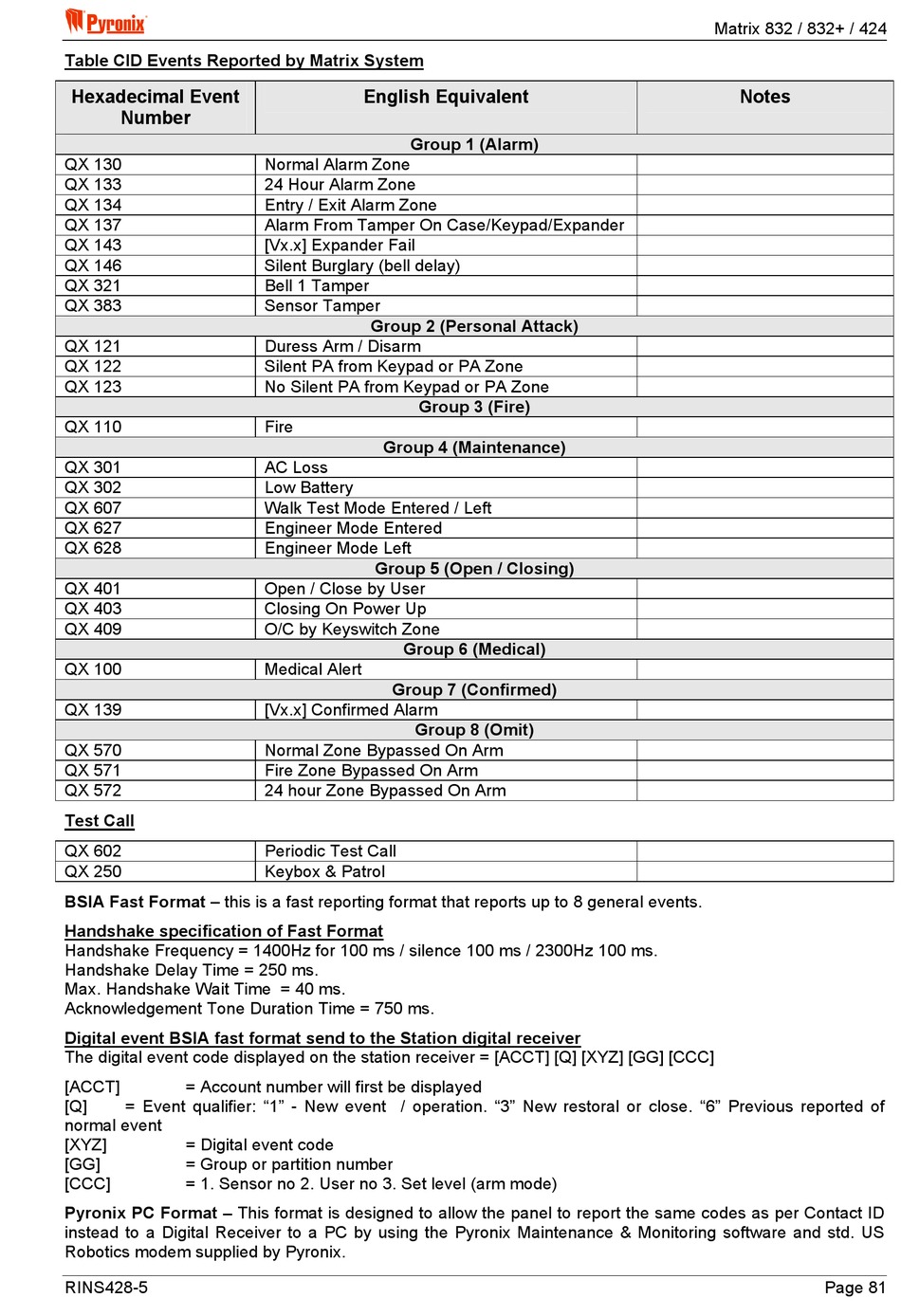

Pyronix Matrix Series Installation Manual page 87

!
Table CID Events Reported by Matrix System
Hexadecimal Event
Number
QX 130
QX 133
QX 134
QX 137
QX 143
QX 146
QX 321
QX 383
QX 121
QX 122
QX 123
QX 110
QX 301
QX 302
QX 607
QX 627
QX 628
QX 401
QX 403
QX 409
QX 100
QX 139
QX 570
QX 571
QX 572
Test Call
QX 602
QX 250
BSIA Fast Format – this is a fast reporting format that reports up to 8 general events.
Handshake specification of Fast Format
Handshake Frequency = 1400Hz for 100 ms / silence 100 ms / 2300Hz 100 ms.
Handshake Delay Time = 250 ms.
Max. Handshake Wait Time = 40 ms.
Acknowledgement Tone Duration Time = 750 ms.
Digital event BSIA fast format send to the Station digital receiver
The digital event code displayed on the station receiver = [ACCT] [Q] [XYZ] [GG] [CCC]
[ACCT] = Account number will first be displayed
[Q] = Event qualifier: "1" - New event / operation. "3" New restoral or close. "6" Previous reported of
normal event
[XYZ] = Digital event code
[GG] = Group or partition number
[CCC] = 1. Sensor no 2. User no 3. Set level (arm mode)
Pyronix PC Format – This format is designed to allow the panel to report the same codes as per Contact ID
instead to a Digital Receiver to a PC by using the Pyronix Maintenance & Monitoring software and std. US
Robotics modem supplied by Pyronix.
RINS428-5
English Equivalent
Group 1 (Alarm)
Normal Alarm Zone
24 Hour Alarm Zone
Entry / Exit Alarm Zone
Alarm From Tamper On Case/Keypad/Expander
[Vx.x] Expander Fail
Silent Burglary (bell delay)
Bell 1 Tamper
Sensor Tamper
Group 2 (Personal Attack)
Duress Arm / Disarm
Silent PA from Keypad or PA Zone
No Silent PA from Keypad or PA Zone
Group 3 (Fire)
Fire
Group 4 (Maintenance)
AC Loss
Low Battery
Walk Test Mode Entered / Left
Engineer Mode Entered
Engineer Mode Left
Group 5 (Open / Closing)
Open / Close by User
Closing On Power Up
O/C by Keyswitch Zone
Group 6 (Medical)
Medical Alert
Group 7 (Confirmed)
[Vx.x] Confirmed Alarm
Group 8 (Omit)
Normal Zone Bypassed On Arm
Fire Zone Bypassed On Arm
24 hour Zone Bypassed On Arm
Periodic Test Call
Keybox & Patrol
Matrix 832 / 832+ / 424
Notes
Page 81
