Keypads & Proximity Readers Connections; Connecting A Single Keypad To Matrix 832 - Pyronix Matrix Series Installation Manual

!
Matrix 832 / 832+ / 424
12.9 Keypads & Proximity Readers Connections
NOTE: Terminal connections for the Matrix 424 are the same as for the Matrix 832, with the exception
of KTR. This must be connected to a spare zone programmed as 'Tamper'.
NOTE: When connecting keypads to a Matrix panel, the first keypad must always be ID1.

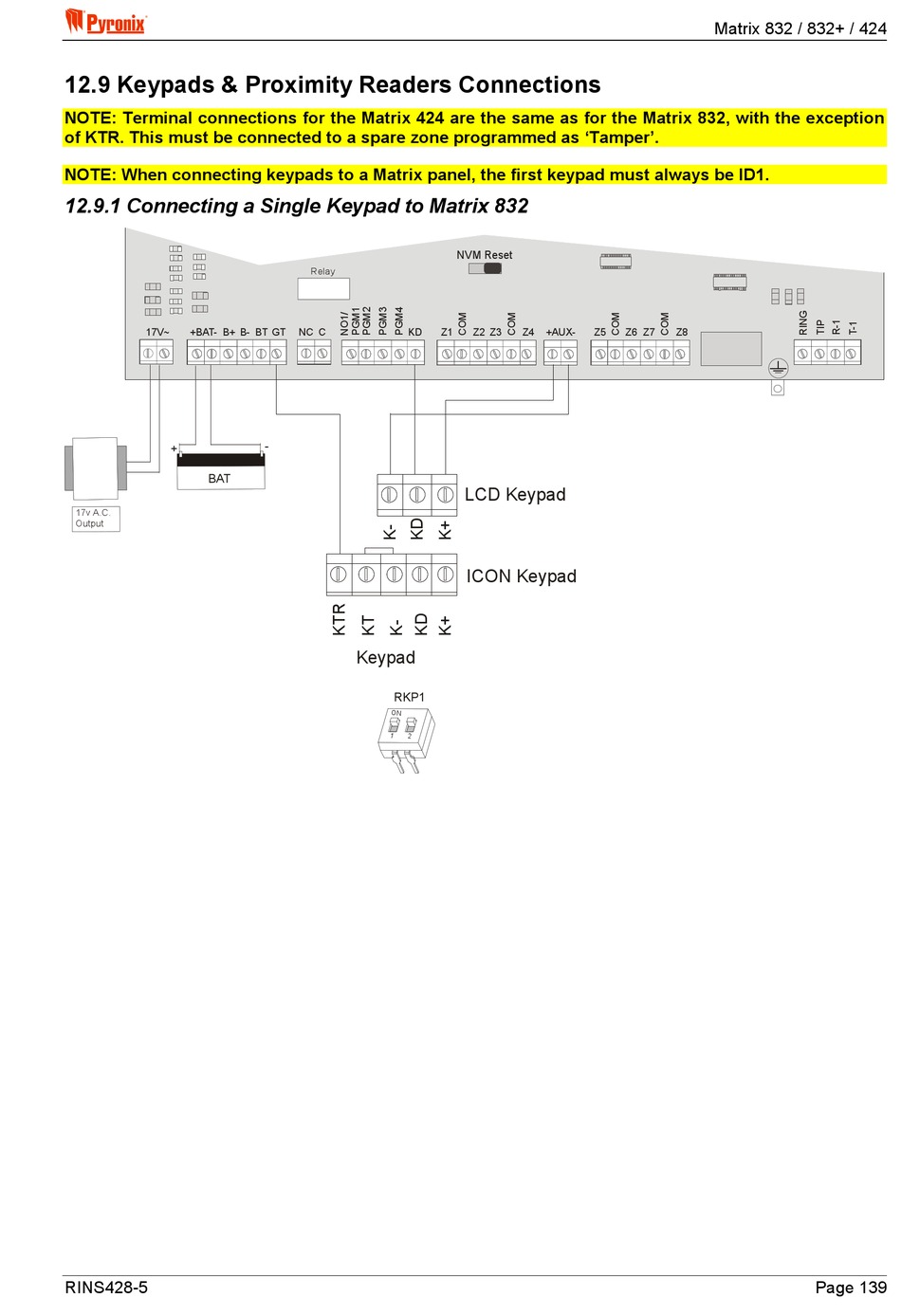

12.9.1 Connecting a Single Keypad to Matrix 832

NVM Reset
Relay
17V~ +BAT- B+ B- BT GT NC C KD Z1 Z2 Z3 Z4 +AUX- Z5 Z6 Z7 Z8
LCD Keypad
ICON Keypad
Keypad
RKP1
RINS428-5 Page 139
