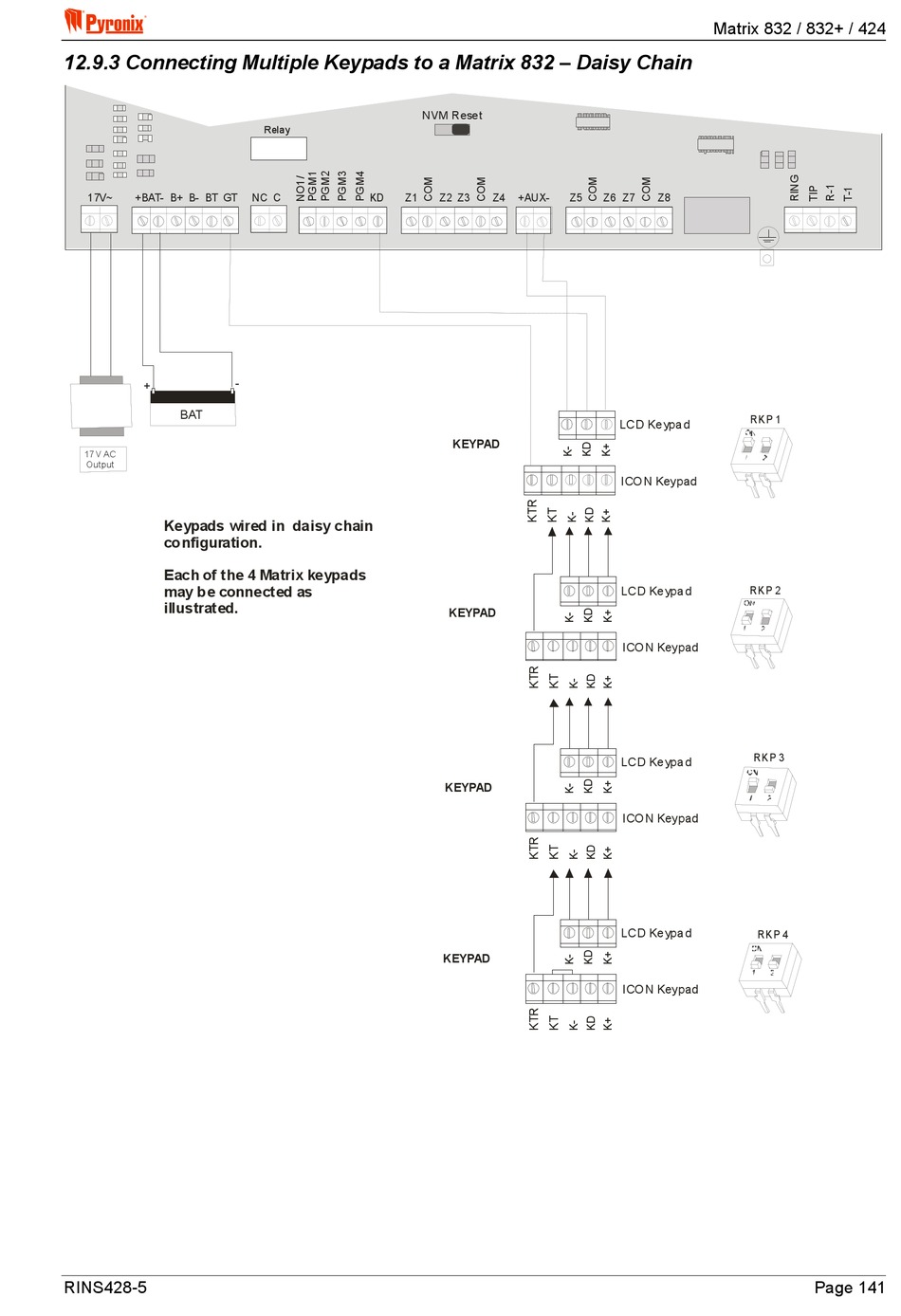

12.9.3 Connecting Multiple Keypads to a Matrix 832 – Daisy Chain
17V~ +BAT- B+ B- BT GT
Keypads wired in daisy chain
configuration.
Each of the 4 Matrix keypads
may be connected as
illustrated.
RINS428-5
Relay
NC C KD Z1
NVM Rese t
Z2 Z3 Z4 +AUX- Z5
KEYPAD
KEYPAD
KEYPAD
KEYPAD
Matrix 832 / 832+ / 424
Z6 Z7 Z8
RKP 1
LCD Ke ypa d
ICO N Keypad
LCD Ke ypa d RKP 2
ICO N Keypad
RKP 3
LCD Ke ypa d
ICO N Keypad
LCD Ke ypa d
RKP 4
ICO N Keypad
Page 141
