Section 13: Partition Management

Area 3
Independent

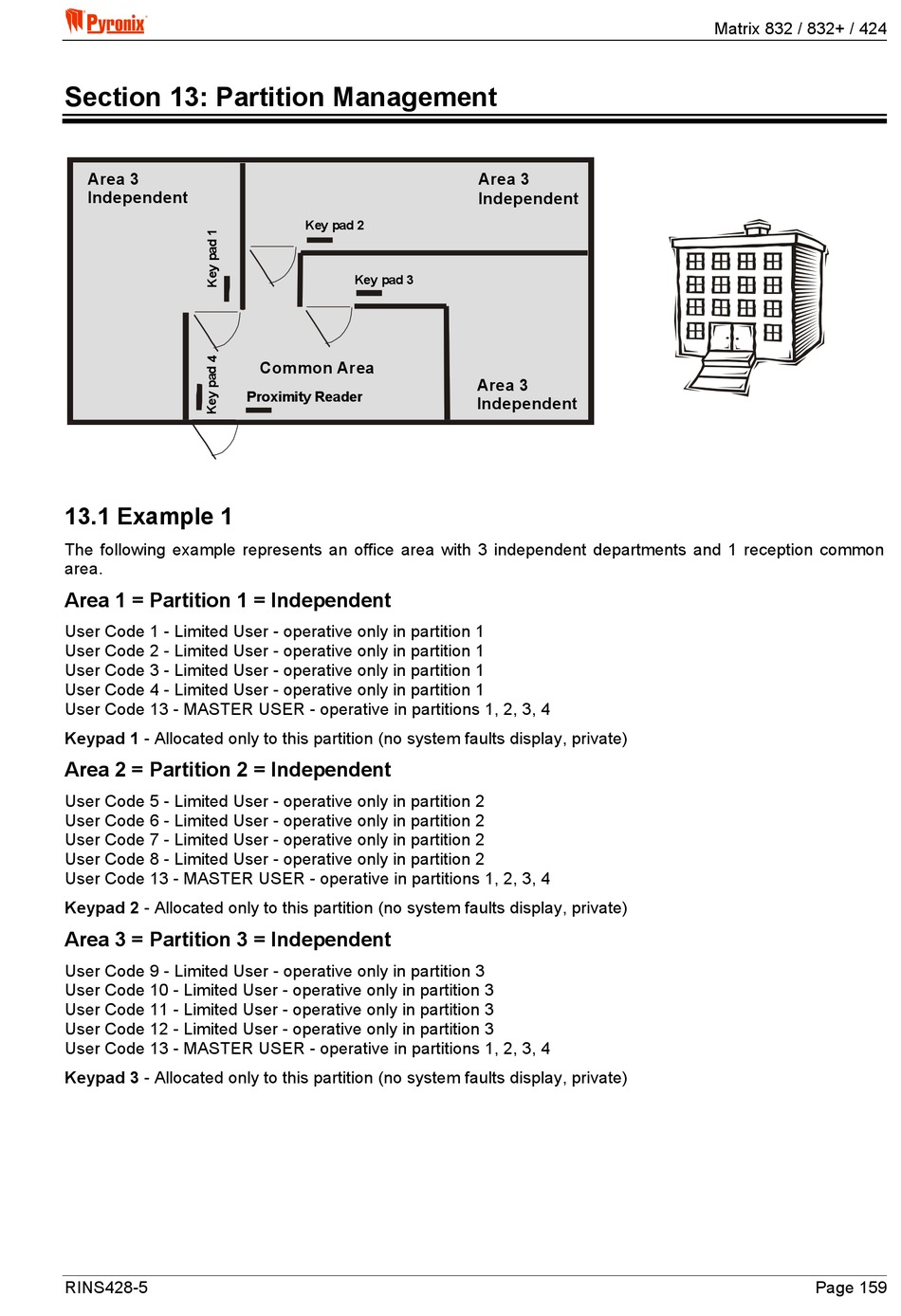

13.1 Example 1

The following example represents an office area with 3 independent departments and 1 reception common
area.
Area 1 = Partition 1 = Independent
User Code 1 - Limited User - operative only in partition 1
User Code 2 - Limited User - operative only in partition 1
User Code 3 - Limited User - operative only in partition 1
User Code 4 - Limited User - operative only in partition 1
User Code 13 - MASTER USER - operative in partitions 1, 2, 3, 4
Keypad 1 - Allocated only to this partition (no system faults display, private)
Area 2 = Partition 2 = Independent
User Code 5 - Limited User - operative only in partition 2
User Code 6 - Limited User - operative only in partition 2
User Code 7 - Limited User - operative only in partition 2
User Code 8 - Limited User - operative only in partition 2
User Code 13 - MASTER USER - operative in partitions 1, 2, 3, 4
Keypad 2 - Allocated only to this partition (no system faults display, private)
Area 3 = Partition 3 = Independent
User Code 9 - Limited User - operative only in partition 3
User Code 10 - Limited User - operative only in partition 3
User Code 11 - Limited User - operative only in partition 3
User Code 12 - Limited User - operative only in partition 3
User Code 13 - MASTER USER - operative in partitions 1, 2, 3, 4
Keypad 3 - Allocated only to this partition (no system faults display, private)
RINS428-5
Key pad 2
Key pad 3
Common Area
Proximity Reader
Area 3
Independent
Area 3
Independent
Matrix 832 / 832+ / 424
Page 159
