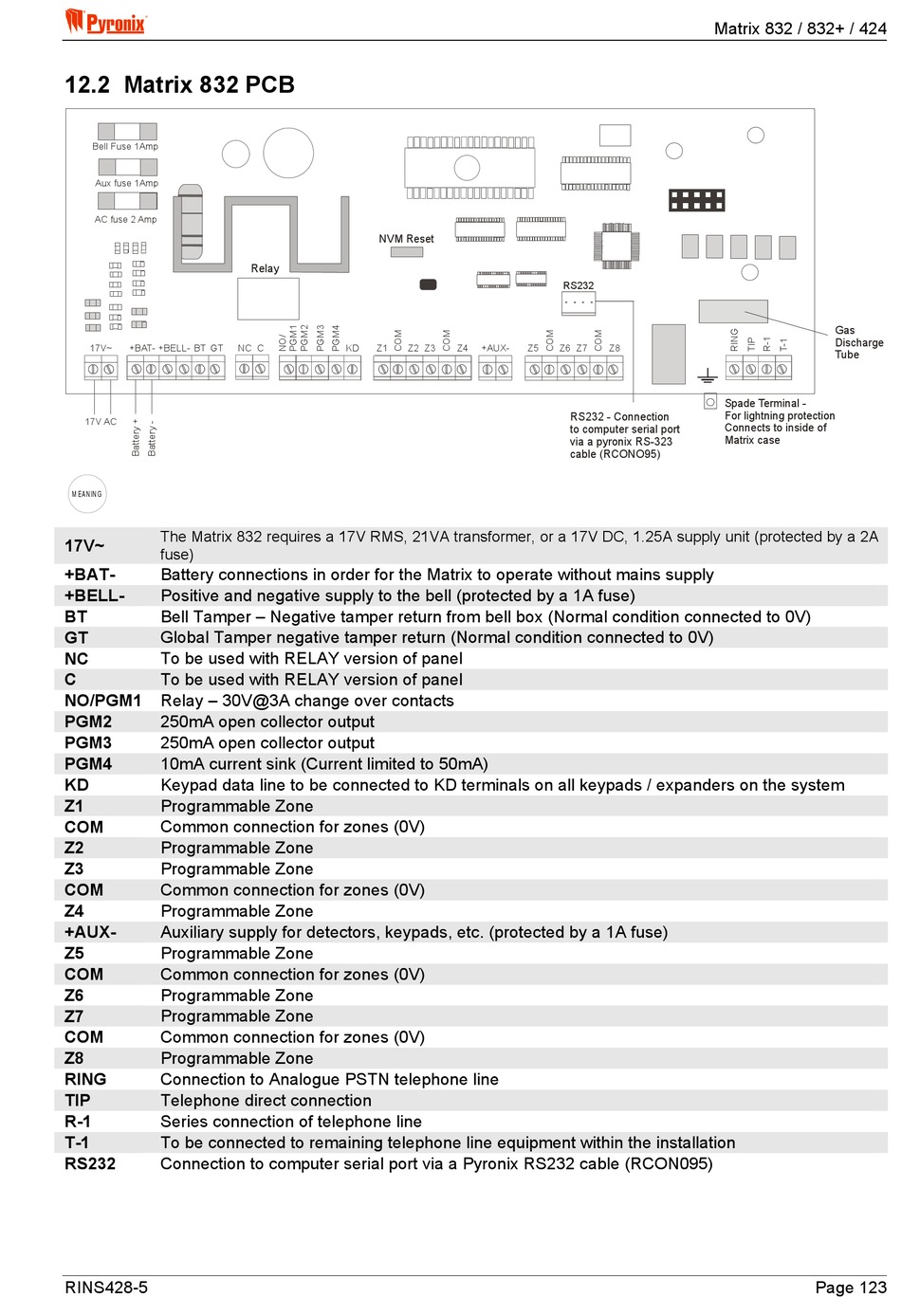

12.2 Matrix 832 PCB

Bell Fuse 1Amp
Aux fuse 1Amp
AC fuse 2 Amp
17V~ +BAT- +BELL- BT GT
17V AC
MEANING
The Matrix 832 requires a 17V RMS, 21VA transformer, or a 17V DC, 1.25A supply unit (protected by a 2A
17V~
fuse)
+BAT- Battery connections in order for the Matrix to operate without mains supply
+BELL- Positive and negative supply to the bell (protected by a 1A fuse)
BT Bell Tamper – Negative tamper return from bell box (Normal condition connected to 0V)
GT Global Tamper negative tamper return (Normal condition connected to 0V)
NC To be used with RELAY version of panel
C To be used with RELAY version of panel
NO/PGM1 Relay – 30V@3A change over contacts
PGM2 250mA open collector output
250mA open collector output
PGM3
PGM4 10mA current sink (Current limited to 50mA)
KD Keypad data line to be connected to KD terminals on all keypads / expanders on the system
Z1 Programmable Zone
COM Common connection for zones (0V)
Z2 Programmable Zone
Programmable Zone
Z3
COM Common connection for zones (0V)
Z4 Programmable Zone
+AUX- Auxiliary supply for detectors, keypads, etc. (protected by a 1A fuse)
Z5 Programmable Zone
COM Common connection for zones (0V)
Z6 Programmable Zone
Z7 Programmable Zone
COM Common connection for zones (0V)
Z8 Programmable Zone
RING Connection to Analogue PSTN telephone line
TIP Telephone direct connection
R-1 Series connection of telephone line
T-1 To be connected to remaining telephone line equipment within the installation
RS232 Connection to computer serial port via a Pyronix RS232 cable (RCON095)
RINS428-5
NVM Reset
Relay
NC C KD Z1 Z2 Z3
RS232
Z4 +AUX- Z5 Z6 Z7 Z8
RS232 - Connection
to computer serial port
via a pyronix RS-323
cable (RCONO95)
Matrix 832 / 832+ / 424
Gas
Discharge
Tube
Spade Terminal -
For lightning protection
Connects to inside of
Matrix case
