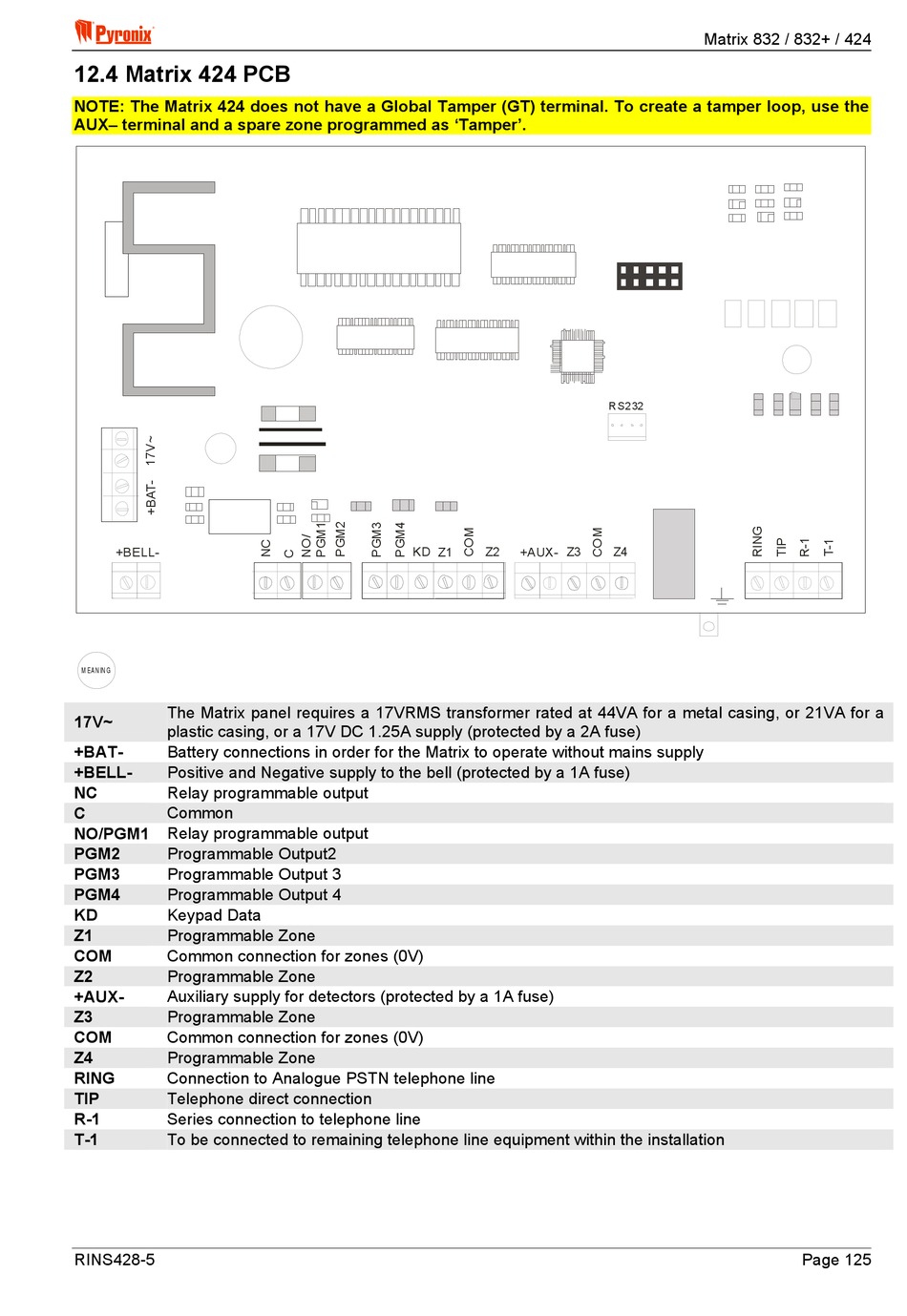

12.4 Matrix 424 PCB

NOTE: The Matrix 424 does not have a Global Tamper (GT) terminal. To create a tamper loop, use the
AUX– terminal and a spare zone programmed as 'Tamper'.
+BELL-
MEANING
The Matrix panel requires a 17VRMS transformer rated at 44VA for a metal casing, or 21VA for a
17V~
plastic casing, or a 17V DC 1.25A supply (protected by a 2A fuse)
+BAT- Battery connections in order for the Matrix to operate without mains supply
+BELL- Positive and Negative supply to the bell (protected by a 1A fuse)
NC Relay programmable output
C Common
NO/PGM1 Relay programmable output
PGM2 Programmable Output2
PGM3 Programmable Output 3
PGM4 Programmable Output 4
KD Keypad Data
Z1 Programmable Zone
COM Common connection for zones (0V)
Z2 Programmable Zone
Auxiliary supply for detectors (protected by a 1A fuse)
+AUX-
Z3 Programmable Zone
COM Common connection for zones (0V)
Z4 Programmable Zone
RING Connection to Analogue PSTN telephone line
TIP Telephone direct connection
R-1 Series connection to telephone line
T-1 To be connected to remaining telephone line equipment within the installation
RINS428-5
KD Z1 Z2 +AUX- Z3
Matrix 832 / 832+ / 424
R S2 32
Z4
