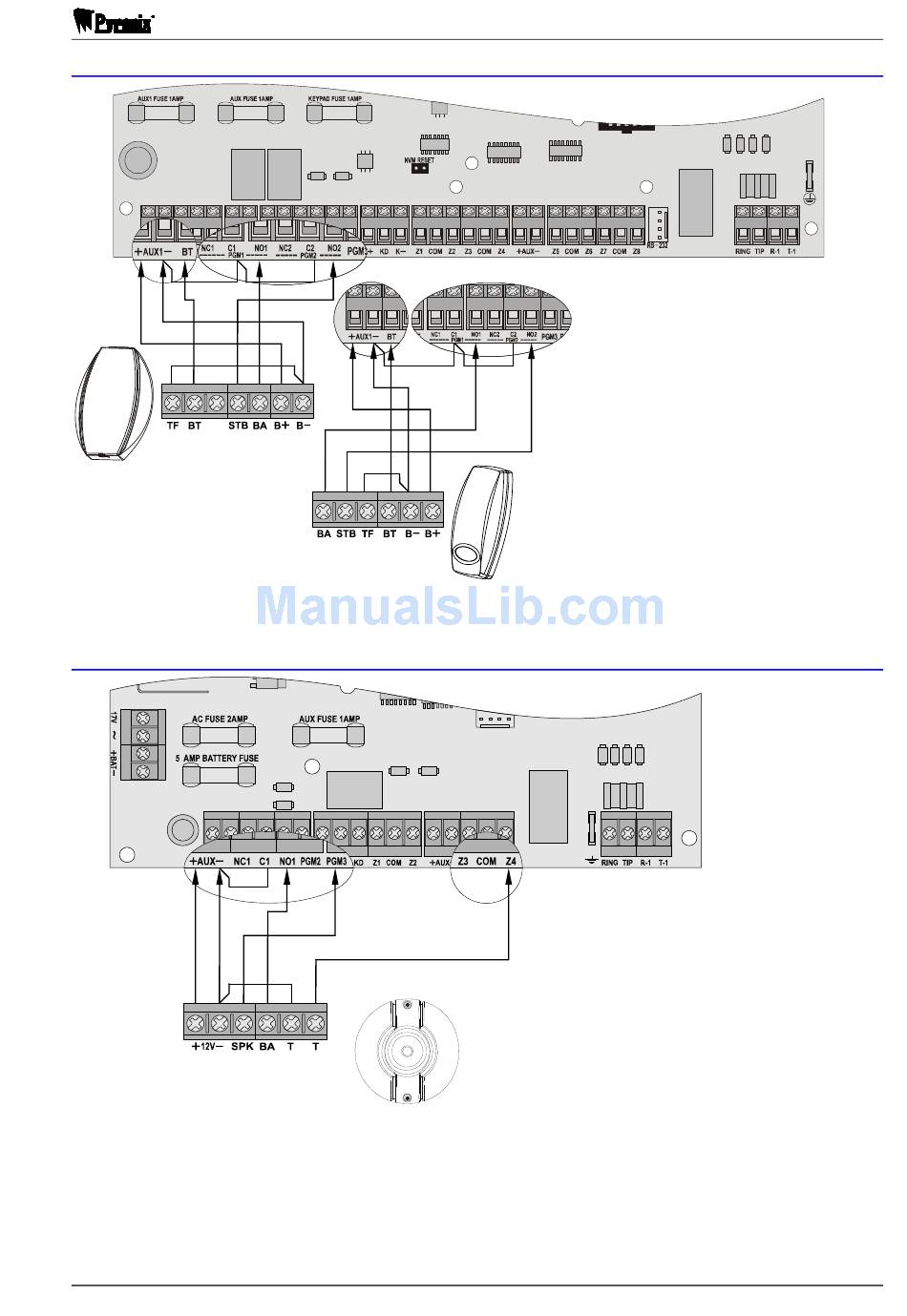

2.13.3 External Sounder Connection to Matrix 832+

BELLE

2.13.4 TWIN ALERT Internal Sounder Connection to Matrix 424

TWIN ALERT
RINS918-6
DECIBELL
MATRIX 424 PCB
Twin Alert must be connected to Matrix panel as
illustrated.
PGM3 must be programmed as "Twin Alert".
In this illustration PGM1 should be programmed as
"External Bell".
PGM1 = BA = BELL OUTPUT
PGM3 = SPK = TWIN ALERT SPEAKER OUTPUT
Matrix 424, 832, 832+ Installation Manual
MATRIX 832+ PCB
The BELLE or DECIBELL may be connected using
different programmable outputs.
In this instance PGM1 is programmed as "External
Bell" and PGM2 is programmed as "Follow Strobe".
PGM1 = BA = BELL OUTPUT
PGM2 = STB = STROBE TRIGGER
