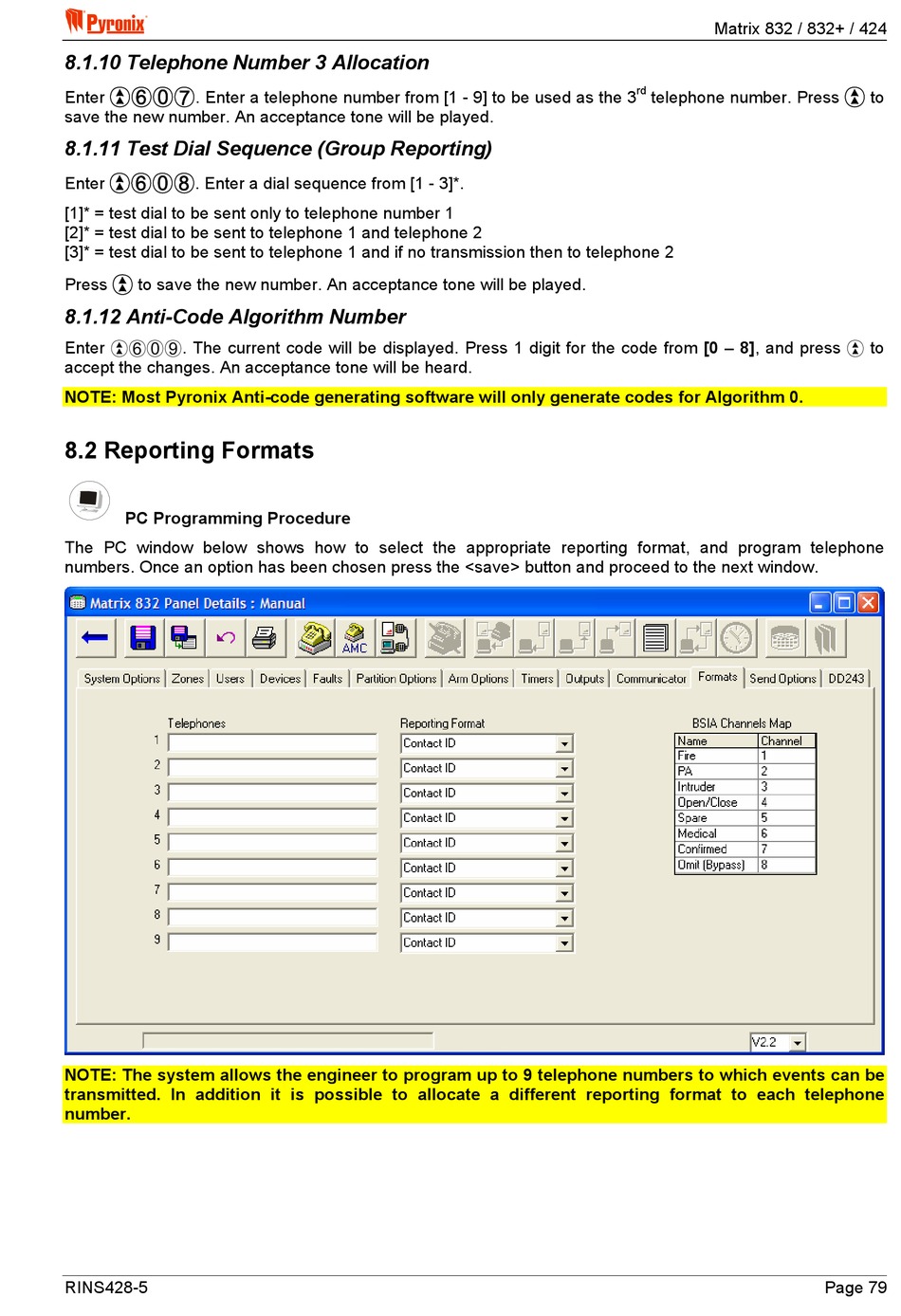

8.1.10 Telephone Number 3 Allocation

BX Y
Enter . Enter a telephone number from [1 - 9] to be used as the 3
save the new number. An acceptance tone will be played.

8.1.11 Test Dial Sequence (Group Reporting)

BX Z
Enter . Enter a dial sequence from [1 - 3]*.
[1]* = test dial to be sent only to telephone number 1
[2]* = test dial to be sent to telephone 1 and telephone 2
[3]* = test dial to be sent to telephone 1 and if no transmission then to telephone 2
B
Press to save the new number. An acceptance tone will be played.

8.1.12 Anti-Code Algorithm Number

Enter BX [. The current code will be displayed. Press 1 digit for the code from [0 – 8], and press B to
accept the changes. An acceptance tone will be heard.
NOTE: Most Pyronix Anti-code generating software will only generate codes for Algorithm 0.

8.2 Reporting Formats

PC Programming Procedure
The PC window below shows how to select the appropriate reporting format, and program telephone
numbers. Once an option has been chosen press the <save> button and proceed to the next window.
NOTE: The system allows the engineer to program up to 9 telephone numbers to which events can be
transmitted. In addition it is possible to allocate a different reporting format to each telephone
number.
RINS428-5
Matrix 832 / 832+ / 424
rd
telephone number. Press
B
to
Page 79
