Matrix 832 / 832+ / 424

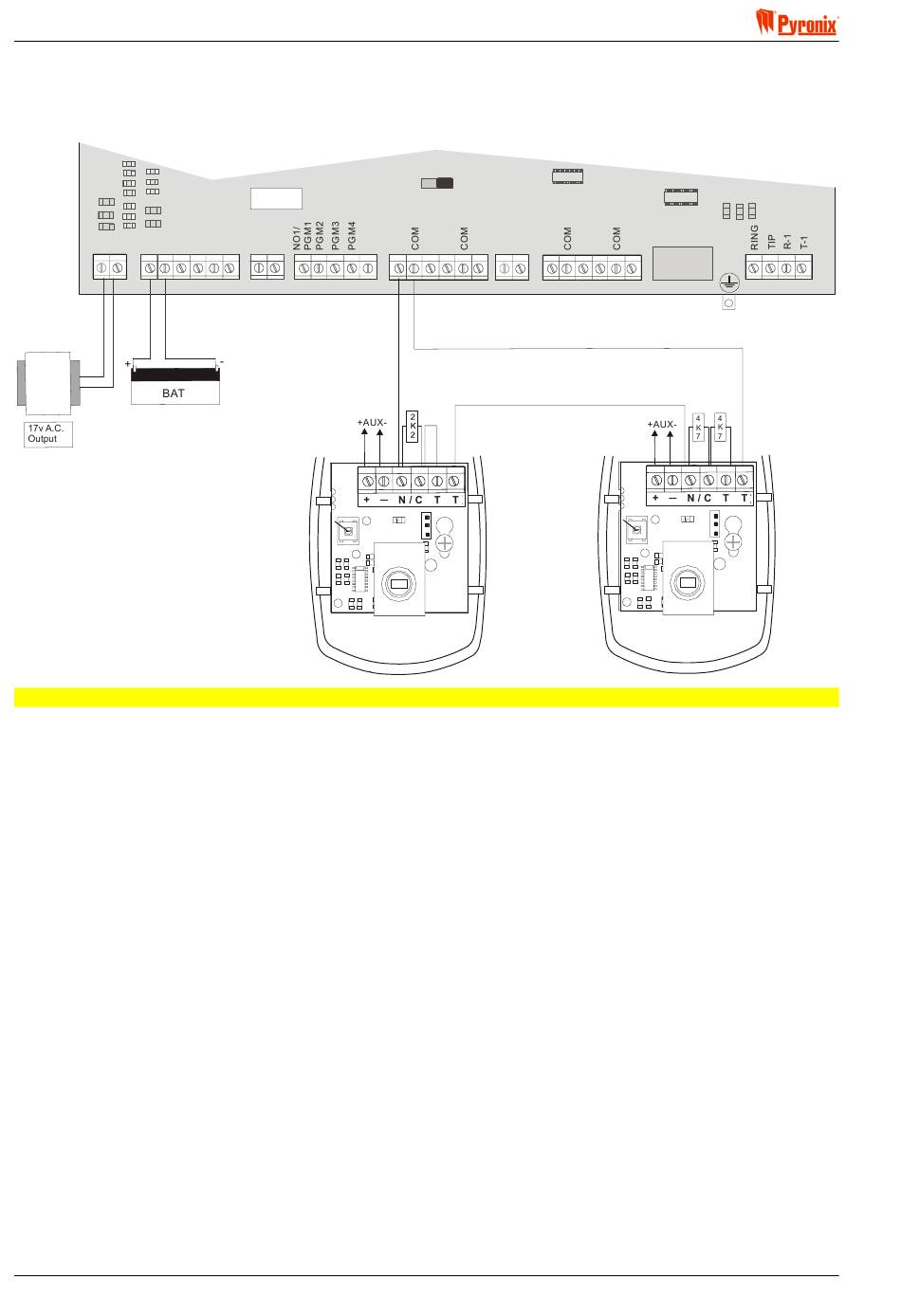

12.11 Zone Wiring Diagrams
12.11.1 Zone Doubling to Matrix 832
NVM Reset
Relay
17V~
+BAT- B+ B- BT GT
NC C
KD
Z1
Z2 Z3
Z4
+AUX-
Z5
Z6 Z7
Z8
Magnum Ultra
Magnum Ultra
Zone 1
Zone 17
NOTE: See Section 5.4 - Zone Types for a complete explanation of zone doubling.
Page 144
RINS428-5
