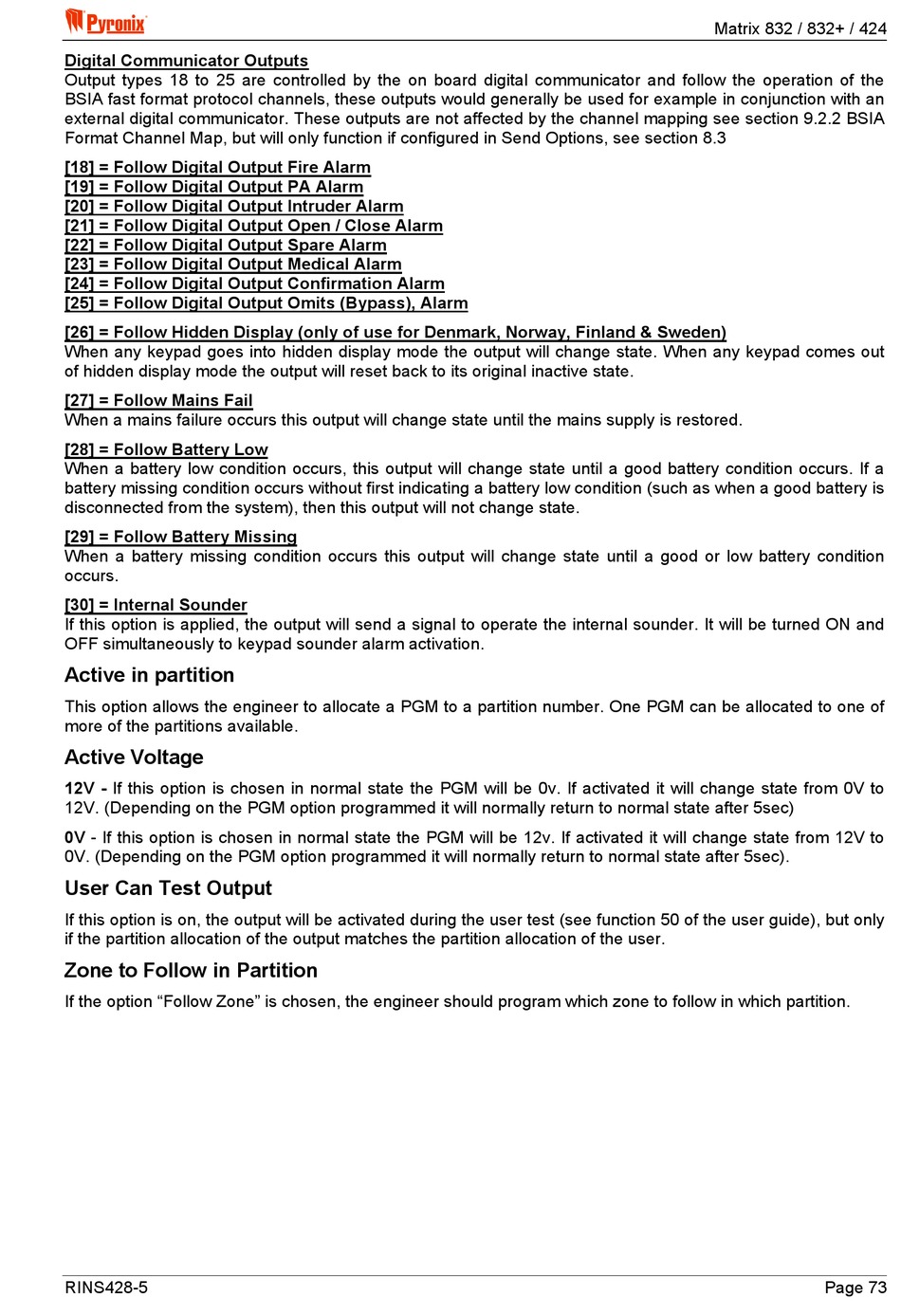

Pyronix Matrix Series Installation Manual page 79

!
Matrix 832 / 832+ / 424
Digital Communicator Outputs
Output types 18 to 25 are controlled by the on board digital communicator and follow the operation of the
BSIA fast format protocol channels, these outputs would generally be used for example in conjunction with an
external digital communicator. These outputs are not affected by the channel mapping see section 9.2.2 BSIA
Format Channel Map, but will only function if configured in Send Options, see section 8.3
[18] = Follow Digital Output Fire Alarm
[19] = Follow Digital Output PA Alarm
[20] = Follow Digital Output Intruder Alarm
[21] = Follow Digital Output Open / Close Alarm
[22] = Follow Digital Output Spare Alarm
[23] = Follow Digital Output Medical Alarm
[24] = Follow Digital Output Confirmation Alarm
[25] = Follow Digital Output Omits (Bypass), Alarm
[26] = Follow Hidden Display (only of use for Denmark, Norway, Finland & Sweden)
When any keypad goes into hidden display mode the output will change state. When any keypad comes out
of hidden display mode the output will reset back to its original inactive state.
[27] = Follow Mains Fail
When a mains failure occurs this output will change state until the mains supply is restored.
[28] = Follow Battery Low
When a battery low condition occurs, this output will change state until a good battery condition occurs. If a
battery missing condition occurs without first indicating a battery low condition (such as when a good battery is
disconnected from the system), then this output will not change state.
[29] = Follow Battery Missing
When a battery missing condition occurs this output will change state until a good or low battery condition
occurs.
[30] = Internal Sounder
If this option is applied, the output will send a signal to operate the internal sounder. It will be turned ON and
OFF simultaneously to keypad sounder alarm activation.
Active in partition
This option allows the engineer to allocate a PGM to a partition number. One PGM can be allocated to one of
more of the partitions available.
Active Voltage
12V - If this option is chosen in normal state the PGM will be 0v. If activated it will change state from 0V to
12V. (Depending on the PGM option programmed it will normally return to normal state after 5sec)
0V - If this option is chosen in normal state the PGM will be 12v. If activated it will change state from 12V to
0V. (Depending on the PGM option programmed it will normally return to normal state after 5sec).
User Can Test Output
If this option is on, the output will be activated during the user test (see function 50 of the user guide), but only
if the partition allocation of the output matches the partition allocation of the user.
Zone to Follow in Partition
If the option "Follow Zone" is chosen, the engineer should program which zone to follow in which partition.
RINS428-5 Page 73
