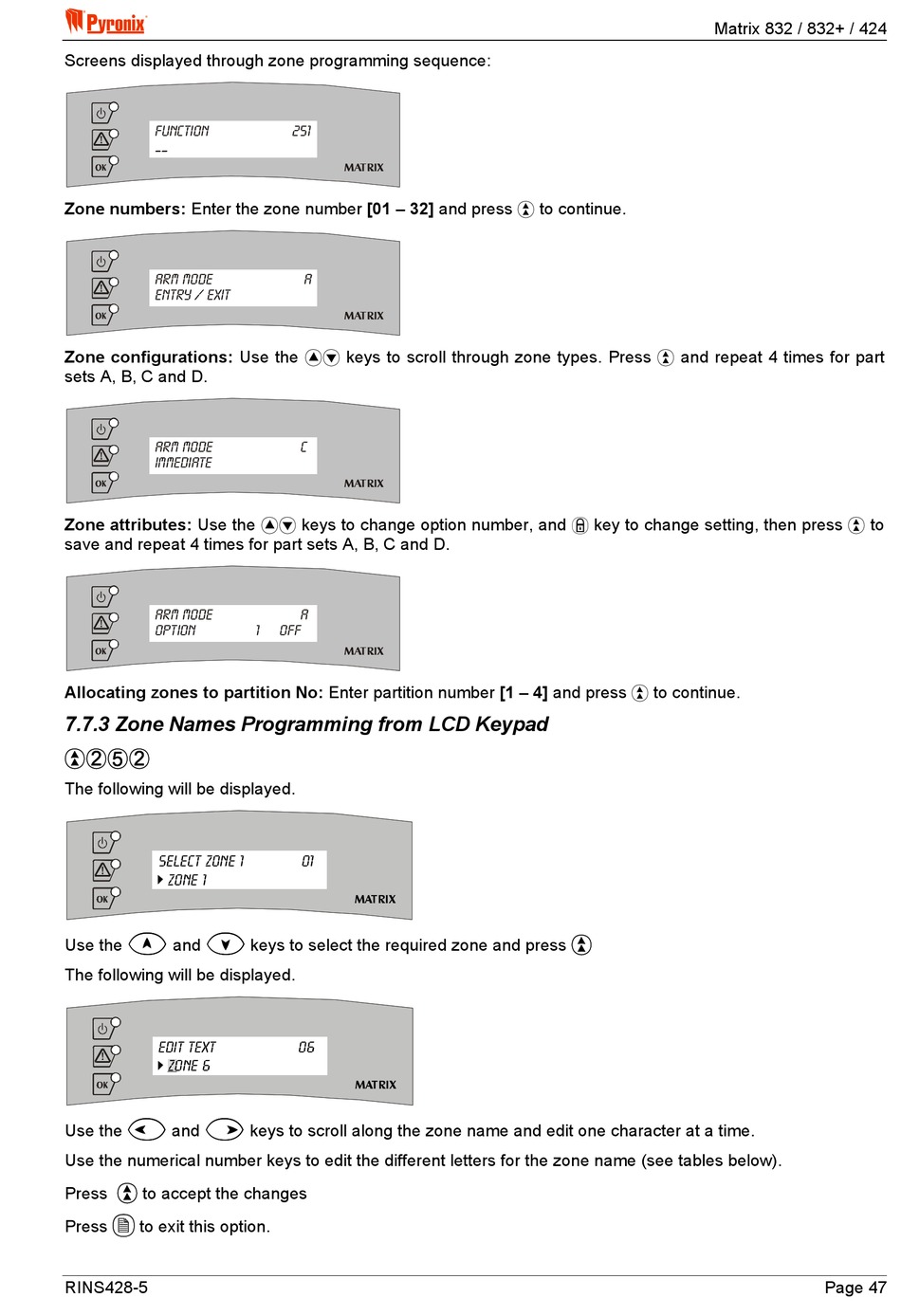

Screens displayed through zone programming sequence:
function
Zone numbers: Enter the zone number [01 – 32] and press B to continue.
ARM MODE
entry / exit
Zone configurations: Use the >? keys to scroll through zone types. Press B and repeat 4 times for part
sets A, B, C and D.
ARM MODE
immediate
Zone attributes: Use the >? keys to change option number, and C key to change setting, then press B to
save and repeat 4 times for part sets A, B, C and D.
ARM MODE
option
Allocating zones to partition No: Enter partition number [1 – 4] and press B to continue.

7.7.3 Zone Names Programming from LCD Keypad

BTWT
The following will be displayed.
SELECT ZONE 1
ZONE 1
F G
Use the and
The following will be displayed.
EDIT TEXT
ZONE 6
D E
Use the and
Use the numerical number keys to edit the different letters for the zone name (see tables below).
B
Press to accept the changes
@
Press to exit this option.
RINS428-5
251
MATRIX
A
MATRIX
C
MATRIX
A
1 off
MATRIX
01
MATRIX
keys to select the required zone and press
06
MATRIX
keys to scroll along the zone name and edit one character at a time.
Matrix 832 / 832+ / 424
B
Page 47
