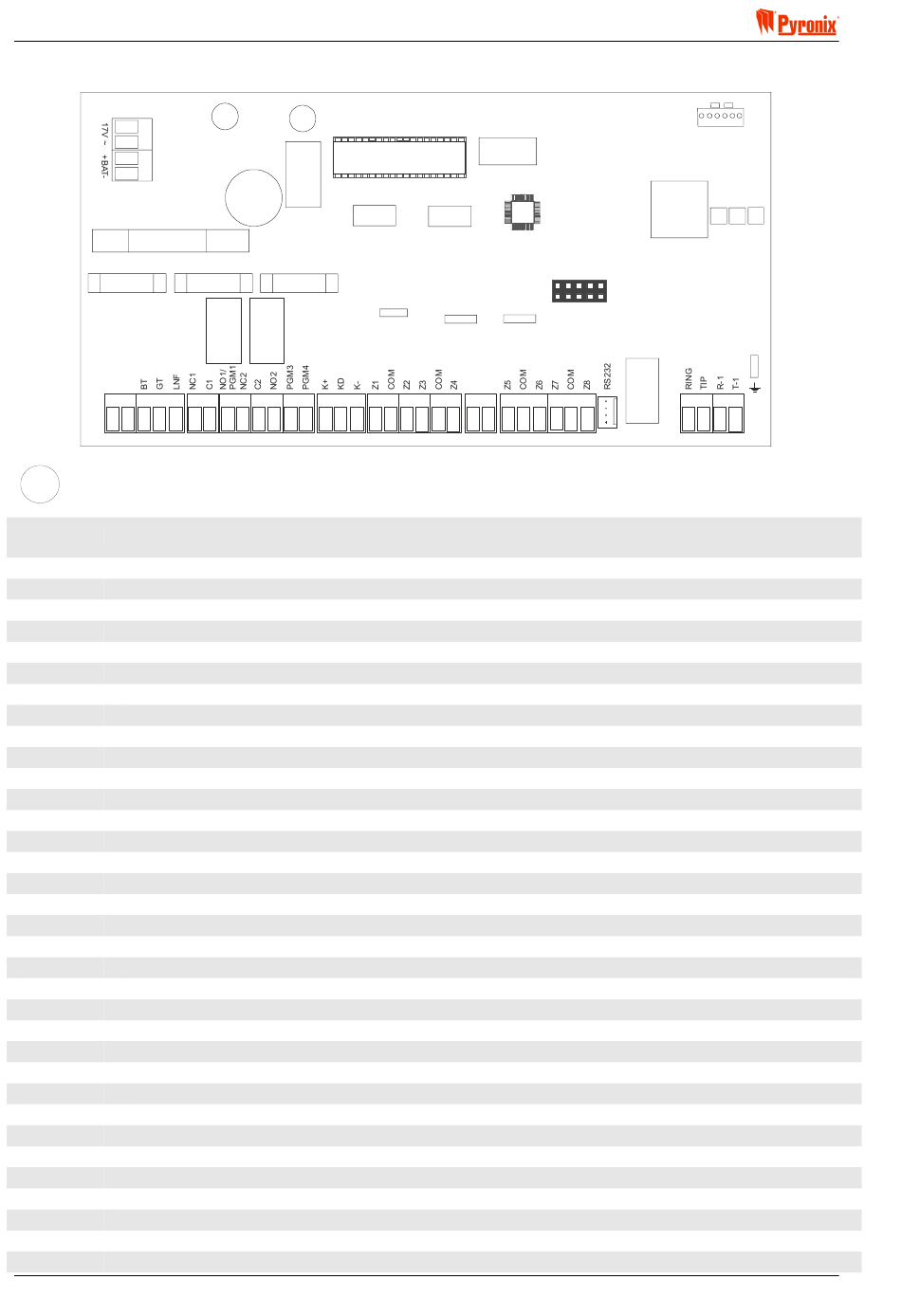

12.3 Matrix 832+ PCB

Bell Fuse 1Amp
Relays
+BELL-
MEANING
The Matrix panel requires a 17VRMS transformer rated at 44VA for a metal casing, or 21VA for a
17V~
plastic casing, or a 17V DC 1.25A supply (protected by a 2A fuse)
+BAT- Battery connections in order for the Matrix to operate without mains supply
+BELL- Positive and negative supply to the bell (protected by a 1A fuse)
BT Bell Tamper – Negative tamper return from bell box
Global Tamper negative tamper return
GT
LNF Telephone line fail input
NC1 Relay programmable output
C1 Common
NO1/PGM1 Relay programmable output
NC2 Relay programmable output
C2 Common
NO2 Relay Programmable Output
PGM3 Programmable Output 3
PGM4 Programmable Output 4
K+ +12V Keypad connection
KD Keypad Data
K- 0V keypad connection
Z1 Programmable Zone
COM Common connection for zones (0V)
Z2 Programmable Zone
Z3 Programmable Zone
Common connection for zones (0V)
COM
Z4 Programmable Zone
+AUX- Auxiliary supply for detectors (protected by a 1A fuse)
Z5 Programmable Zone
COM Common connection for zones (0V)
Z6 Programmable Zone
Programmable Zone
Z7
COM Common connection for zones (0V)
Z8 Programmable Zone
RING Connection to Analogue PSTN telephone line
TIP Telephone direct connection
R-1 Series connection to telephone line
T-1 To be connected to remaining telephone line equipment within the installation
RS232 Connection to computer serial port via a Pyronix RS232 cable (RCON095)
