Zone Types; Zone Configuration - Pyronix Matrix Series Installation Manual

Matrix 832 / 832+ / 424
FA U L T A RMED A L A R M
SU PPLY 8 FIRE
D A Y R EAD Y P.A. T A MPE R
1 2 3 4
P .A. A B C D SET
5 6 7 8
FIR E FUN C
9 0
Keypad Programming Procedure

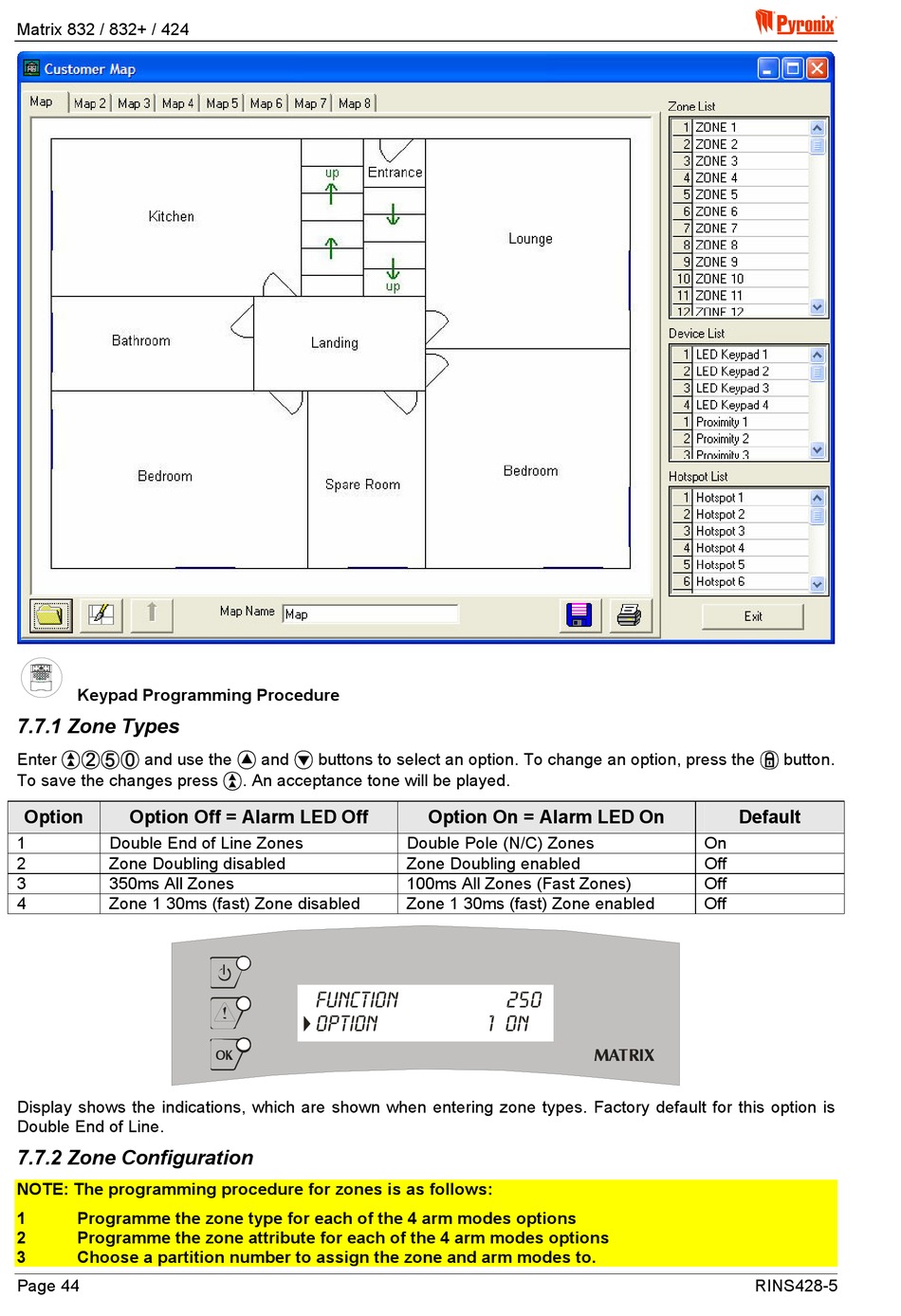

7.7.1 Zone Types

BTW
Enter and use the
To save the changes press
Option Option Off = Alarm LED Off
1 Double End of Line Zones
2 Zone Doubling disabled
3 350ms All Zones
4 Zone 1 30ms (fast) Zone disabled
Display shows the indications, which are shown when entering zone types. Factory default for this option is
Double End of Line.

7.7.2 Zone Configuration

NOTE: The programming procedure for zones is as follows:
1 Programme the zone type for each of the 4 arm modes options
2 Programme the zone attribute for each of the 4 arm modes options
3 Choose a partition number to assign the zone and arm modes to.
Page 44
> ?
and buttons to select an option. To change an option, press the
B
. An acceptance tone will be played.
function
OPTION
OK
Option On = Alarm LED On
Double Pole (N/C) Zones
Zone Doubling enabled
100ms All Zones (Fast Zones)
Zone 1 30ms (fast) Zone enabled
250
1 on
C
Default
On
Off
Off
Off
MATRIX
RINS428-5
button.
