4.5 Logic

4.5.1 Logic basic settings

The Glass Push Button II Smart has 4 additional logic functions.

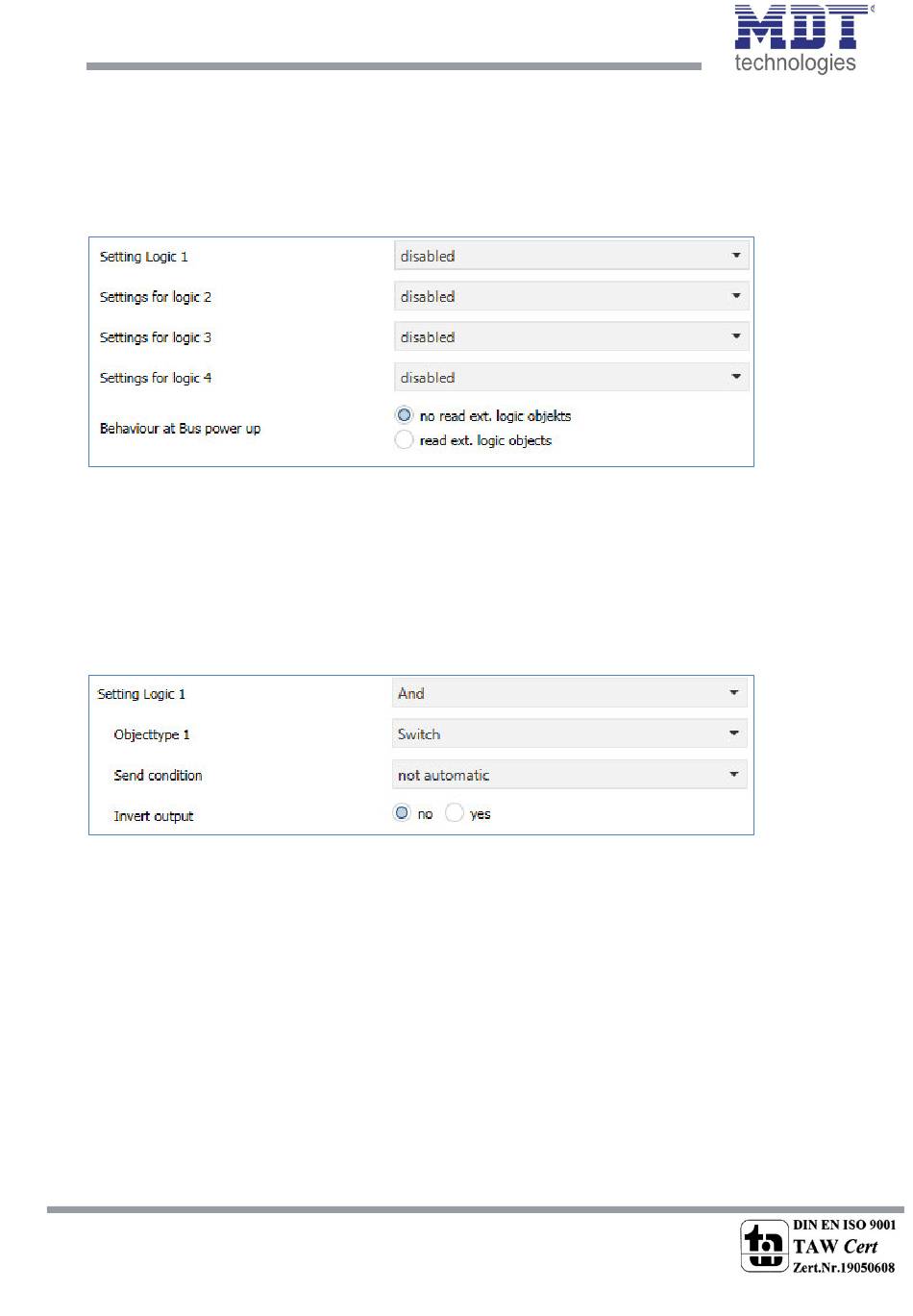

The following figure shows the activation and basic functions of the logic functions:
Figure 46: Basic settings - Logic
The "Behavior on bus power up" parameter defines whether the external objects are to be requested
after a bus voltage return.
Additional parameters are then displayed for an activated logic.
4.5.2 Logic 1-4
If a logic is activated, the logical operation and the object type can be set for the output:
Figure 47: Settings - Logic 1-4
