Datasheet - MDT Glass Push Button II Smart Series Technical Manual

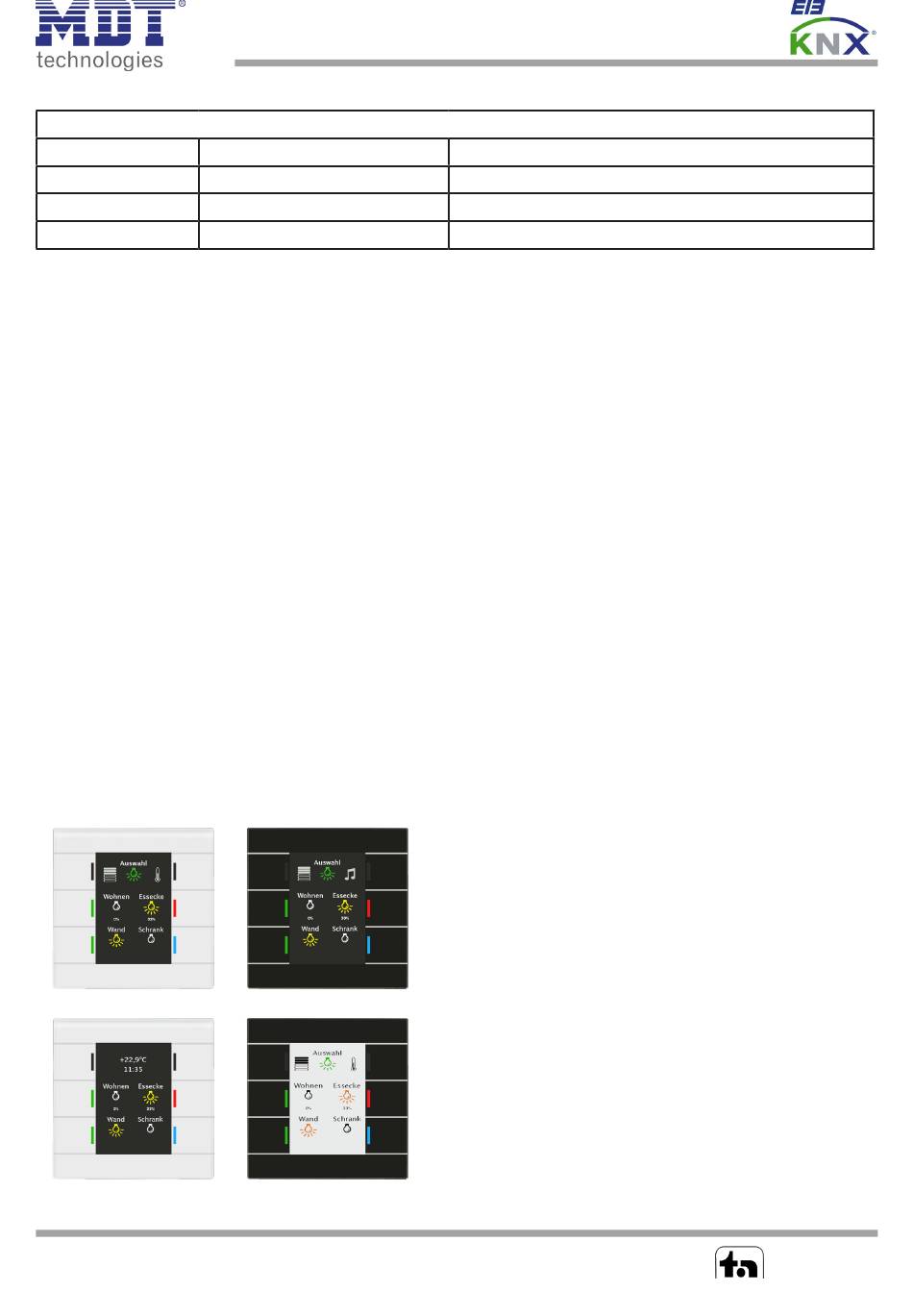

MDT Glass Push Button II Smart 2/4/6/8/12-fold , lush mounted
Version
BE-GT20W.01 Glass Push Button II Smart
BE-GT20S.01 Glass Push Button II Smart
BE-GT2TW.01 Glass Push Button II Smart
BE-GT2TS.01 Glass Push Button II Smart
The MDT Glass Push Button II Smart releases KNX telegrams after touching the sensor areas on top, 1 or 2 Button ope-
ration can be adjusted. The device provides extensive functions like switching of lighting, operation of blinds and
shutters, switching/sending values and block communication objects for each channel. The Glass Push Button has 4
integrated logical modules. The sending of an second object is possible by the logical modules.
Furthermore the MDT Glass Push Button II Smart has an integrated cleaning function and an additional switching channel
that operates if 3 or more of the sensor area were touched (e.g. slap function).
The Glass Push Button II Smart has a large, colored active display to indicate funtion and status. For each button
are symbols and plain text adjustable. The 2 buttons on top are used to enter the function levels directly, the other
4 buttons can be reserved with 2 or 3 function levels (8/12-fold). The Glass Push Button II Smart can be also used
as 6-fold push button without function levels.
The Glass Push Button II Smart offers additional functions to set temperature and operation mode of the heating.
In combination with the MDT Heating Actuator an eficient room temperature regulation can be conigured and
vizualized. Furthermore user deined 1Bit messages and 14Byte text telegrams can be indicated.
The Glass Push Button II Smart has a RGB status indicator for each sensor area. These can be set from internal or
external objects.
The Glass Push Button II Smart is a lush mounted device for ixed installations in dry rooms.
For project design and commissioning of the MDT KNX Glass Push Button II Smart it is recommended to use the ETS.
Please download the application software at www.mdt.de/downloads.html
BE-GT20W.01
BE-GT2TW.01
MDT technologies GmbH 51766 Engelskirchen
•
Tel.: + 49 - 2263 - 880 Fax: + 49 - 2263 - 4588
•
Stand: 0217
MDT Glass Push Button II Smart
BE-GT20S.01
BE-GT2TS.01
Papiermühle 1
•
knx@mdt.de www.mdt.de
• •
Flush mounted, White
Flush mounted, Black
Flush mounted, White, integrated Temperature Sensor
Flush mounted, Black, integrated Temperature Sensor
• Production in Germany, certiied according to ISO 9001
• The buttons can be adjusted for 1 or 2 button operation
• 4 buttons can be reserved with 2 or 3 function levels (8/12-fold)
• 2 buttons to enter the function levels directly
• Large, colored active display to indicate function and status
• Symbols and plain text adjustable for each button/function
• 1 or 2 button operation for switching, dimming, shutters, values
• Short/long button push with 2 objects
• RGB status for each button separate controlable from each level
• Indication of inside/outside temperature and time
• Automatic display brightness via light sensor and day/night object
• Slap function with additional switch channel
• Installation in socket, Dimensions (W x H): 92mm x 92mm
• No additional power supply require
• Integrated bus coupling unit, 3 years warranty
• Additional functions BE-GT2Tx.01 (with temperature sensor)
• With temperature sensor to measure room temperature
• Additional functions to set temperature and operating mode
• Indication of individual messages/text telegramms (1Bit/14Byte)
• Application as RTC in combination with AKH heating actuator
• RGB Status for each button controlable from each level
DIN EN ISO 9001
TAW Cert
Zert.Nr.1905606
