Activation of State values 1-3:

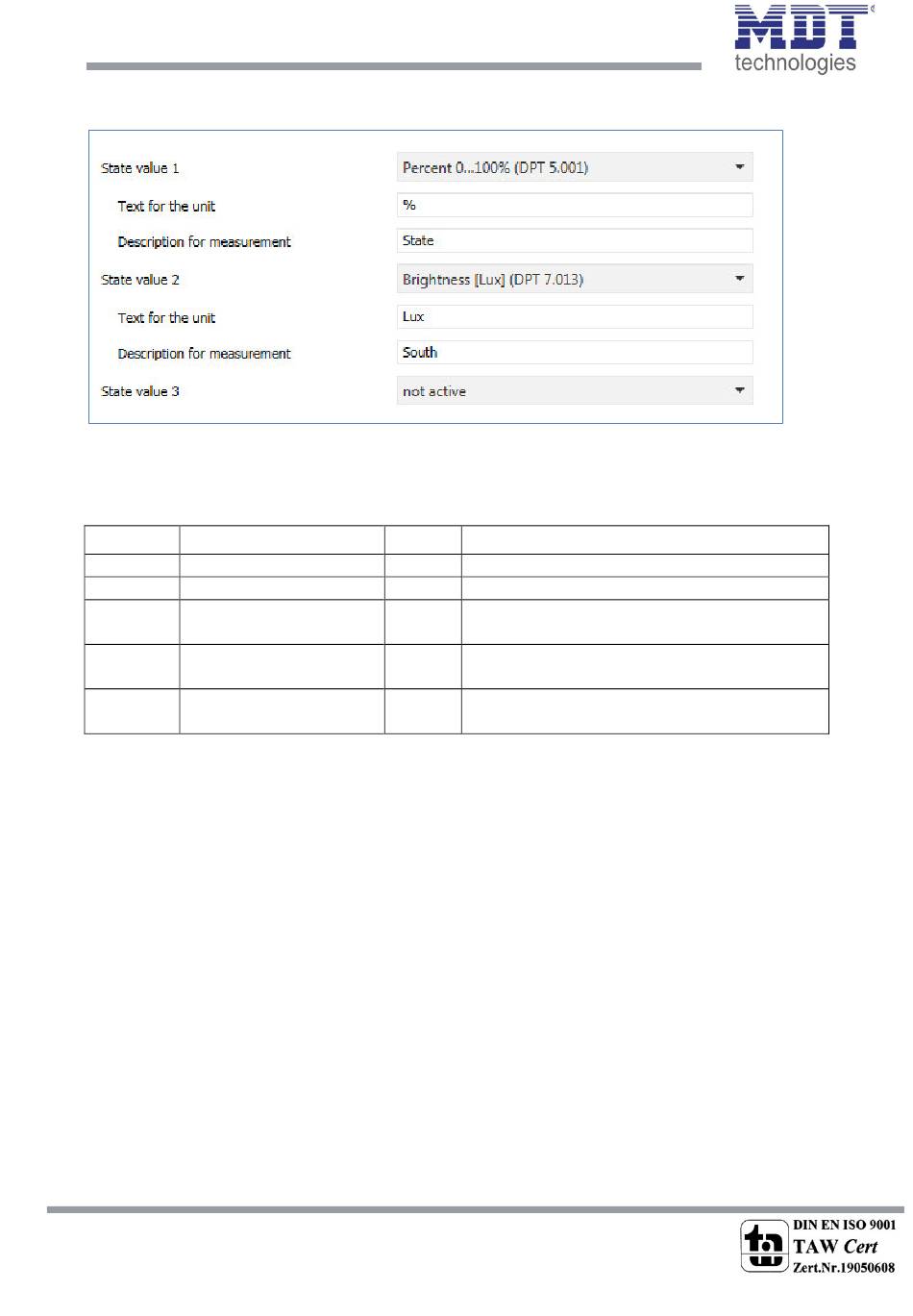

The following figure shows the settings for activating the State values 1-3:
Figure 8: Settings: State Values 1 - 3
Communication objects
The following table shows the available communication objects for the information screen:
Number Name
120 State text 1
121 State text 2
122 State value 1
123 State value 2
124 State value 3
Table 12: Communication objects - State Values/State texts
Various measured values can be displayed with unit via the status values.
By means of the status text any strings can be displayed up to a length of 14 characters..
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
36
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
Length Usage
14 Byte Receiving a status text
14 Byte Receiving a status text
Receiving a status value; DPT according to
parameter setting
Receiving a status value; DPT according to
parameter setting
Receiving a status value; DPT according to
parameter setting
