Technical Manual Glass Push Button II Smart BE-GT2xx.01
Presentation:
Single-button function
Two-button function
The parameter "display type" defines whether the dimming function should be displayed in the
normal presentation with 3 symbols or by a special symbol representing the status in percent.
Normal view:
The dimming function can be displayed with 3 freely selectable symbols and freely selectable colors.
The button evaluates the information of object 3 "State for display". In addition, the current status
can be displayed as text under the symbol:

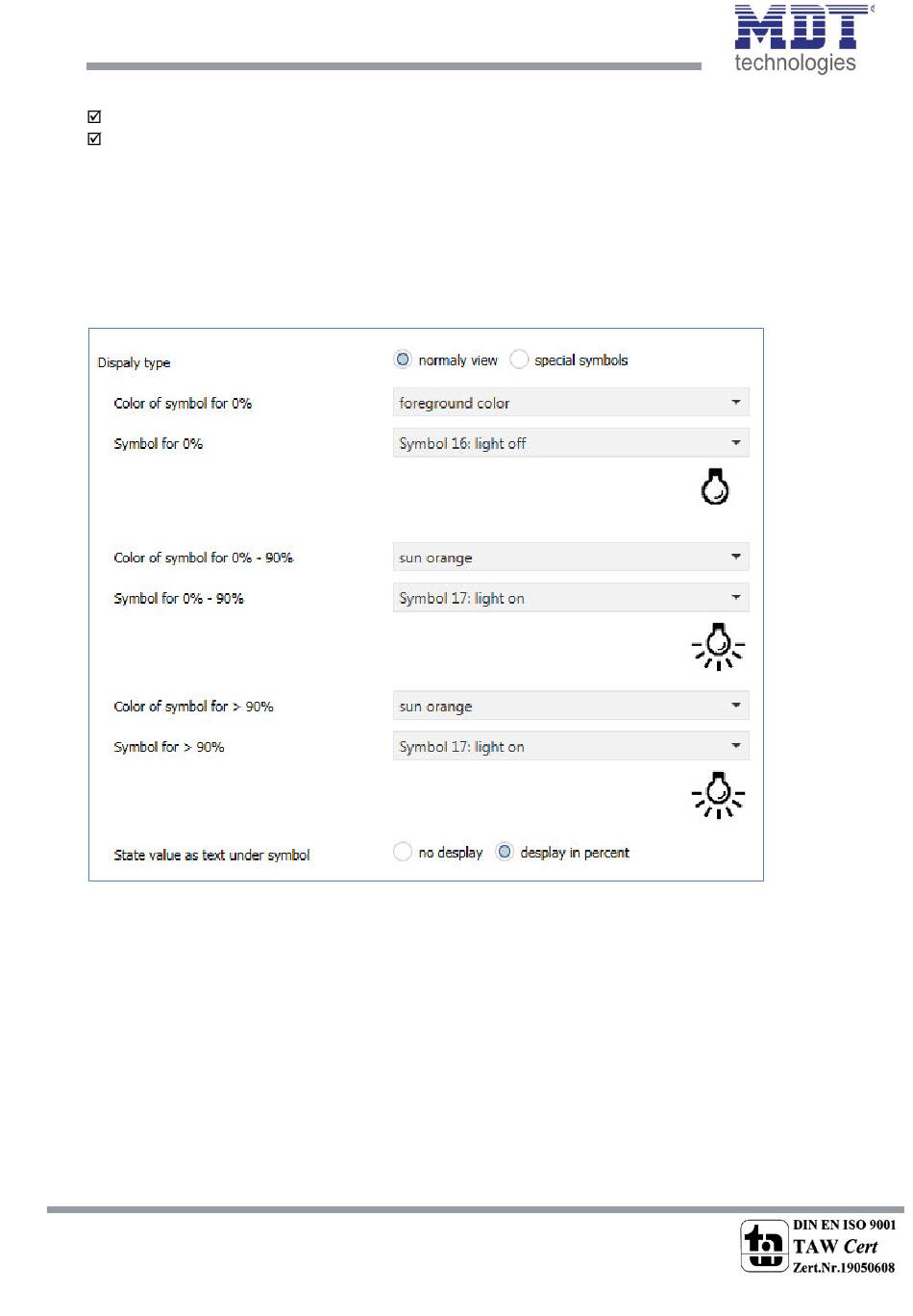

Figure 36: Normal view - Dimming
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
71
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
