Technical Manual Glass Push Button II Smart BE-GT2xx.01
The following table shows the available communication objects:
Number Name
0 Push buttons 1/2 -
percent value/decimal
value...
1 Push buttons 1/2 –
State for display
Table 34: Communitcation objects "send values" - Shift value

4.3.2.3 Send value

Single-button function
The function "Send values" - "send value" can send a fixed value according to the set datapoint type.
The following figure shows the available settings:

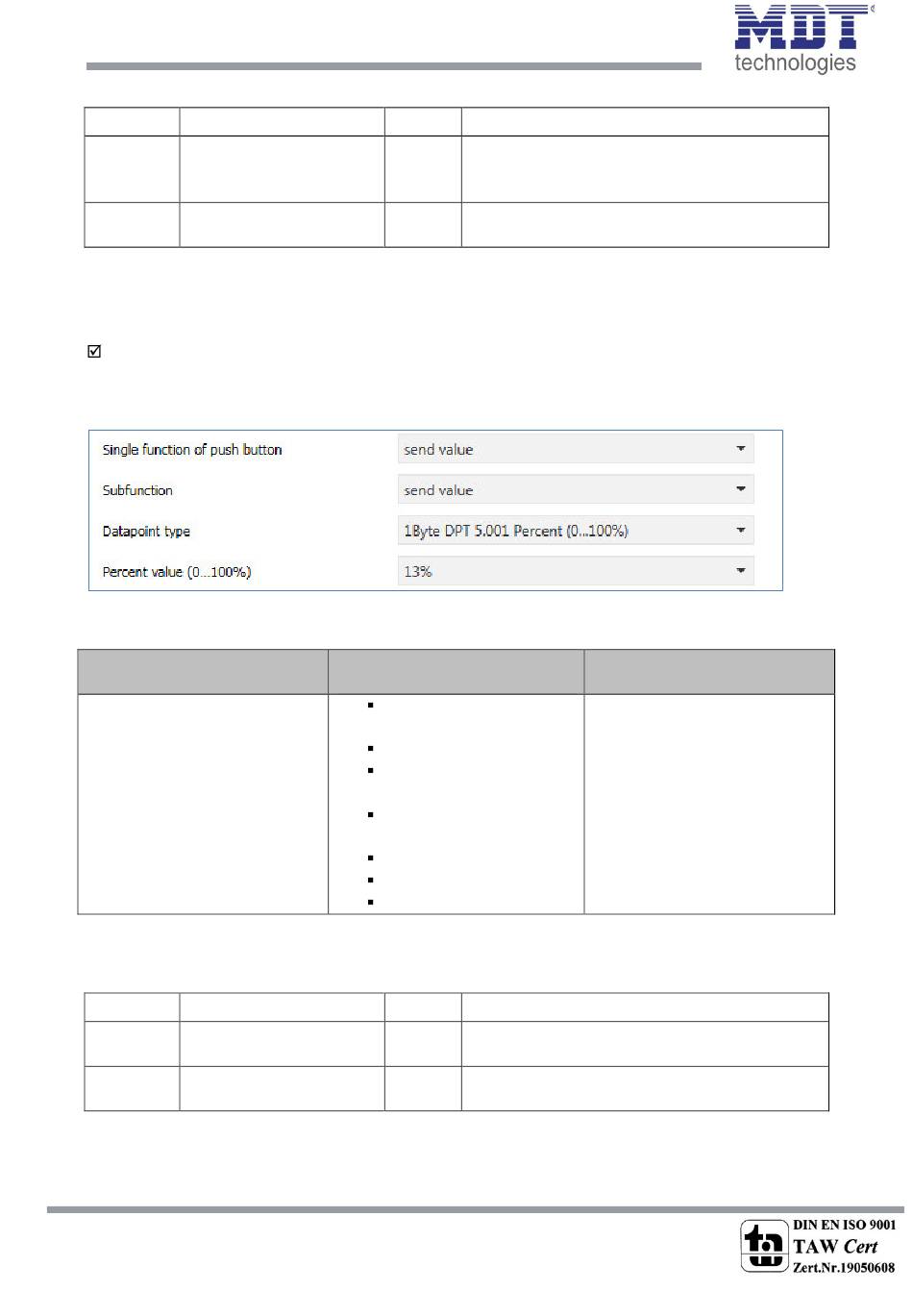

Figure 25: Settings "Send values" - send value
The table below shows all available settings:
ETS-Text
Datapoint type
Figure 26: "Send values" - send value
The value to be sent can be set according to the datapoint type.
The following table shows the available communication objects:
Number Name
0 Push button 1 – switch
control, percent value...
3 Push button 1 –
State for display
Table 35: Communication objects - "Send values" - send value
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
58
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
Length Usage
1 Byte Sending the switching value; DPT depending on
the parameter setting
1 Byte Receiving the status; DPT depending on the
parameter setting
Dynamic range
[Default value]
DPT 2.001
Switch control
DPT 5.001 Percent
DPT 5.005
Decimal factor
DPT 17.001
Scene number
DPT 9.001 Temperature
DPT 9.004 Brightness
DPT 232.600 RGB value
Length Usage
Sending the switching value; DPT depending on
the parameter setting
Receiving the status; DPT depending on the
parameter setting
Comment
Sets the data point type to be
sent
