4.2.2 Level setting

If the display mode is set to "4 functions / several levels", the submenu "Level settings" is displayed.

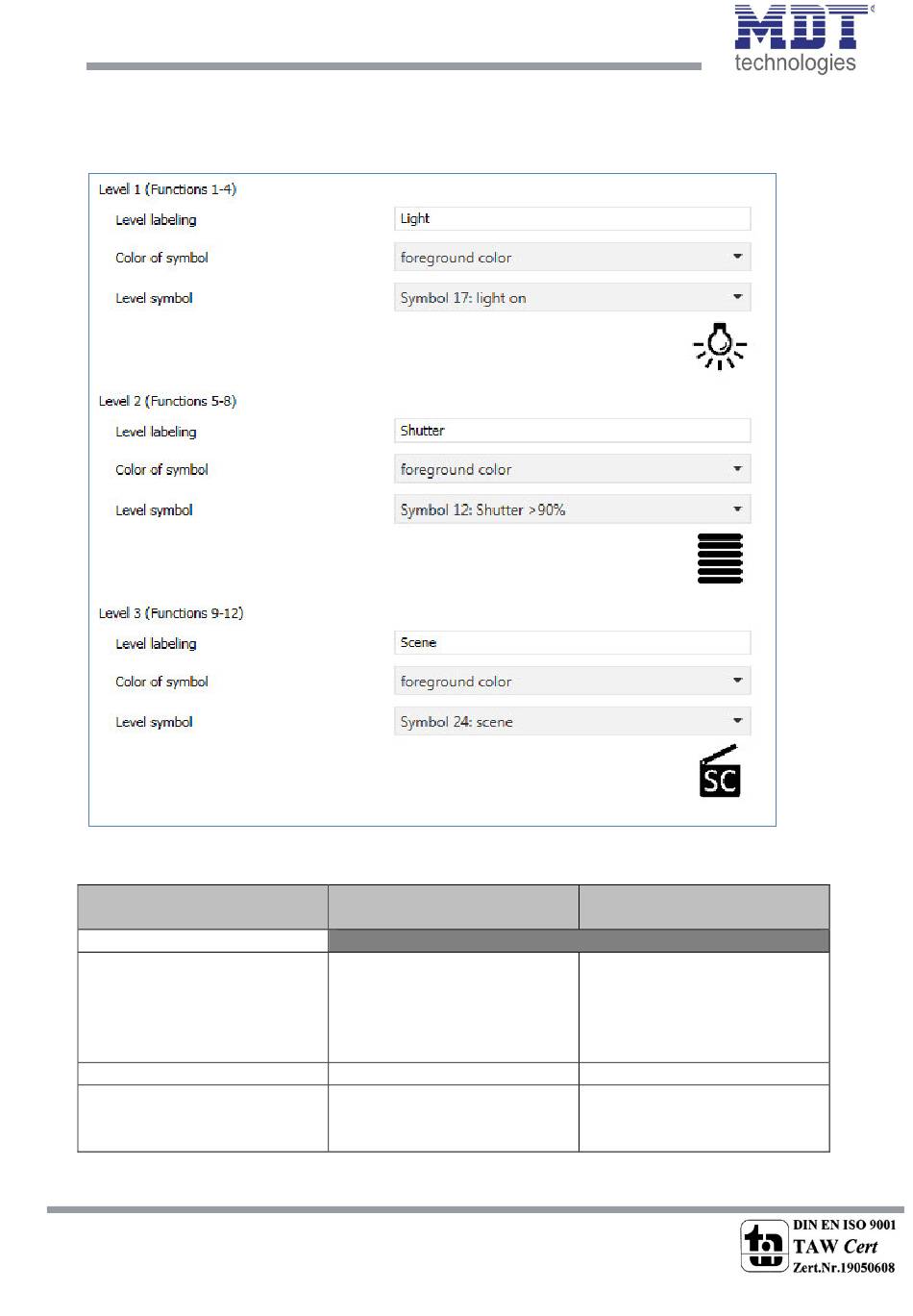

The following figure shows the available settings for the individual levels:
Figure 11: Settings: Menu "Level setting"
The following table shows the available settings:
ETS-Text
Level 1-3
Level labeling
Color of symbol
Level symbol
Table 19: Menu "Level settings"
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
42
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
Dynamic range
[Default value]
any text
any color
all loaded symbols
Comment
Setting the text for the
respective level; Maximum text
length is 15 characters.
The text is displayed above the
level symbol
Sets the color for the symbol
Setting of the symbol to be
displayed for the appropriate
level
