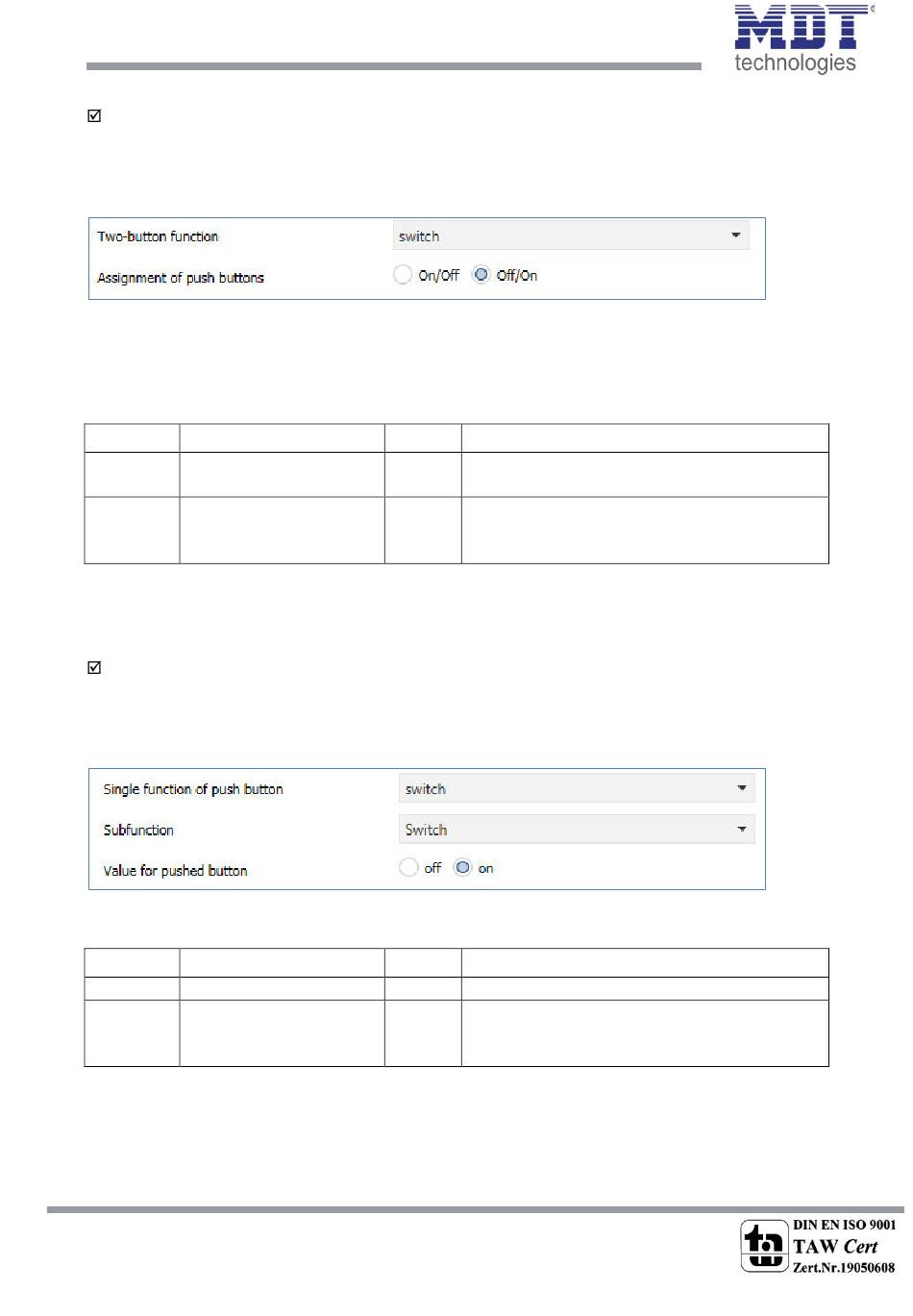

Technical Manual Glass Push Button II Smart BE-GT2xx.01

4.3.1.1 Switch with the two-button function

Two-button function
In the case of the two-button function, the respective value (On/Off) can be assigned to the left and
right buttons. Thus, the left and right buttons sends a set fixed value.
The following figure shows the available settings for the two-button function "switch":
Figure 15: Settings: Two-button function - Switch
Button assignment On / Off: The left button sends the value On and the right button the value Off.
Button assignment Off / On: The left button sends the value Off and the right button the value On.
The following table shows the available communication objects:
Number Name
0 Push buttons 1/2 –
switch
3 Push buttons 1/2 –
State for display
Table 25: Communication objects - Two-button function

4.3.1.2 Sub-function: Switch

Single-button function
With the single-button function "switch" - Sub-function: switch, the button sends the respective fixed
value when pressed.
The following figure shows the available settings:
Figure 16: Settings: Single-button function "switch" - switch
The following table shows the available communication objects:
Number Name
0 Push button 1
3 Push button 1 –
State for display
Table 26: Communication objects Single-button function "switch" - switch
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
48
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
Length Usage
1 Bit Switch function of the buttons
1 Bit State to refresh the display/symbol on the
button; has to be connected to the state of the
actuator to be switched
Length Usage
1 Bit Switch function of the button
1 Bit State to refresh the display/symbol on the
button; has to be connected to the state of the
actuator to be switched
