4.3.2.4 Send value after state

Single-button function
The function "Send values - Send value after state" can send a fixed value according to the set
datapoint type and when the key is released a fixed value according to the set datapoint type.
The following figure shows the available settings:

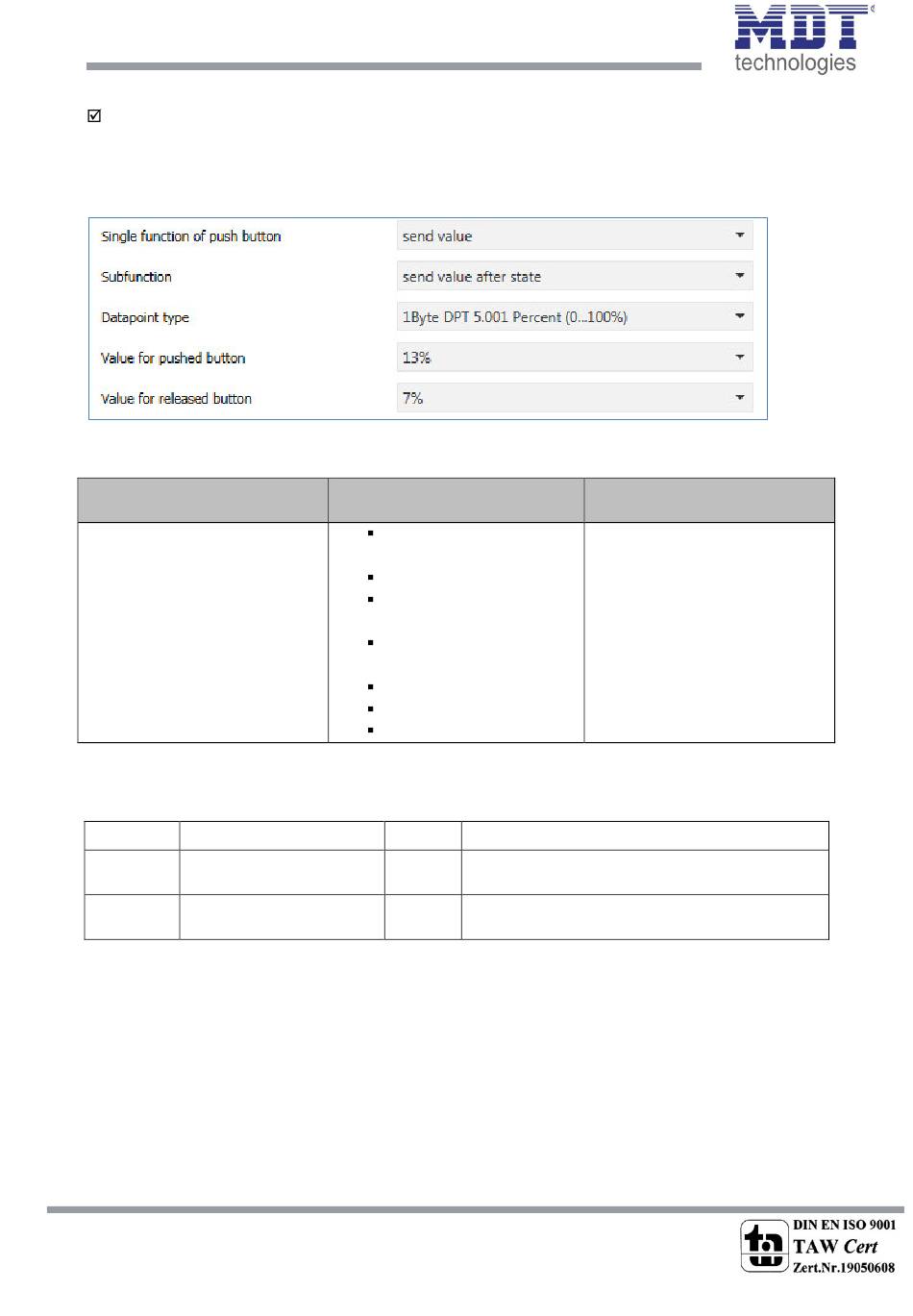

Figure 27: Settings "Send value" - "Send value after state"
The following table shows all available settings:
ETS-Text
Datapoint type
Table 36: "Send value" - "Send value after state"
The value to be sent can be set according to the set datapoint type for pressing and releasing the key.
The following table shows the available communication objects:
Number Name
0 Push button 1 – switch
control, percent value...
3 Push button 1 – State for
display
Table 37: Communication objects "Send value" - "Send value after state"
