Technical Manual Glass Push Button II Smart BE-GT2xx.01

4.3.1.7 Presentation on display

Single-button function
Two-button function
The switching function can display the two possible states (on/off) by freely selectable symbols with
a freely selectable color. Though the evaluated status is visualized:

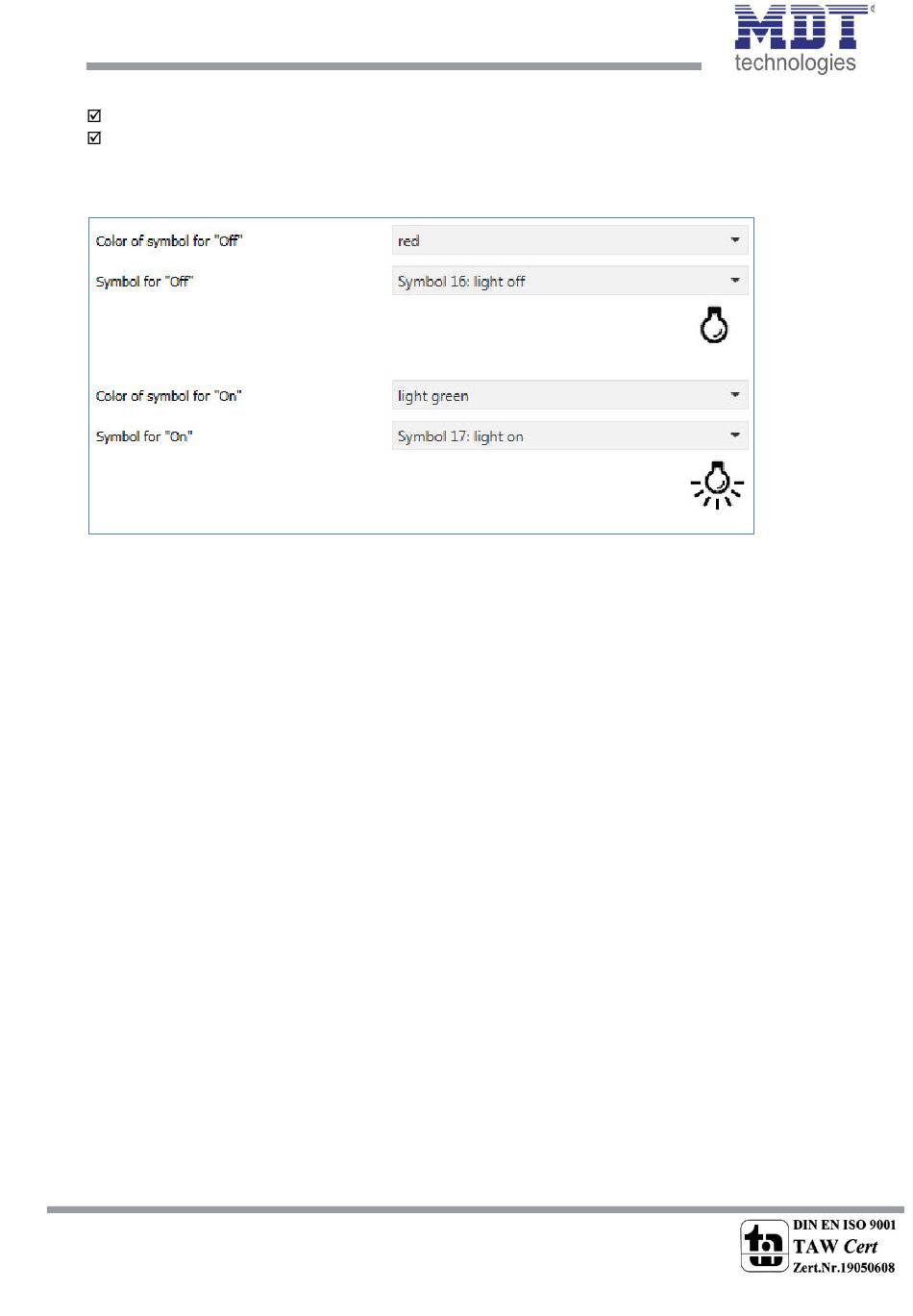

Figure 22: Presentation of switch-function on display
