Technical Manual Glass Push Button II Smart BE-GT2xx.01

4.3.1.3 Sub-function: Toggle

Single-button function
With the single button function "Switch" - Subfunction: Switch, the key sends the respective inverted
value with respect to the last received status value.For this purpose, the status object "value for
toggle" has to be connected with the status of the actuator to be switched. If an "on" signal has been
received as last value, the push button sends an "off" command at the next keystroke and vice versa..
The following figure shows the available settings:

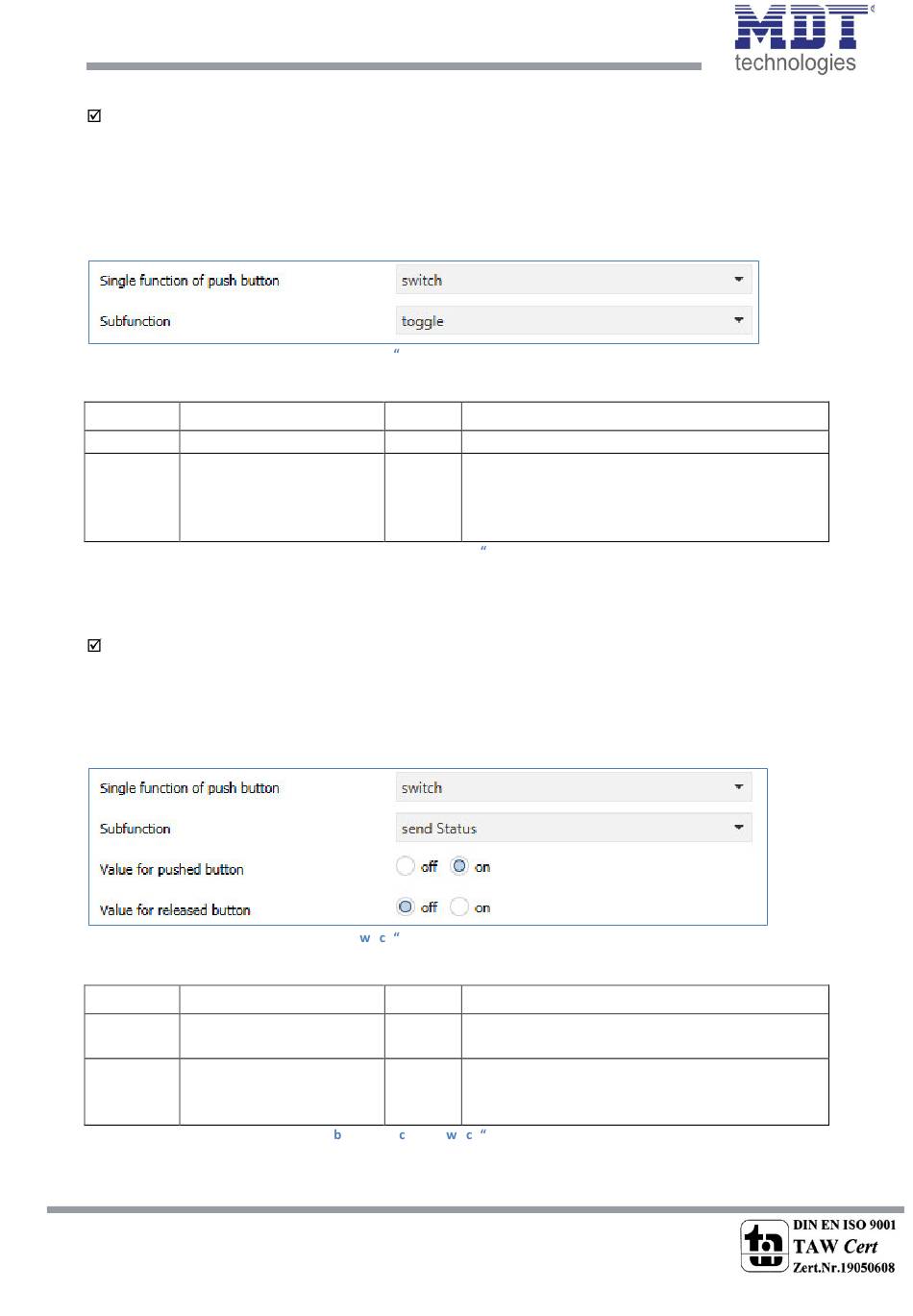

Figure 17: Settings: Single-button function „Switch - Toggle
The following table shows the available communication objects:
Number Name
0 Push button 1 – switch
1 Push button 1 –
Value for toggle
Table 27: Communication objects Single-button function „Switch - Toggle

4.3.1.4 Sub-function: Send status

Single-button function
With the single button function "Switch" - Subfunction: Send status, fixed values for an activated key
(rising edge) and a released key (falling edge) can be sent. With this function, scanning applications
can be realized.
The following figure shows the available settings:
Figure 18: Settings: Single-button function „" it h - send status
The following table shows the available communication objects:
Number Name
0 Push button 1 – send
status
3 Push button 1 –
State for display
Table 28: Communication objects Single- utton fun tion „" it h - send status
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
49
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
Length Usage
1 Bit Switch function of the button
1 Bit Status to refresh the display/symbol on the
button; has to be connected to the status of
the actuator to be switched so that the correct
(inverted) value is always transmitted
Length Usage
1 Bit Switch function of the button
1 Bit State to refresh the display/symbol on the
button; has to be connected to the state of the
actuator to be switched
