4.5.2.1 Logic 1-4 submenu

A submenu is activated for each activated logic. Up to 2 external logic objects and up to 2 buttons
can be integrated into the logic operation.
The following figure shows the corresponding settings:

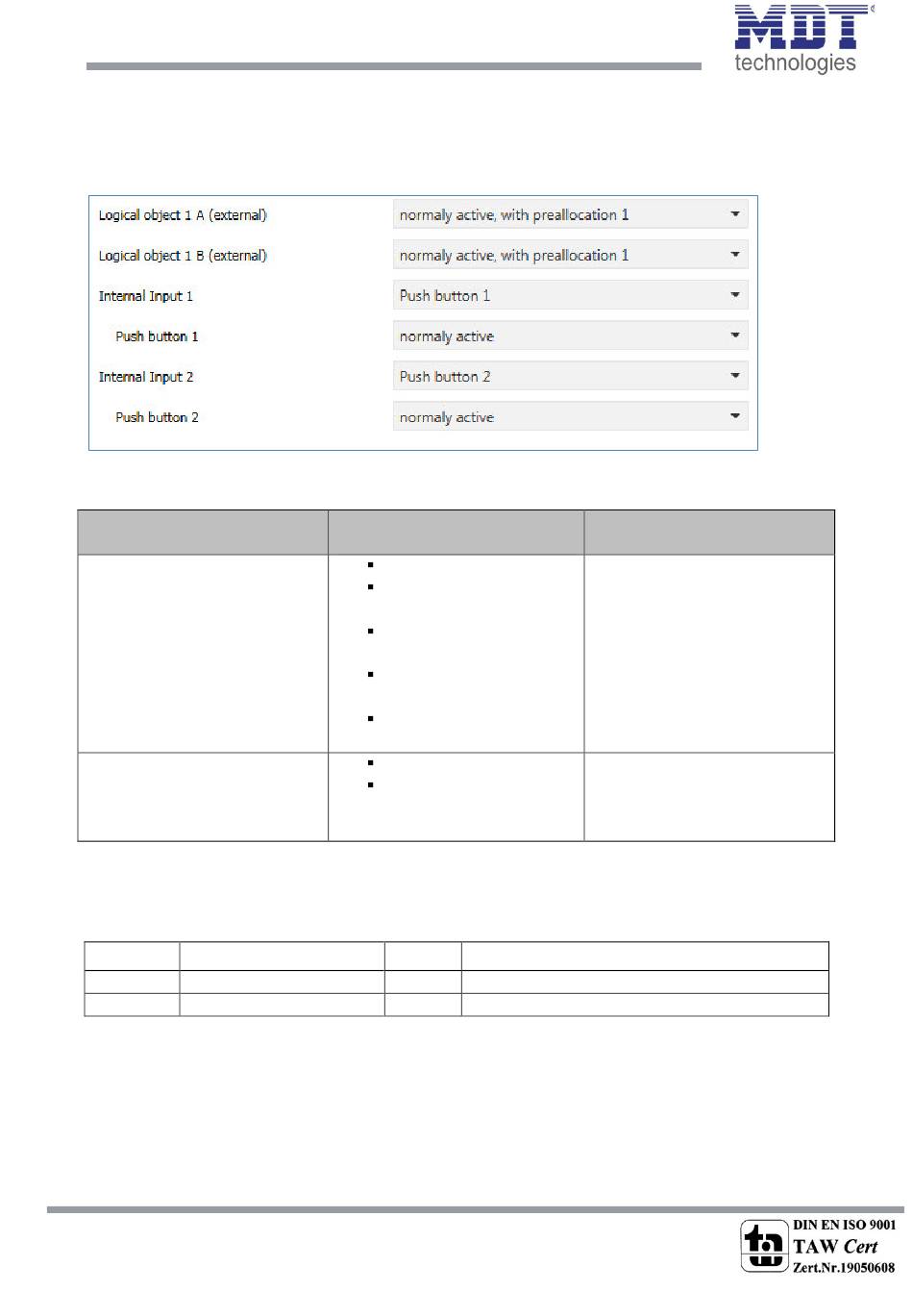

Figure 48: Settings "Logic 1-4" - Submenu
The table below shows all available settings:
ETS-Text
Logical object 1 A/B (external)
Internal Input 1 / 2
Figure 49: Settings - Activation of Logic inputs
Depending on the activated inputs of the logic operations, the corresponding communication objects
are displayed:
Number Name
65 Logic – Input 1 A
66 Logic – Input 1 B
Table 75: Communication objects - Inputs Logic 1-4
For each external logic input, a communication object is shown, which can be connected to any other
communication object of the size 1 bit, e.g. the status of an actuator.
Further, the logic operation can respond to the operation of the keys.
Each logic input can be either normal or inverted.
