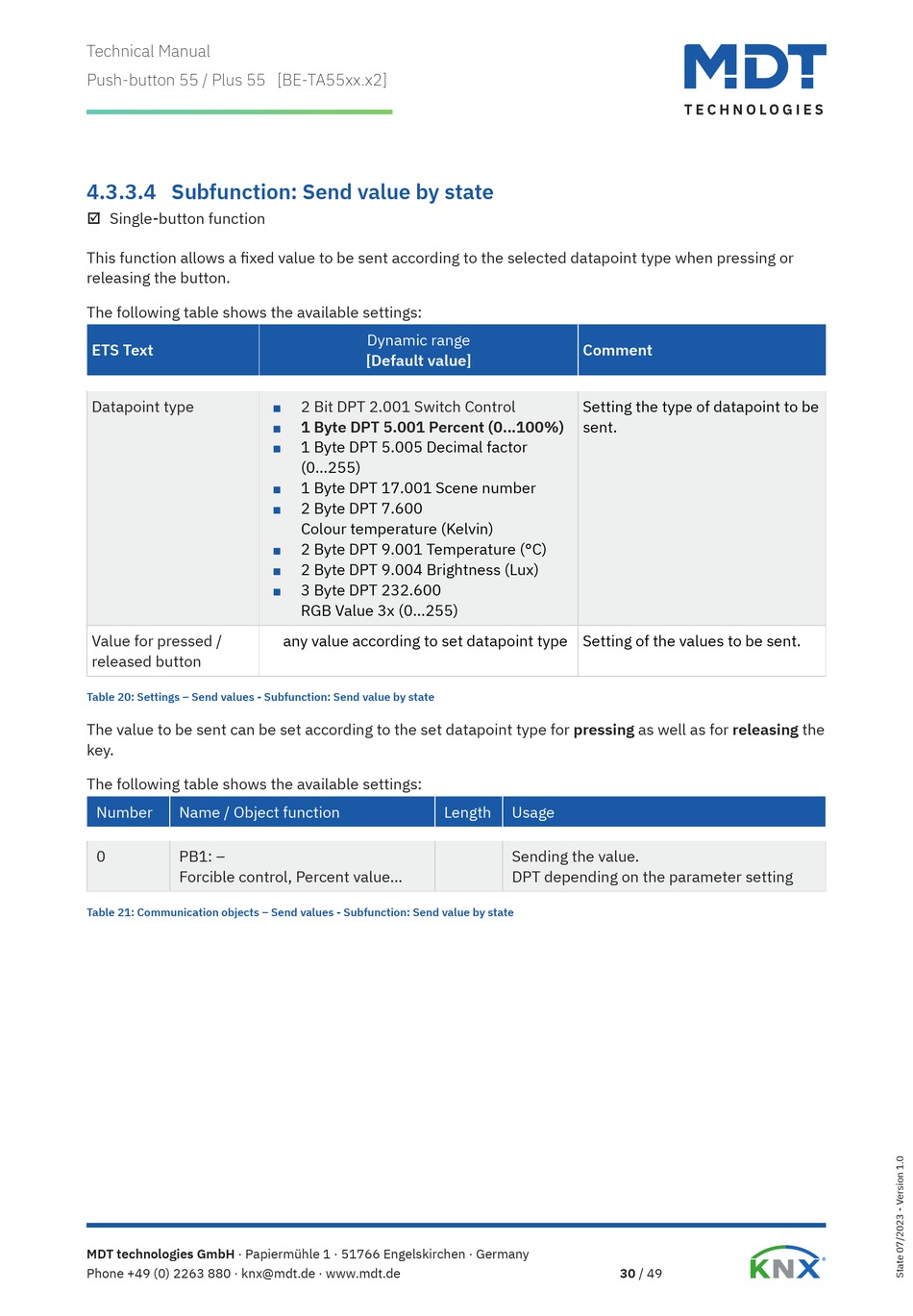

Subfunction: Send Value By State - MDT Push Button 55 Technical Manual

Technical Manual
Push-button 55 / Plus 55 [BE-TA55xx.x2]

4.3.3.4 Subfunction: Send value by state

; Single-button function
This function allows a fixed value to be sent according to the selected datapoint type when pressing or
releasing the button.
The following table shows the available settings:
ETS Text
Datapoint type
Value for pressed /
released button
Table 20: Settings – Send values - Subfunction: Send value by state
The value to be sent can be set according to the set datapoint type for pressing as well as for releasing the
key.
The following table shows the available settings:
Number Name / Object function
0 PB1: –
Forcible control, Percent value...
Table 21: Communication objects – Send values - Subfunction: Send value by state
MDT technologies GmbH · Papiermühle 1 · 51766 Engelskirchen · Germany
Phone +49 (0) 2263 880 · knx@mdt.de · www.mdt.de
Dynamic range
[Default value]
2 Bit DPT 2.001 Switch Control
■
1 Byte DPT 5.001 Percent (0...100%)
■
1 Byte DPT 5.005 Decimal factor
■
(0...255)
1 Byte DPT 17.001 Scene number
■
2 Byte DPT 7.600
■
Colour temperature (Kelvin)
2 Byte DPT 9.001 Temperature (°C)
■
2 Byte DPT 9.004 Brightness (Lux)
■
3 Byte DPT 232.600
■
RGB Value 3x (0...255)
any value according to set datapoint type Setting of the values to be sent.
Length
Comment
Setting the type of datapoint to be
sent.
Usage
Sending the value.
DPT depending on the parameter setting
30 / 49
