Fitting the weld-
IMPORTANT! The wire electrode must be threaded in when fitting the welding torch wear-
ing torch wearing
ing parts.
parts
1
1

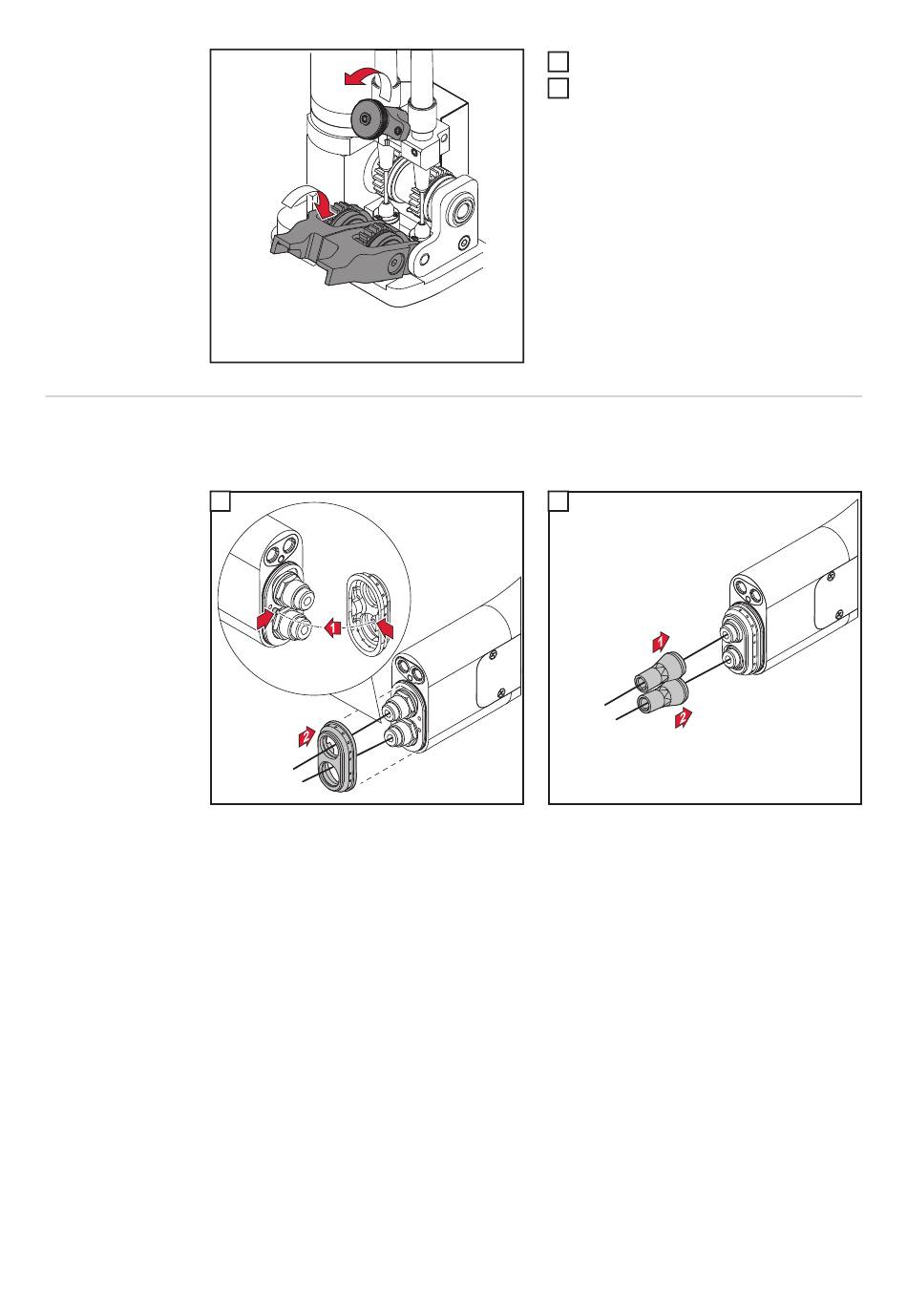

Fit the gas distributor
*
62
1 1
1 0
IMPORTANT! When fitting the gas distributor, ensure that the recess on the gas
distributor is positioned above the raised element on the welding torch.
Swing in the feed rollers
19
Push the pressure lever downwards
20
2
2
Screw in the contact tip adapter
(8 mm box spanner)
Tightening torque = 5 Nm
