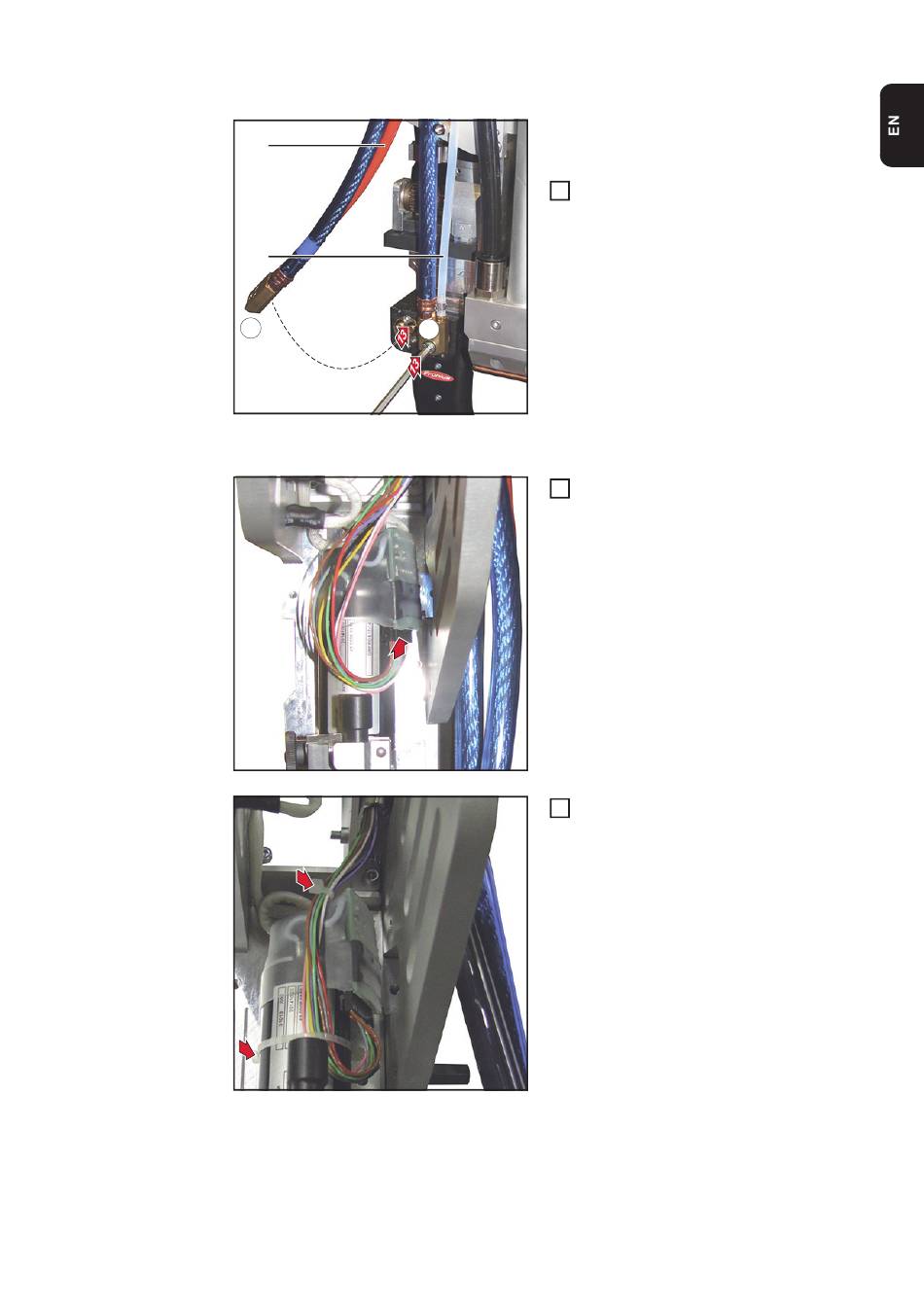

Connecting the media couplings
(3)
(2)
T
Connecting the motor line
1 4
1 5
1 5
IMPORTANT! Grease the screws before
connecting the media couplings.
Fit the two media couplings using an
13
Allen screw
(5 mm)
Tightening torque = 8 Nm
Power/coolant cable with transparent
hose (2):
Connection for lead electrode (L)
L
Power/coolant cable with red hose (3):
Connection for trail electrode (T)
Plug in the connector on the motor
14
Secure the cables to the motor using
15
cable ties
