Standard fieldbus The following standard fieldbus systems can be used to connect to the robot control for
systems Twin processes:
-
-
-
-
-
Signals must be connected logically by the robot control when standard fieldbus systems
are used. Two identical standard fieldbus systems are required for two power sources. The
two standard fieldbus systems are fitted to the power sources. The robot control is connect-
ed to the power sources via the fieldbus.
No.
(1)
(2)
(3)
(4)
DeviceNet fieldbus robot interface
CanOpen fieldbus robot interface
Interbus CU fieldbus robot interface
Interbus LWL fieldbus robot interface
Profibus 1.5 MB fieldbus robot interface
Part/device
Fieldbus connection
Standard fieldbus system
Fieldbus connection
Standard fieldbus system
(8)

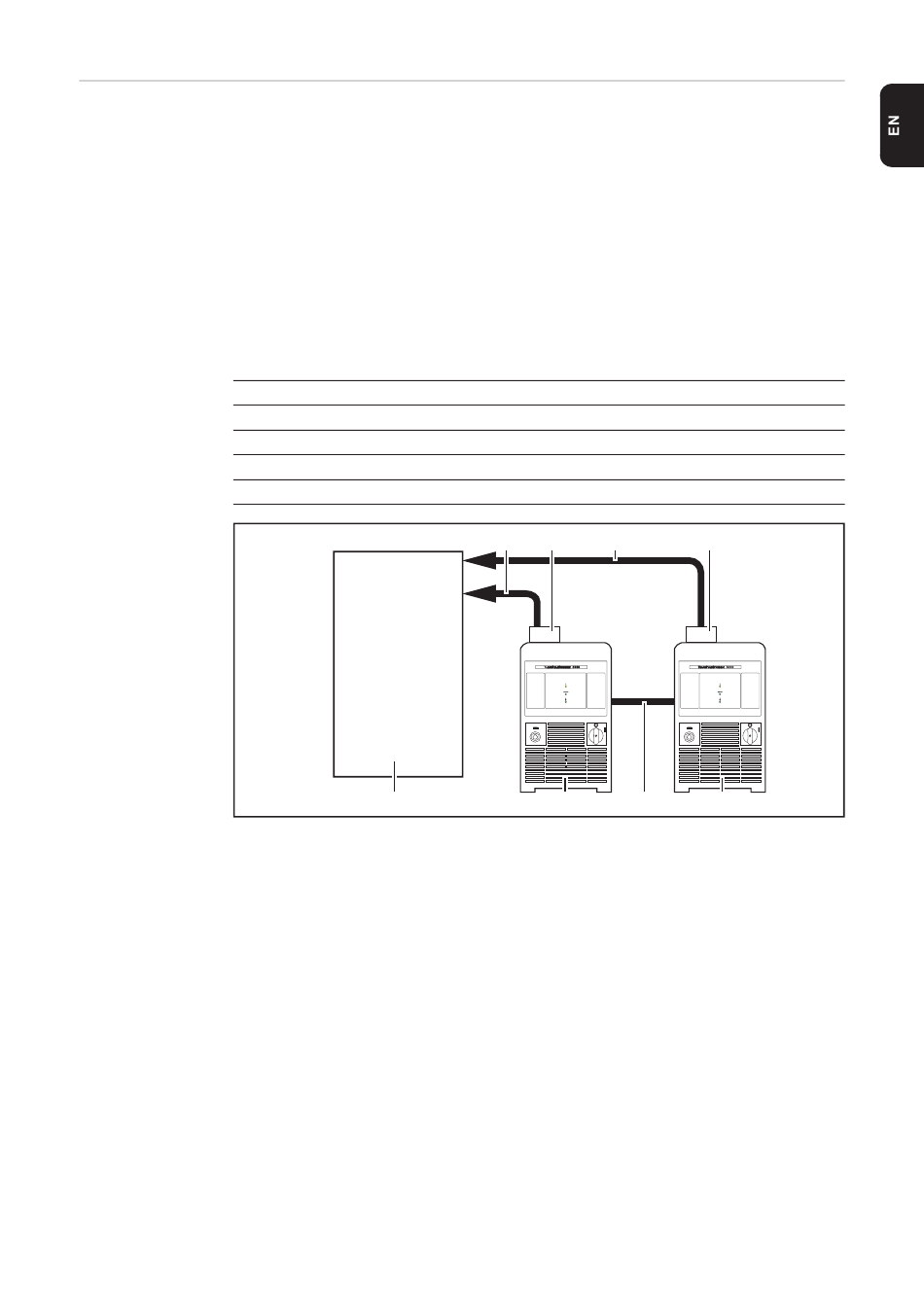

Application example:
No. Part/device
(5) Power source
(6) LHSB-HUB
(7) Power source
(8) Robot control
(1) (2) (3)
(7) (6)
(4)
(5)
