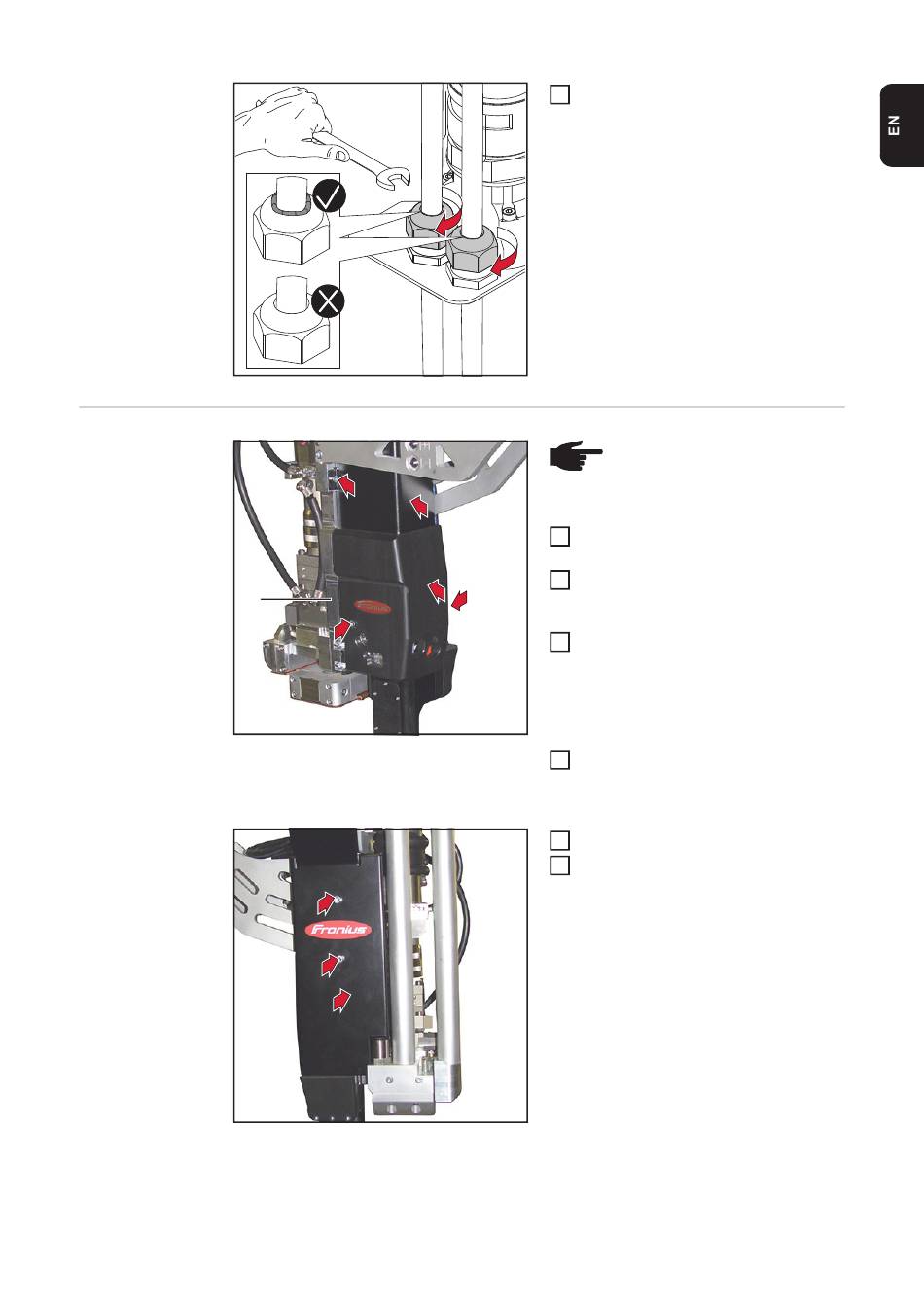

Tighten the hexagon nuts until the sea-
3
ling lip protrudes
(24 mm)
NOTE! When fitting the covers en-
sure that cables are not trapped,
crushed or damaged in any way.
Insert the motor cover into the side
1
recesses
Secure the motor cover using an Allen
2
screw
(3 mm)
Position the drive roller cover
3
IMPORTANT! The drive roller cover
must be positioned without gaps bet-
ween it and the mounting plate (1).
Secure the drive roller cover using two
4
Allen screws
(3 mm)
Position the media cover
5
Secure the media cover using two Al-
6
len screws
(4 mm)
