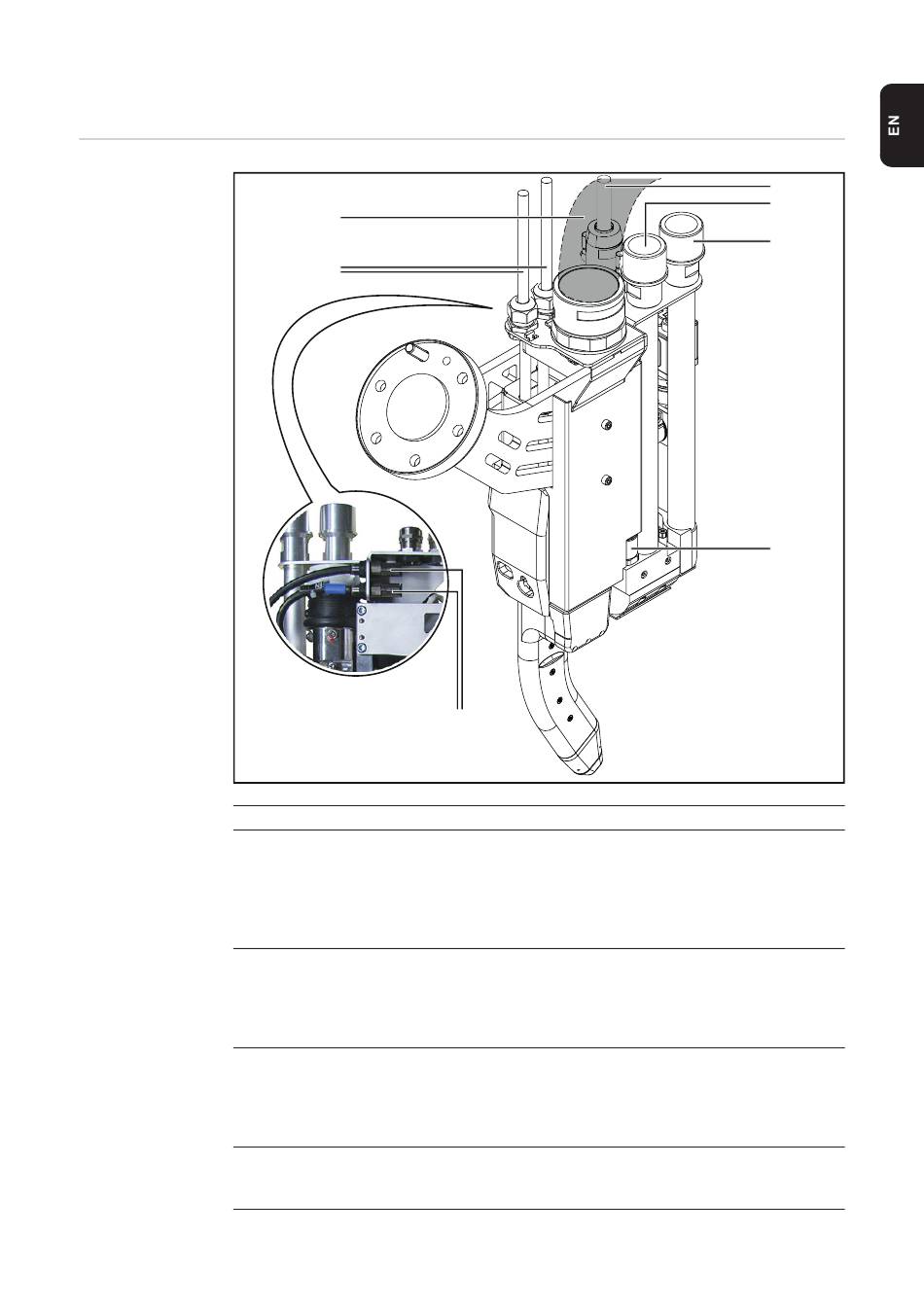

Connection specifications

Connection spec-
ifications
Item
(1)
(2)
(3)
(4)
(7)
(6)
(5)
Designation
Fibre optic cable for laser
Bending radius > 100 mm
IMPORTANT! Only use a fibre optic cable with fibres of </= 0.3 mm.
Larger fibres can affect the welding result and cause damage to the laser welding
head.
Crossjet outlet air connection
For connecting a hose matching the following specifications:
- Internal diameter Di = 50 mm
- Max. length = 10 m
- Crossjet outlet air 170 m³/h
Additional extractor connection,
for connecting a hose matching the following specifications:
- Internal diameter Di = 40 mm
- Max. length = 10 m
- Required extraction capacity 60 m³/h
Crossjet compressed air connection
(of LaserHybrid interconnecting hosepack)
- Operate at 6 bar with and with a volumetric flow of 60 m³/h
(1)
(2)
(3)
(4)
