Replace The Welding Torch - Fronius LaserHybrid Ultracompact Twin Operating Instructions Manual

Replace the weld-
ing torch
T
L
3
3
3
4
4

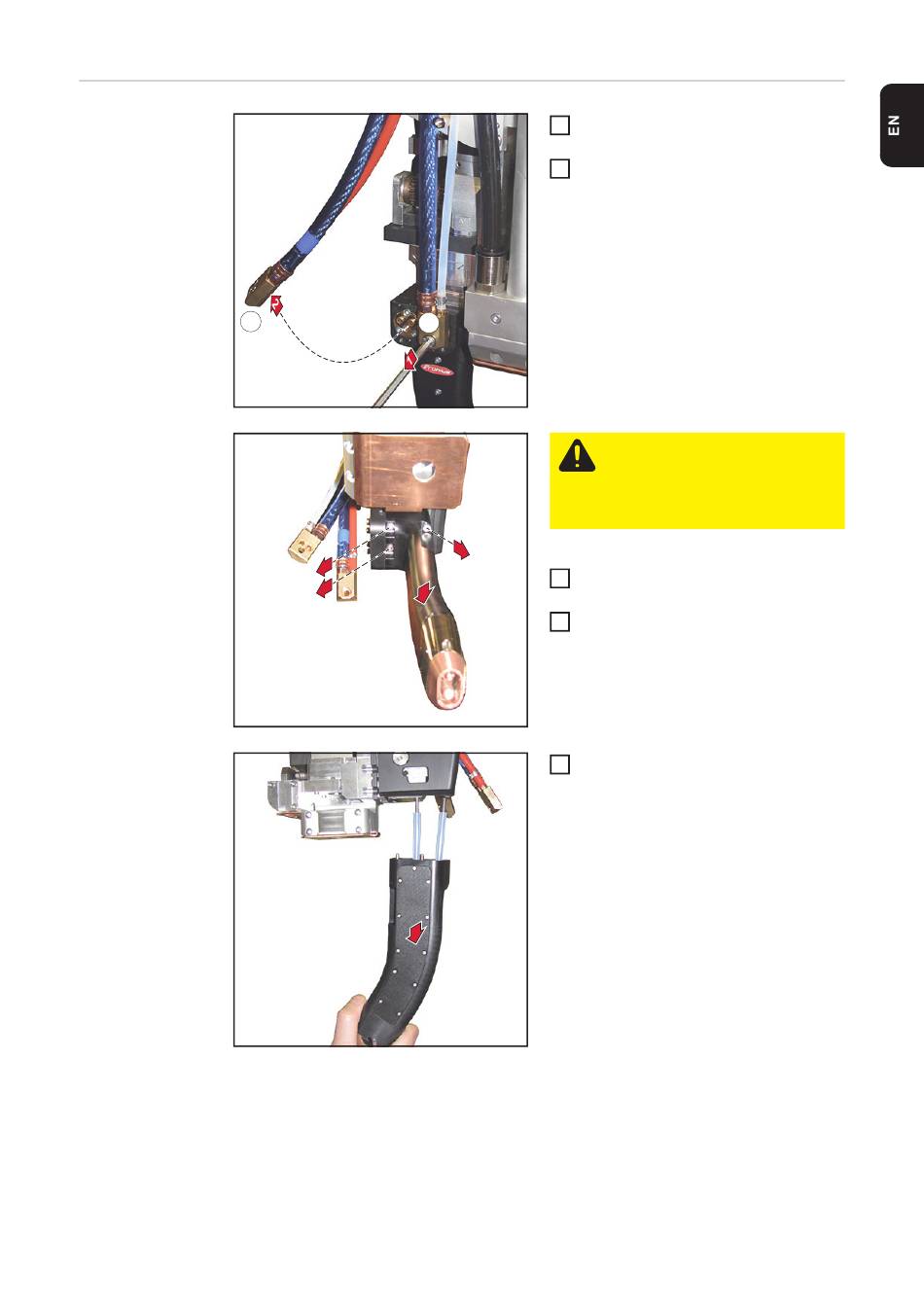

Remove the two Allen screws
1
(5 mm)
Disconnect the two media couplings
2
L = Lead electrode
T = Trail electrode
CAUTION! Risk of damage due to
falling parts!
Ensure that the welding torch
does not fall when undoing the
screws.
Cut off the wire electrodes in front of
3
the gas nozzle
Remove the three Allen screws from
4
the underside of the welding torch
(3 mm)
Tightening torque when fitting:
2 Nm
Pull the welding torch with welding
5
torch inner liners downwards
Installation in the reverse sequence
IMPORTANT! When fitting the welding
torch:
- The wire electrodes for guiding the
welding torch inner liners must be
threaded in
- Ensure that the O-rings are present on
the current interface and in a suitable
condition
89
