Application areas

The LaserHybrid Ultracompact Twin laser welding head is primarily used in laser-MAG ap-
plications:
-
-
Other application areas:
-
-
-
-
-

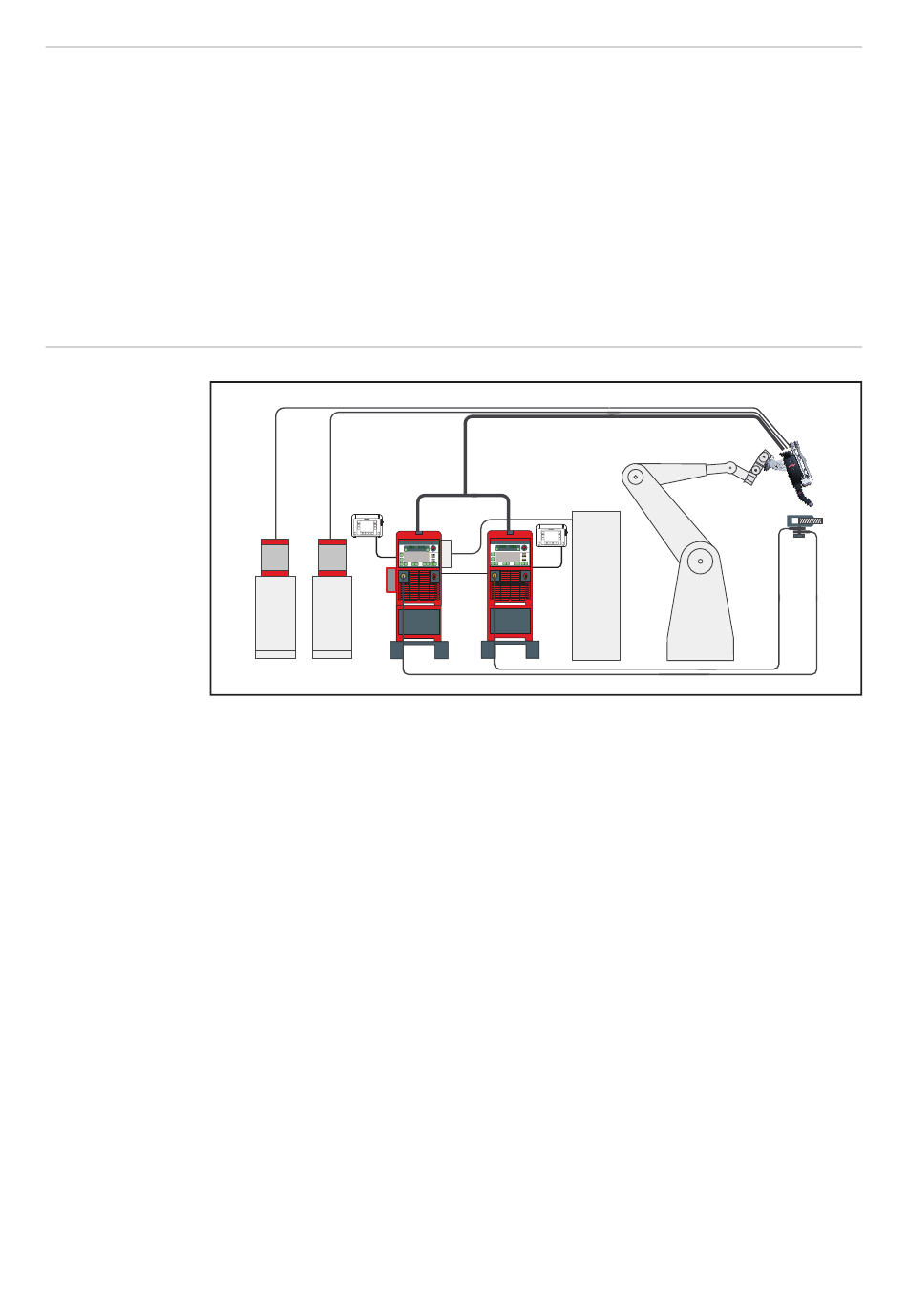

System overview

(1)
(2)
(3)
(4)
22
For axle and bodywork production with sheet thicknesses of 1 - 4 mm in the motor ve-
hicle industry
For tank and boiler manufacturing
In rolling stock manufacturing for longitudinal seams and profiles
In shipbuilding for fillet welds and profiles
In vehicle manufacturing for lap joints and welding of wheel rims
In container construction for lap joints and circumferential welds
For edge welds on lifting gear
(4)
(2)
(1) (1)
(3)
Welding wire drum
Unreeling wirefeeders:
WF 25i REEL R /SA/2R/G/W
+ OPT/i WF wire straightening
section (4,100,880,CK)
Lead power source
+ Twin DeviceNet Interface
+ LHSB connection option
+ LHSB connection cable
+ Software activation
+ Software update from the
Fronius database
+ Drive Easy Twin control box
+ FK 9000 R cooling unit / part 1
+ RCU 5000i remote control
+ Upright console (secured)
Wirefeeding hoses
(7)
(8)
(9)
(5)
(6)
(5) LHSB cable connection between
the power sources
(6) Trail power source
+ LHSB connection option
+ Software activation
+ Software update from the
+ FK 9000 R cooling unit / part 2
+ RCU 5000i remote control
+ Upright console (secured)
(7) LaserHybrid Ultracompact Twin
hosepack
(8) Fieldbus
(9) Robot control
(10) Robot
(11) CrashBox
(12) LaserHybrid Ultracompact Twin
laser welding head
(11)
(10)
Fronius database
(12)
