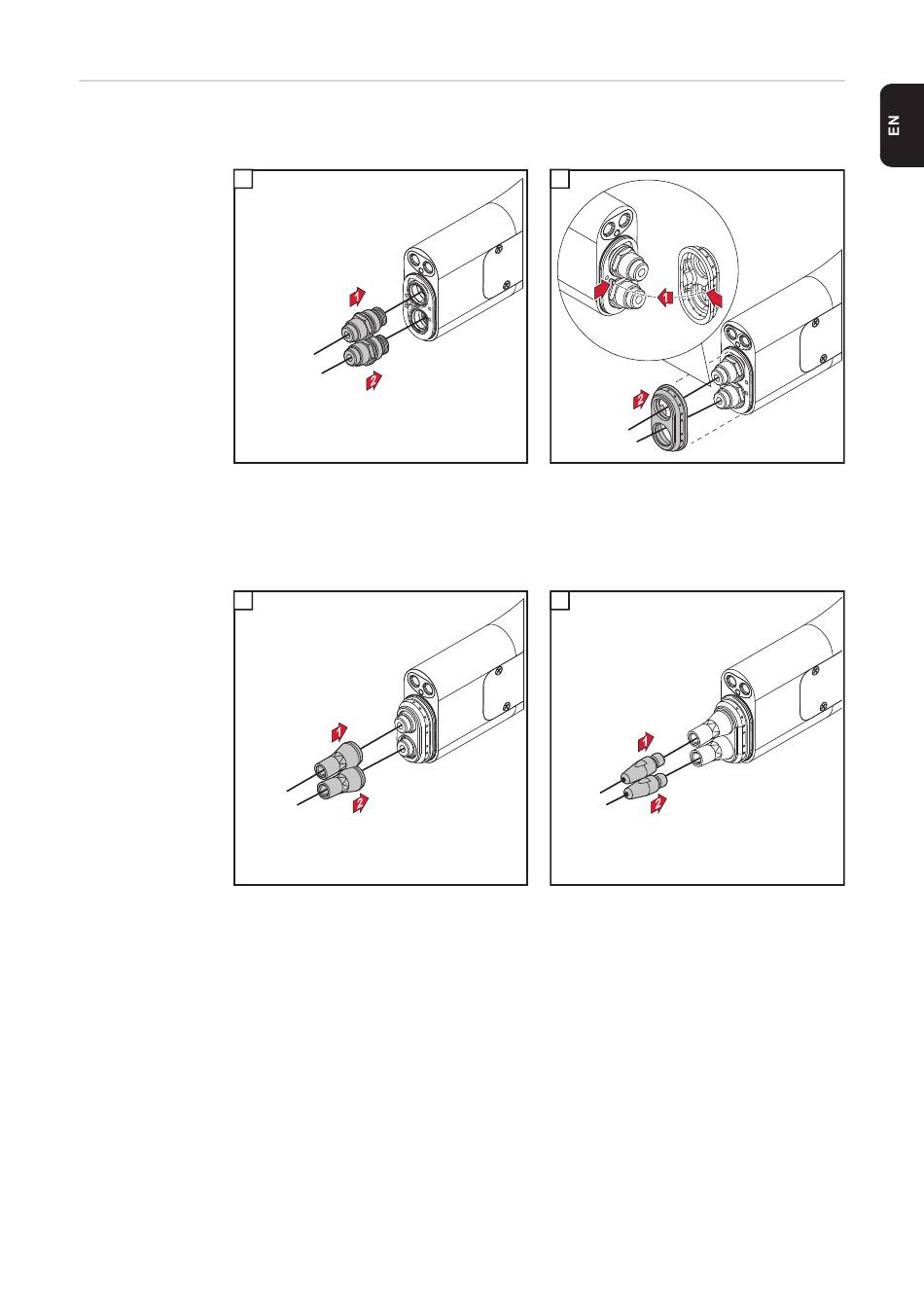

Fitting the weld- IMPORTANT! The wire electrode must be threaded in when fitting the welding torch wear-
ing torch wearing ing parts.
parts
1
1
Screw in the nozzle fittings
(11 mm box spanner)
Tightening torque = 6 Nm
*
1
3
Screw in the contact tip adapter
(8 mm box spanner)
Tightening torque = 5 Nm
IMPORTANT! When fitting the gas distributor, ensure that the recess on the gas
distributor is positioned above the raised element on the welding torch.
2
2
Fit the gas distributor
2
4
Screw in the contact tips
(7 mm box spanner)
Tightening torque = 4 Nm
