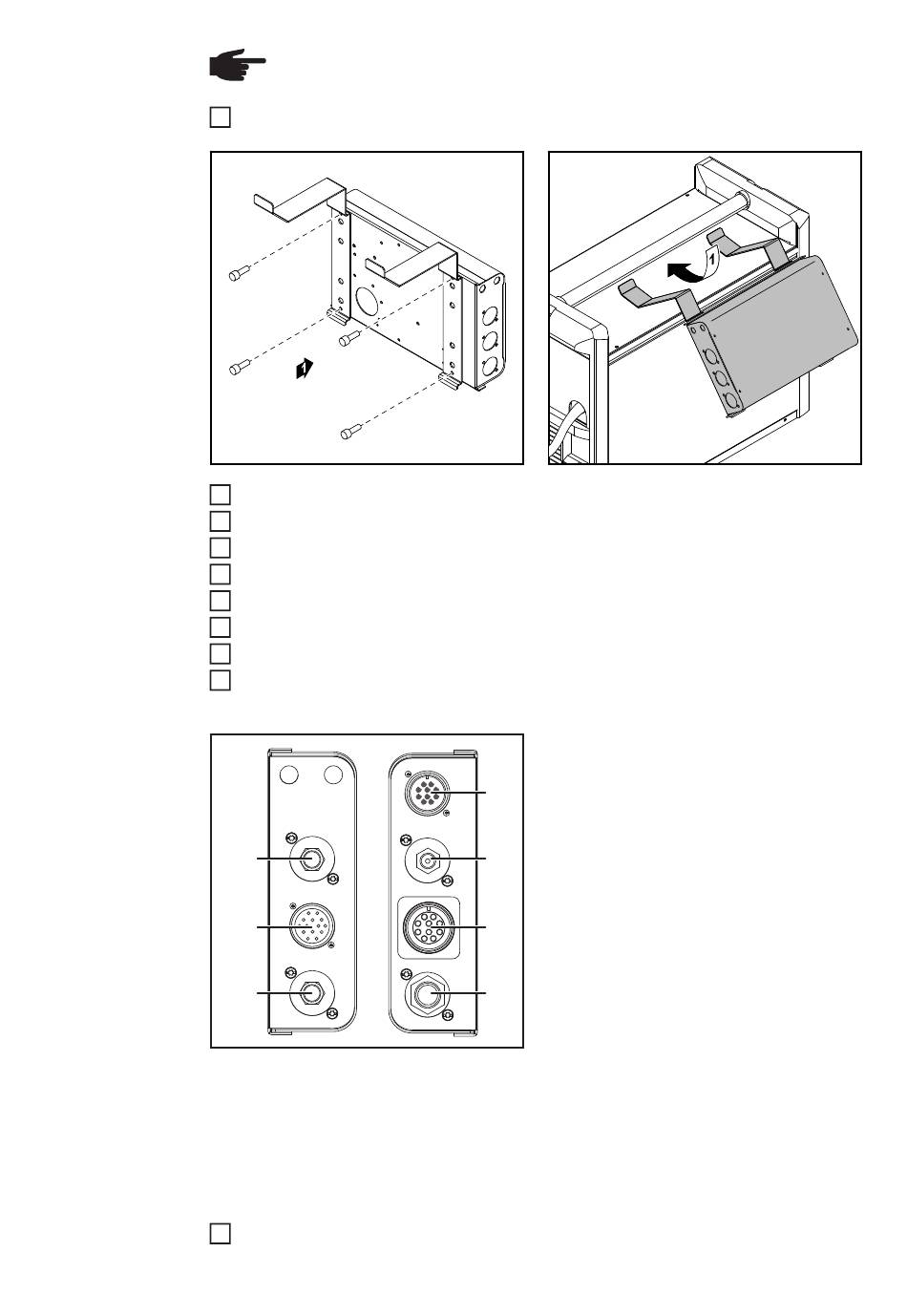

NOTE! The control unit must only be fitted to the power source using the optional
holder from Fronius (item no. 4,100,719).
Fit the Drive Easy Twin control box to the lead power source:
Establish an LHSB connection between the power sources
Connect the lead power source to the robot control
Connect power source "1" to power source "2"
Set up the welding wire drums
Assemble the unreeling wirefeeders
Connect the laser-twin hosepack to the laser welding head
Lay the laser-twin hosepack on the robot
Connect the laser-twin hosepack to the power sources and the Drive Easy Twin con-
trol box:
(1)
(2)
(3)
Rear Front
Route and connect the wirefeeding hoses from the unreeling wirefeeders to the laser
welding head
(1) AIR OUT
For connecting the blow-out line
(red) from the laser-twin hosepack
(4)
(2) Control line connection
For connecting the control line for
the drive unit from the laser-twin ho-
(5)
sepack
(3) GAS OUT
For connecting the shielding gas
(6)
line from the laser-twin hosepack
(4) LocalNet
For connecting the power source
(7)
(5) GAS IN
For connecting the shielding gas in-
feed
(6) LocalNet
Connection socket for system ex-
tension
(7) AIR IN
For connecting the compressed air
line
