Installing The Laser Optics System - Fronius LaserHybrid Ultracompact Twin Operating Instructions Manual

Installing the la- IMPORTANT! When replacing the laser optics system, ensure that the laser optics system
ser optics system and the welding torch correspond in terms of the focal length.
Note:
The numbering of the arrows in the illustrations may differ from the work steps.
(10)
102
2
2
(9)
(7)
(8)

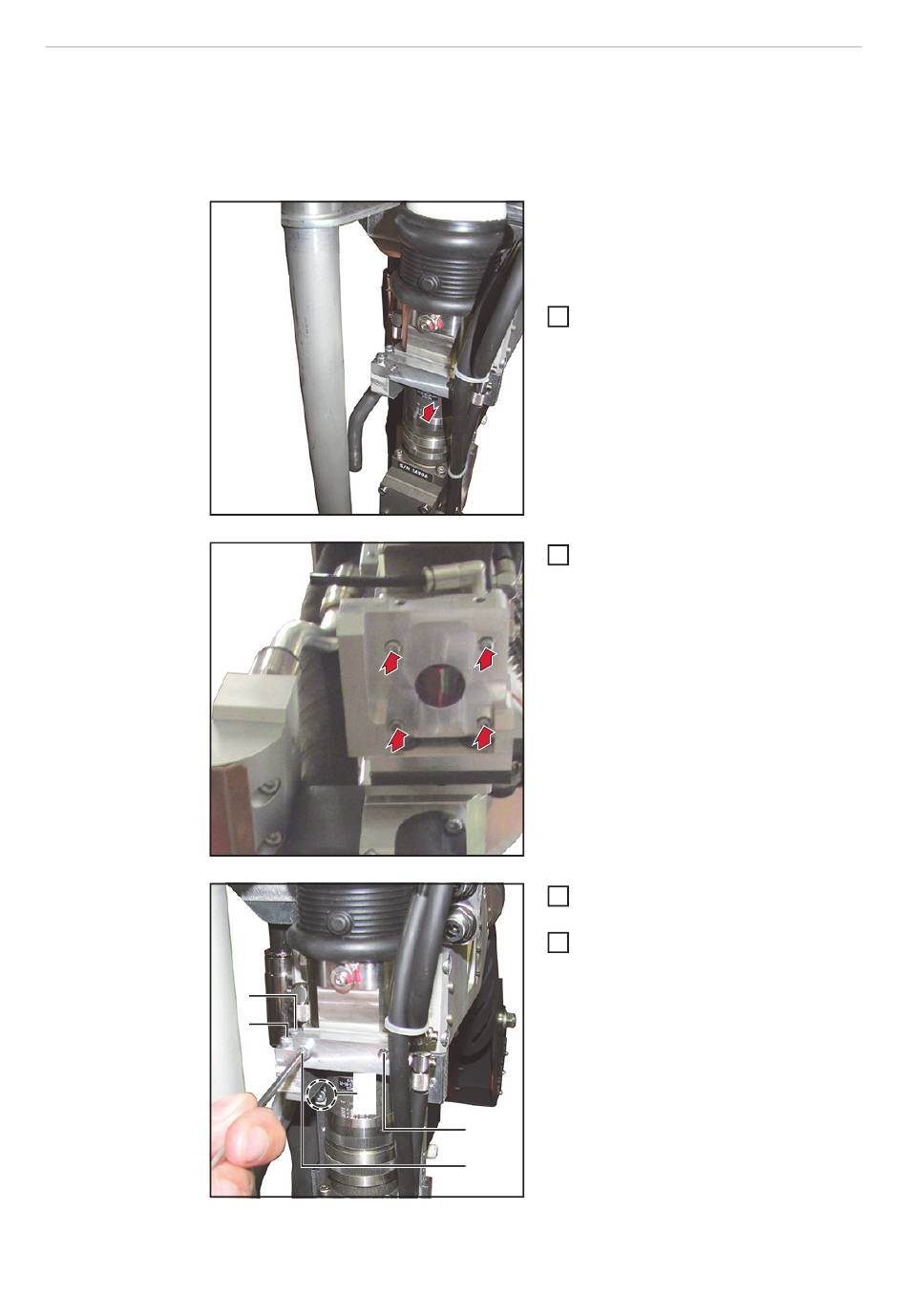

IMPORTANT! When inserting the laser op-
tics system, ensure that the pins on the un-
derside of the laser optics system are
inserted into the openings provided.
Insert the laser optics system into the
1
laser welding head from above
1
Insert the four Allen screws (1) - (4) into
2
the underside of the laser welding
head and tighten them
(2.5 mm)
2
2
Loosen the six Allen screws (5) - (10)
3
(3 mm)
Tighten the Allen screws (5) - (10) in
4
the following order:
1. (5) + (6)
2. (7) + (8)
3. (9) + (10)
(5)
(6)
