Connecting the LaserHybrid Ultracompact Twin
hosepack to the laser welding head

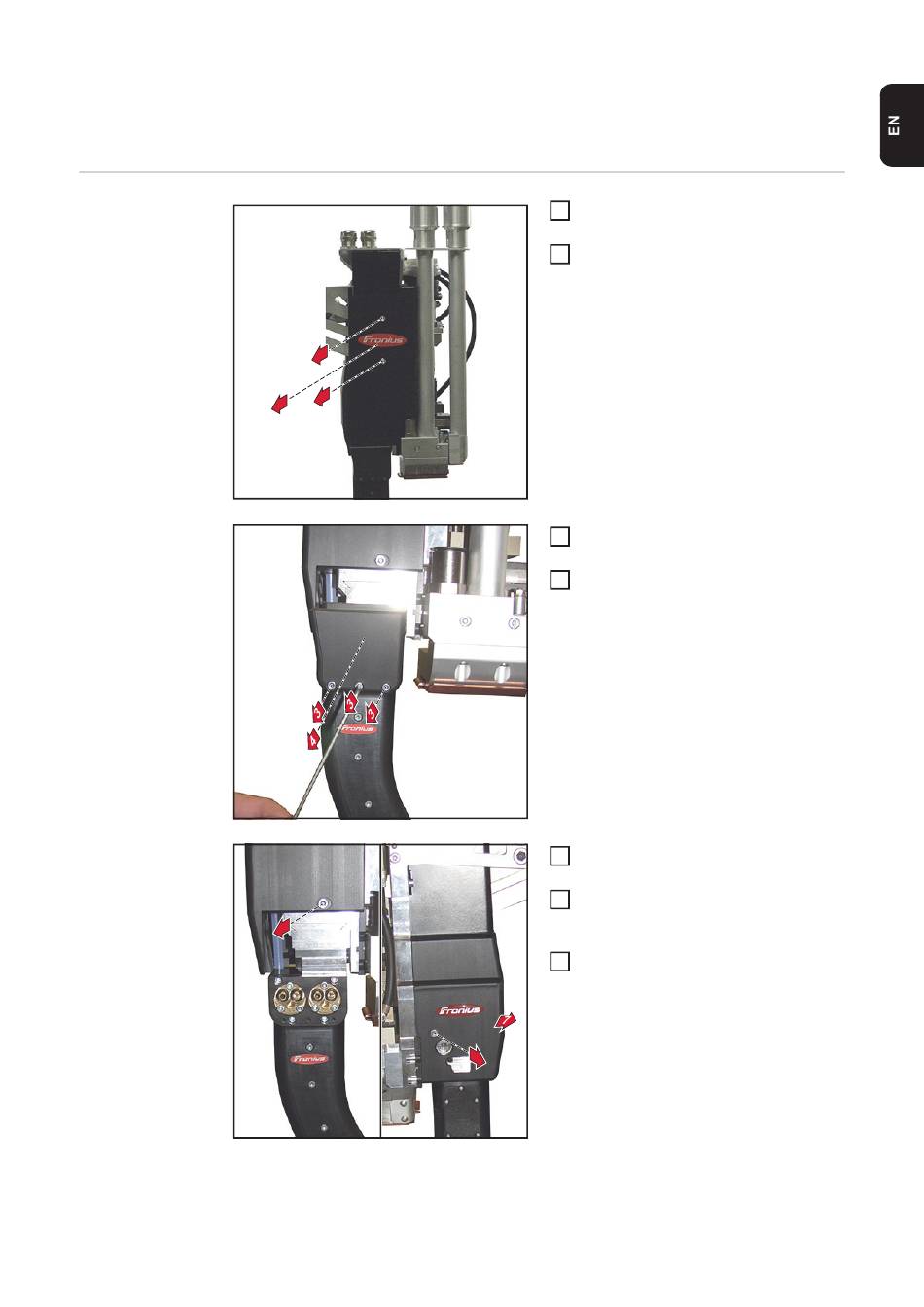

Preparatory work

1
1
2
5
Remove the two Allen screws
1
(4 mm)
Remove the media cover
2
Remove the three Allen screws
3
(2.5 mm)
Remove the current interface cover
4
Remove the Allen screw
5
(3 mm)
Remove the Allen screw on the oppo-
6
site side
(3 mm)
Pull the drive roller cover towards the
7
rear and remove it
6
