Fronius LaserHybrid Ultracompact Twin Operating Instructions Manual page 50

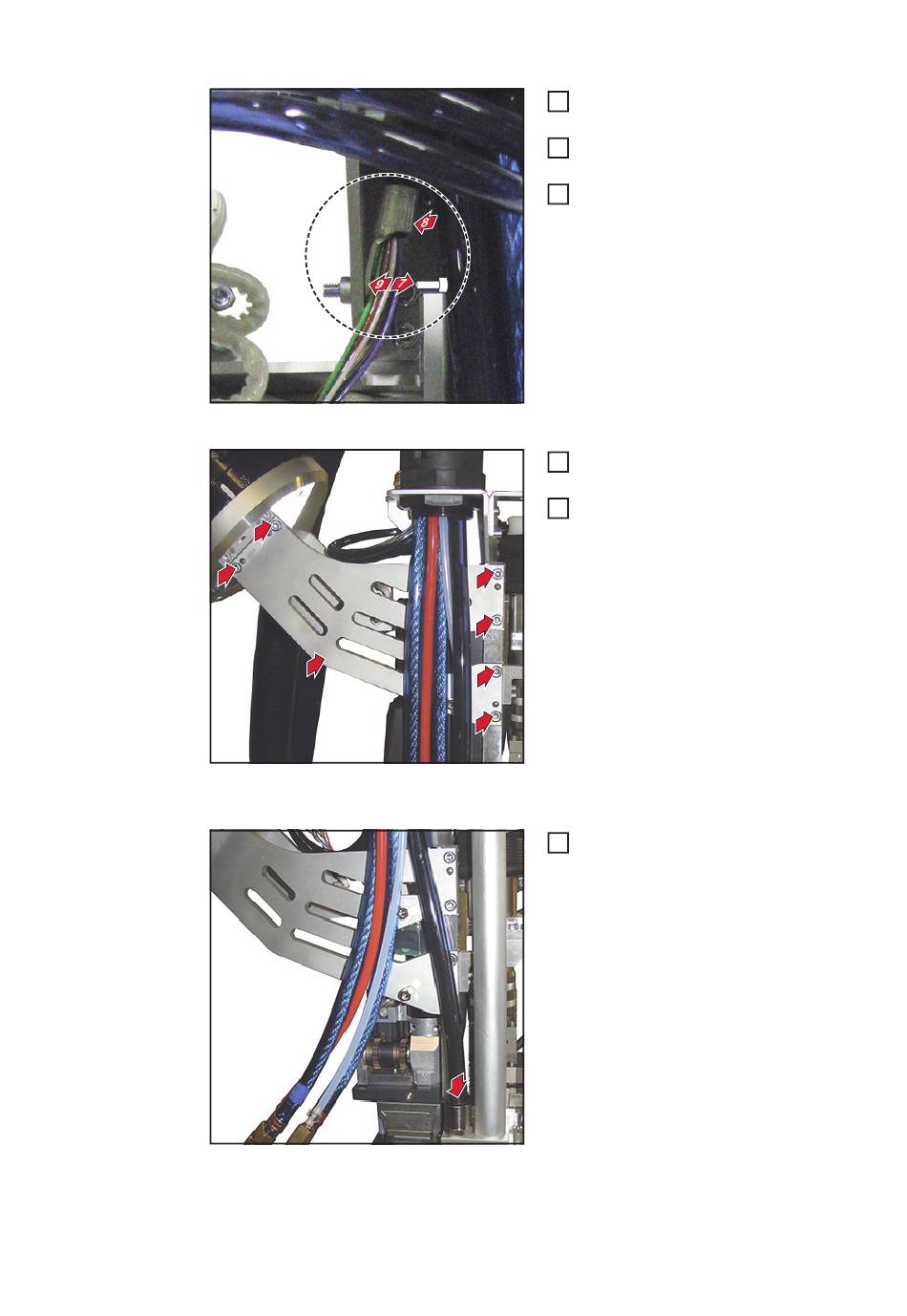

Fitting the strain-relief device
View from the robot to the laser welding head
Connecting the hose for the Crossjet compressed air supply
50
1 1
1 1
1 0
Remove the Allen screw
7
(3 mm)
Position strain-relief device for the mo-
8
tor line from the hosepack
Fit the strain-relief device from the right
9
using an Allen screw
(3 mm)
Position the robot connection flange
10
(without control elements)
Refit the robot connection flange using
11
six Allen screws
(4 mm)
1 1
1 1
1 1
1 1
Insert the hose for the Crossjet com-
12
pressed air supply as far as it will go
1 2
