Laying the hosepack on the robot

Laying the hose- IMPORTANT! The optional LaserHybrid hosepack holder is not included in the scope of
pack on the robot supply of the laser welding head.
(7)
(4)
(6)
(5)
(5)
(8)
(1)
(2)
(3)
(4)
(5)
Assembly
1
2
3
4
5
(3)
(3)
Robot arm
Profile support
LaserHybrid hosepack holder
Opening for extractor hose
Opening for wirefeeding hose

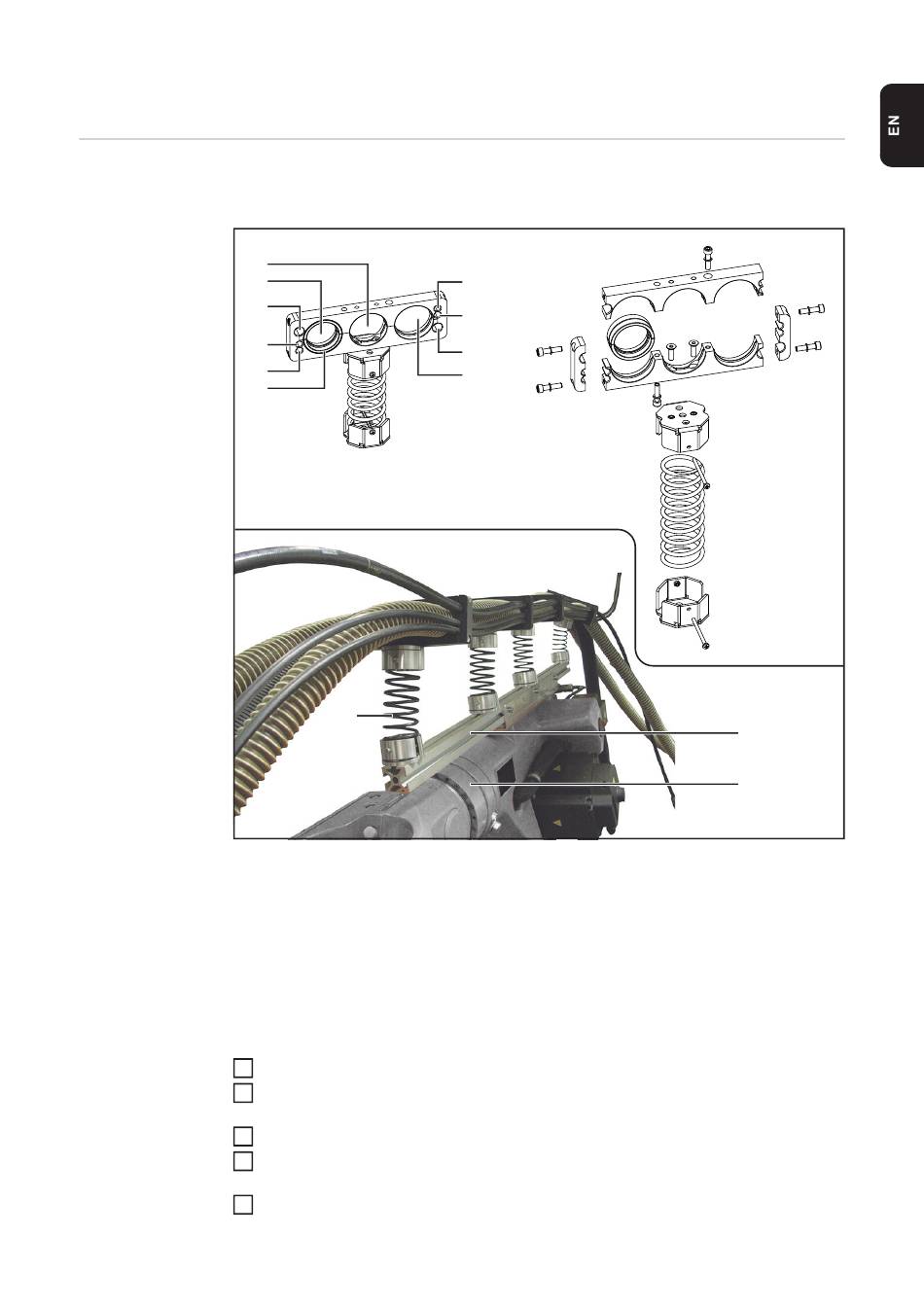

Fit the profile support (2) to the robot arm (1)
Assemble the bottom part of the LaserHybrid hosepack (3) as shown (without the up-
per part and side parts of the hose clamp)
Secure the LaserHybrid hosepack holders (3) to the profile support (2)
Route the hoses, cables and LaserHybrid hosepack into the openings on the Laser-
Hybrid hosepack holders (3)
Position the upper part of the hose clamp and secure using the side parts
(5)
(5)
(6)
(4)
44,0360,0099
(6) Opening for fibre optic cable
(7) Opening for LaserHybrid hose-
pack
(8) Adapter insert for extractor hose
kit ø 41/51 mm
(42,0411,9036)
6 x 4 Nm
4 Nm
4 Nm
(2)
(1)
