Adjusting the laser welding head

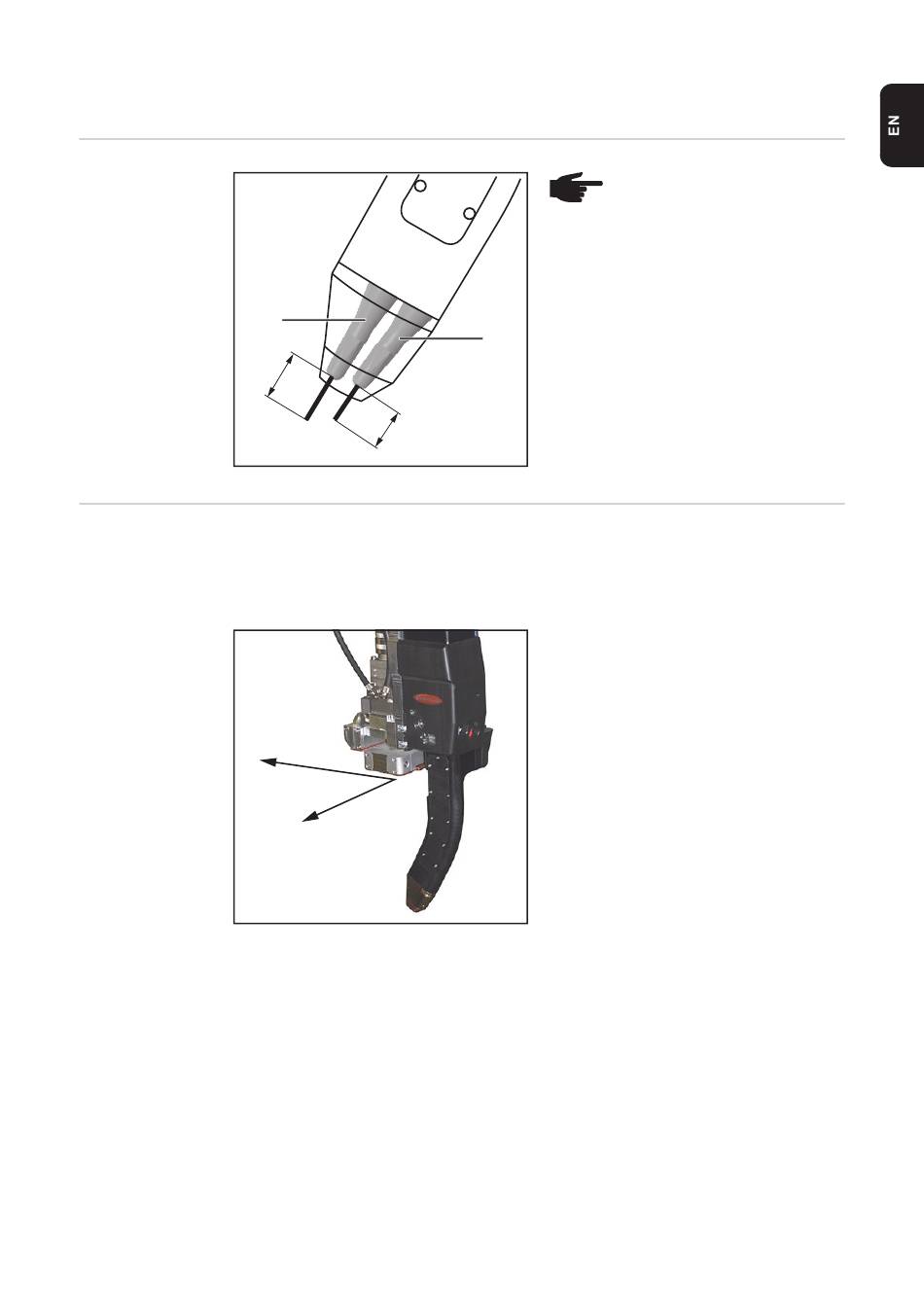

Stick out

Adjustable axes

The physical position of the arc process relative to the laser beam can be adjusted in two
Cartesian coordinate axes.
Adjustment in the z-axis can only be carried out by collimating the laser optics system.
y (± 3 mm)
(1)
(2)
(3)
18 mm
(4)
x (± 2 mm)
NOTE! When setting the physical
position of the welding torch, en-
sure that the stick out is always 18
mm.
(1) Welding torch
(2) Contact tip
(3) Stick out of lead electrode
18 mm (relative to the focal length
(2)
of the laser optics)
(4) Stick out of trail electrode (deter-
mined by the torch settings)
67
