Measures to reduce optics contamination

Measures to re- Crossjet and extractor
duce optics con-
tamination 1.
2.
3.
Protective glass and protective glass replacement
4.
5.
6.
7.
8.
108
Observe the values specified in these Operating Instructions for the Crossjet and ex-
tractor.
Switch on the Crossjet and extractor at least five seconds before the start of welding.
Only switch off the Crossjet and extractor when the laser welding head is in the smoke-
free zone.
To prevent dust entering the focussing lens, the laser welding head must be posi-
tioned vertically when changing the protective glass (welding torch pointing towards
the ground).
Before changing the protective glass:
– Switch on the Crossjet and extractor
– Clean the welding head with compressed air
IMPORTANT! Do not blow compressed air directly against the protective glass.
– Switch off the Crossjet
– Change the protective glass
IMPORTANT! The extractor must be switched on and the Crossjet switched off
when changing the protective glass.
Only keep the protective glass drawer open for as long as is absolutely necessary.
If welding fumes come into contact with the protective glass, the protective glass must
be replaced.
The dirty protective glass can be re-used:
– Pre-clean the protective glass with a cloth
– Thoroughly clean the protective glass using a cotton bud soaked in methanol
– Store the protective glass and keep it free of dust
Protective glass that comes into contact with welding spatter must be replaced imme-
diately.

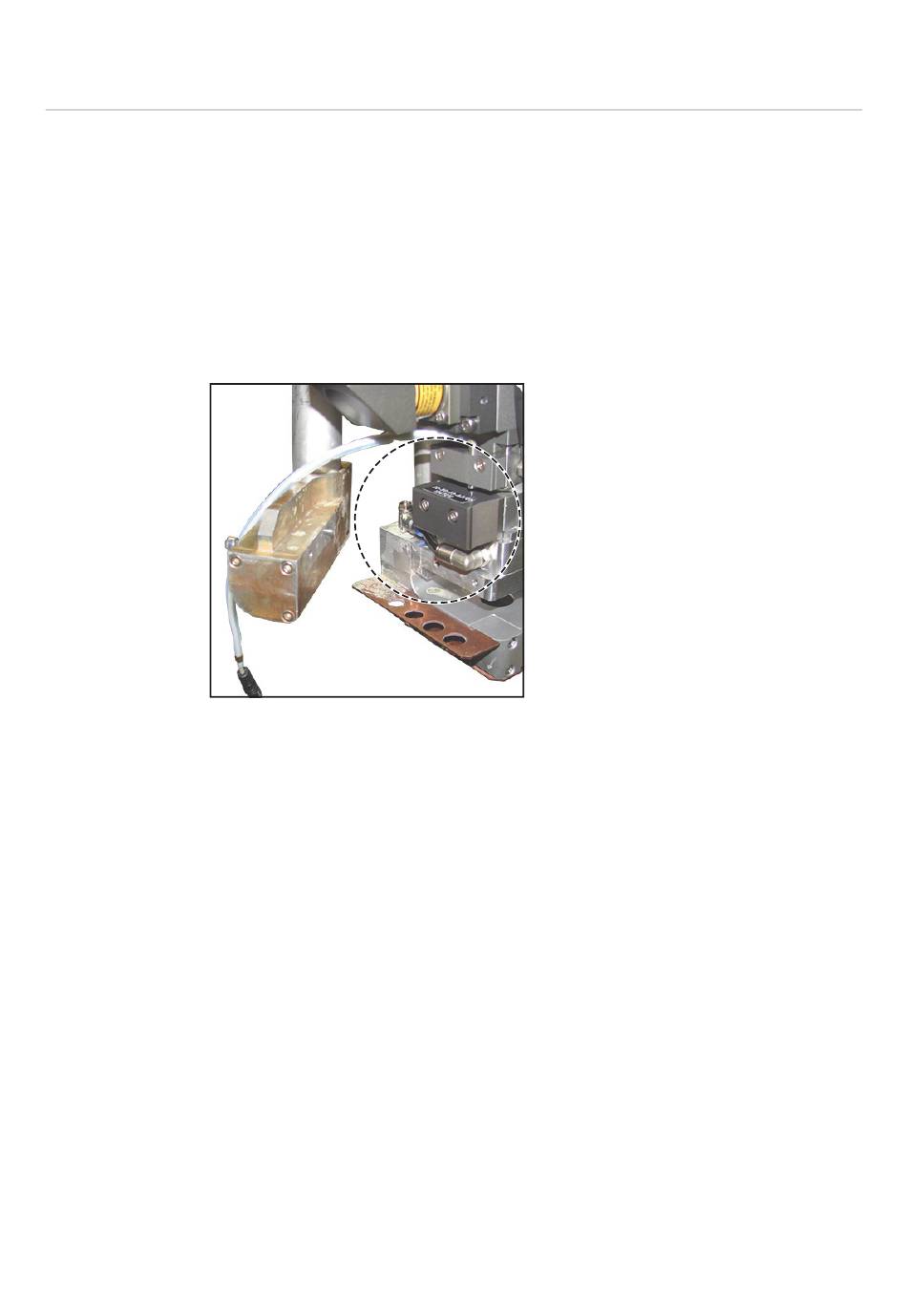

IMPORTANT! Before changing the protec-
tive glass drawer, clean the area around the
protective glass drawer with a cleaning clo-
th.
The protective glass drawer must only be
changed in a clean environment.
