b
c
a
INCORRECTLY positioned rubber sleeve.
The rubber sleeve does not form a complete seal.

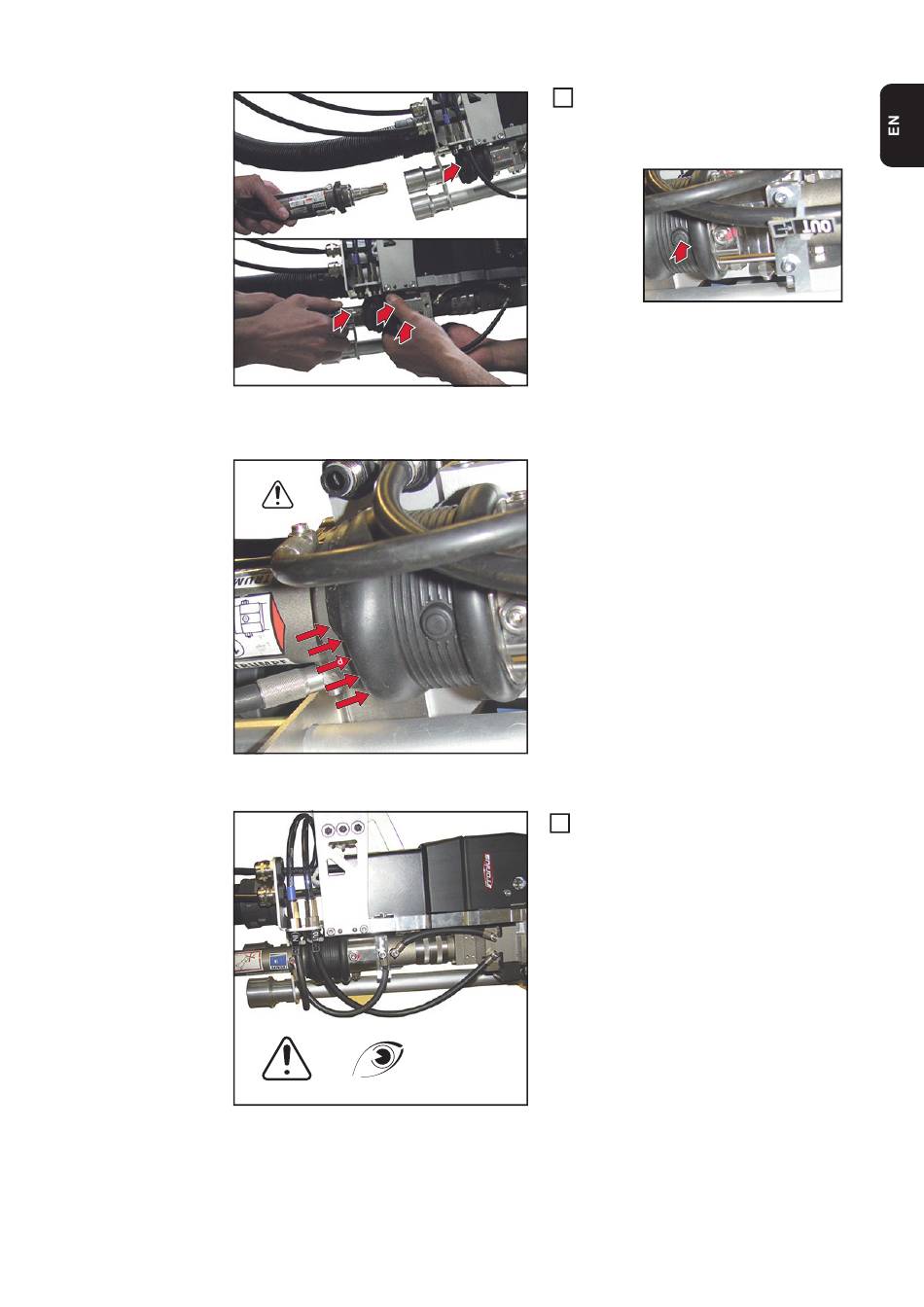

Connect the fibre optic cable:
5
a)
Press the button on the underside
5
b)
Retract the rubber sleeve in the direc-
tion of the optics
c)
Insert the fibre optic cable connector
d)
Check that the rubber sleeve forms a
complete seal around the fibre optic
cable connector
IMPORTANT! The illustration on the
right shows an incorrectly positioned
rubber sleeve
The rubber sleeve shown is kinked
(see arrows) and therefore does not
form a complete seal.
Check that the coolant hoses for the la-
6
ser optics are connected correctly
a
