Fronius LaserHybrid Ultracompact Twin Operating Instructions Manual page 49

(1)
(2)
(3)
(4)
T
5
5
6

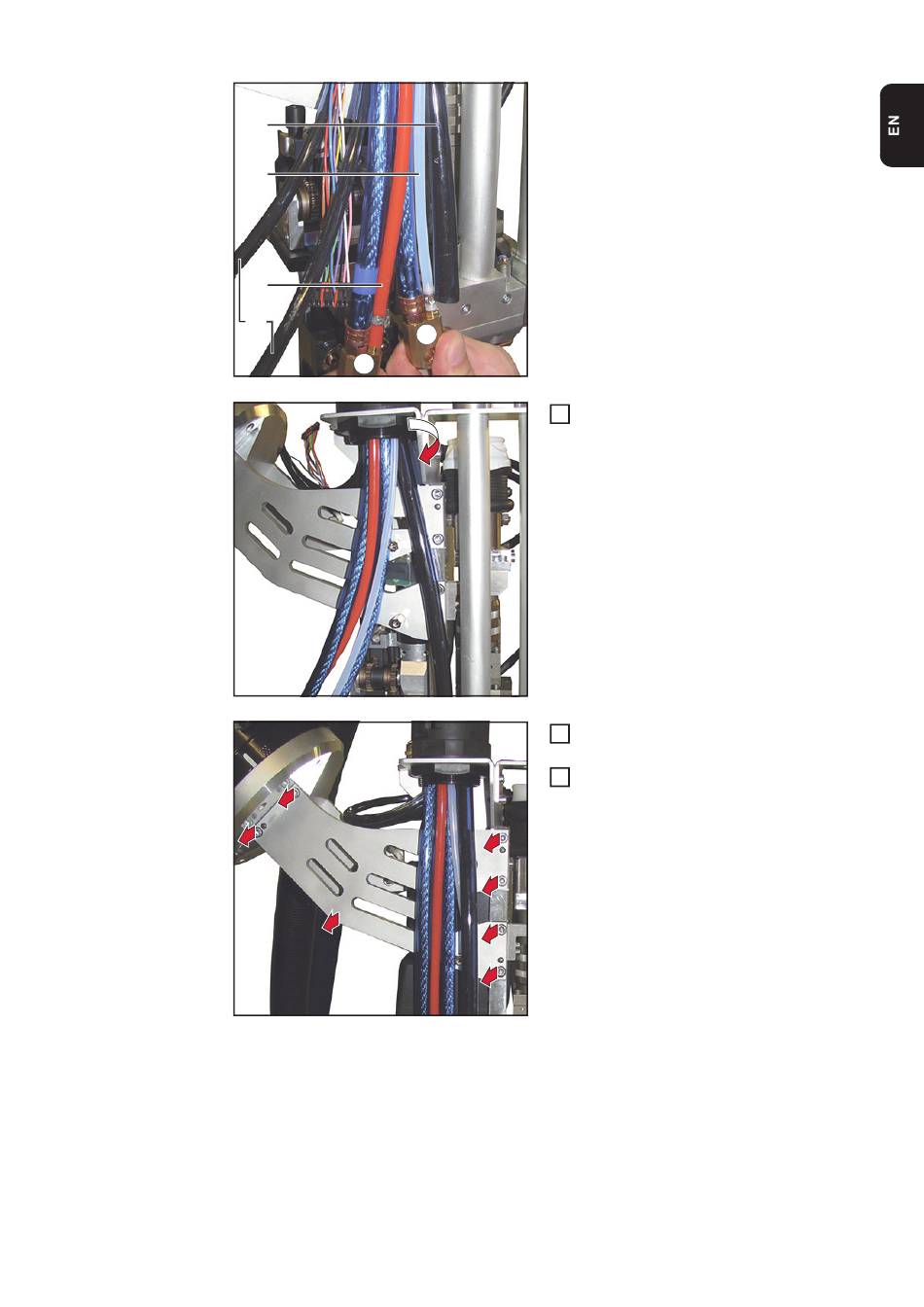

IMPORTANT! Before tightening the hexa-
gon nut, ensure the correct positioning of
the media as shown in the illustration:
a) The hoses (4) for cooling the laser op-
tics are connected on the opposite side
b) Power/coolant cable with red hose (3):
Connection for trail electrode (T)
c) Power/coolant cable with transparent
hose (2):
Connection for lead electrode (L)
d) Crossjet compressed air supply (1)
L
Tighten the hexagon nut
4
(46 mm)
4
Remove the six Allen screws
5
(4 mm)
Remove the robot connection flange
6
(without control elements)
5
5
5
5
