Setting the radial air flow

Requirements

IMPORTANT! The radial air flow must be set before switching on the laser welding head.
The flow rate meter from the laser welding head scope of supply
is required to set the radial air flow.
Setting the radial
air flow
64
1
1
2

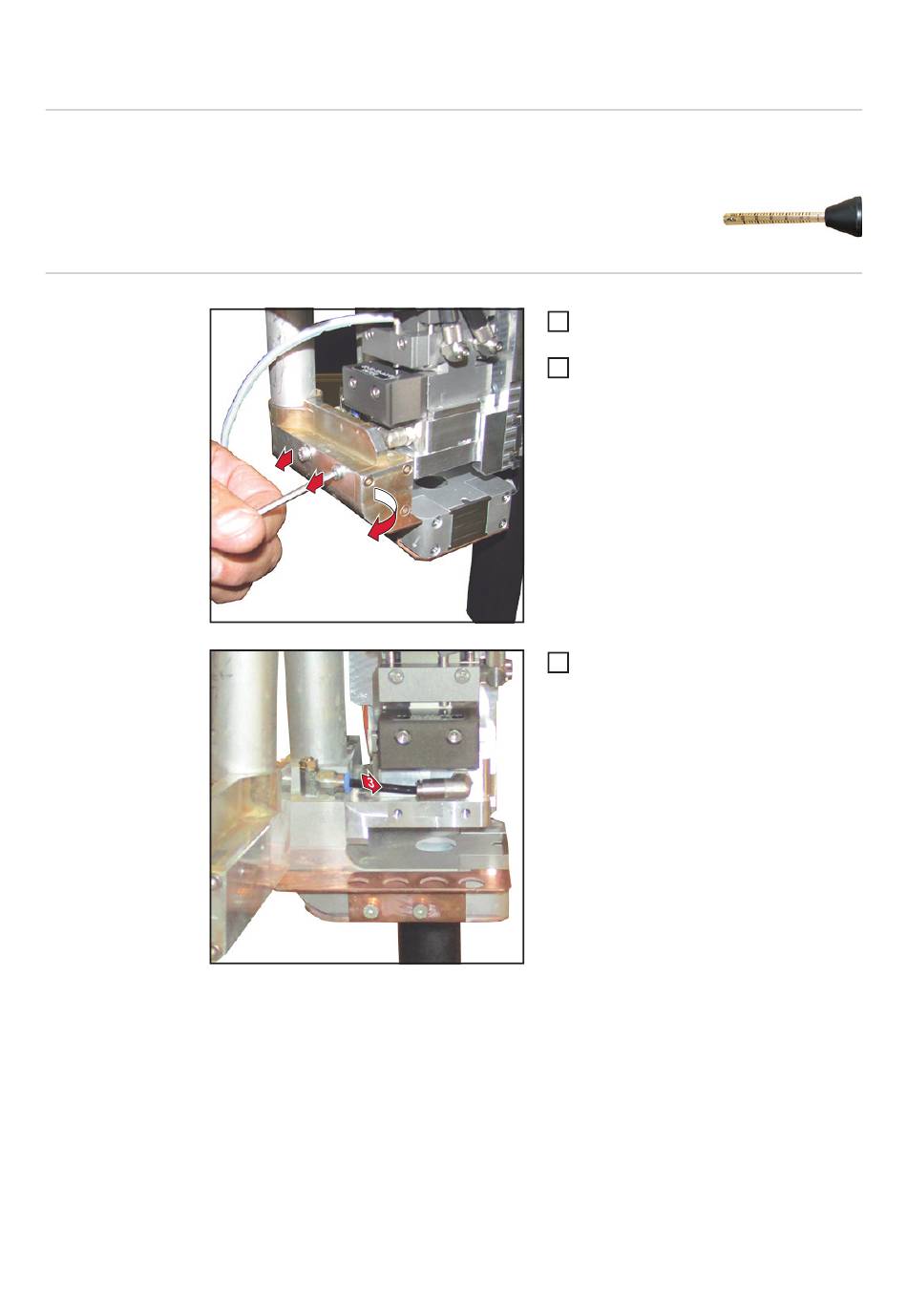

Remove the two Allen screws
1
(3 mm)
Swivel the additional extractor to one
2
side
Disconnect the air hose
3
