Fitting the spatter
guard plate

And finally...

Note:
The numbering of the arrows in the illustrations may differ from the work steps.
1
2
6
5
6
NOTE! The subsequent procedure corresponds to the "Connecting the laser op-
tics system" section, see page 54.

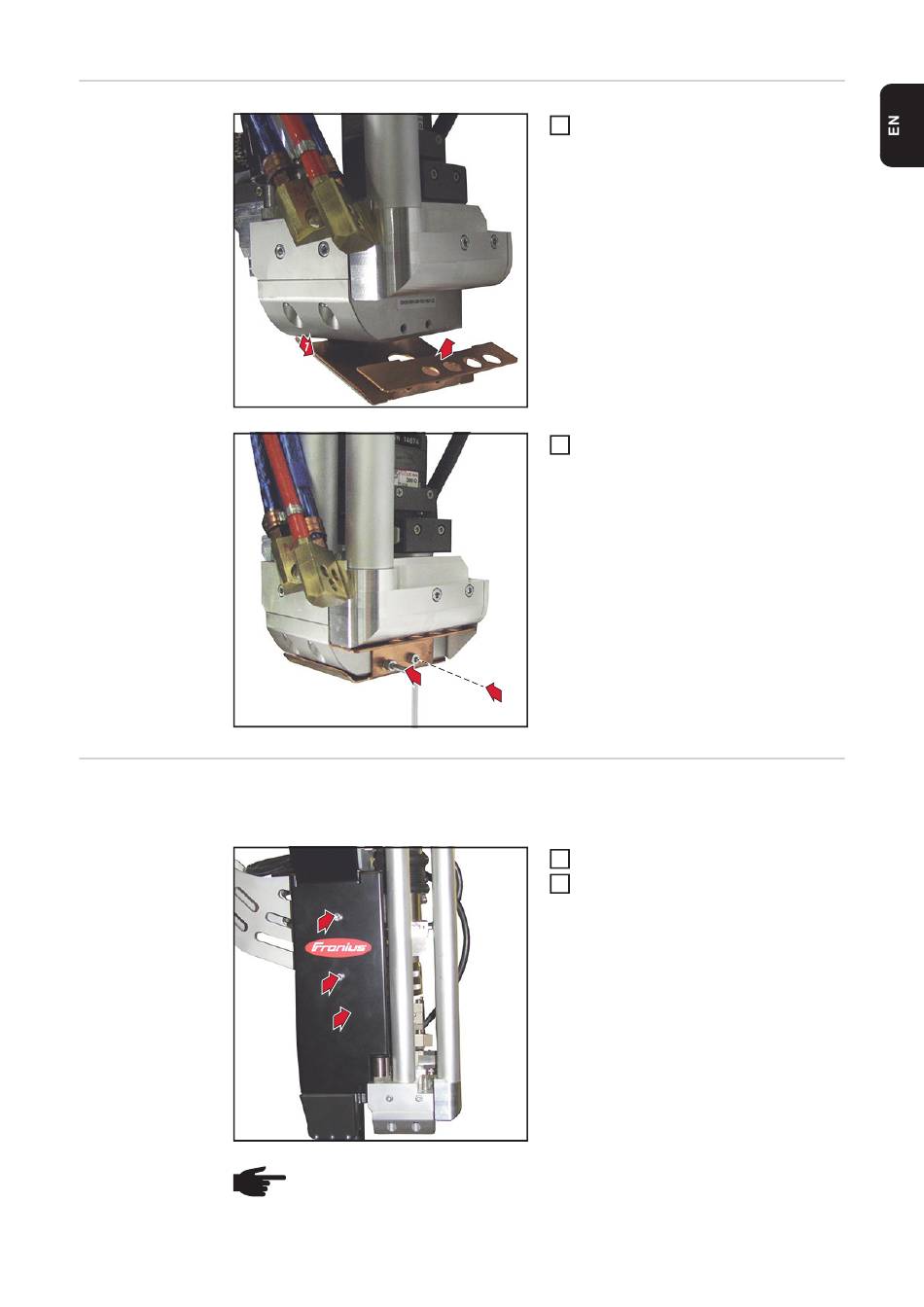

Slot in the spatter guard plate and push
1
it forwards
Fit the spatter guard plate using two Al-
2
len screws
(3 mm)
2
Position the media cover
1
Secure the media cover using two Al-
2
len screws
(4 mm)
