Adjusting Device On The Laser Welding Head; Adjusting The X-Axis - Fronius LaserHybrid Ultracompact Twin Operating Instructions Manual

Adjusting device The laser welding head is fitted with an adjusting device that enables precise positioning
on the laser weld- in the x and y coordinate axes.
ing head
Adjusting the x-
axis
68
(1)
(2)
x
(2)
The adjusting device comprises:
(1)
(2)
(2)

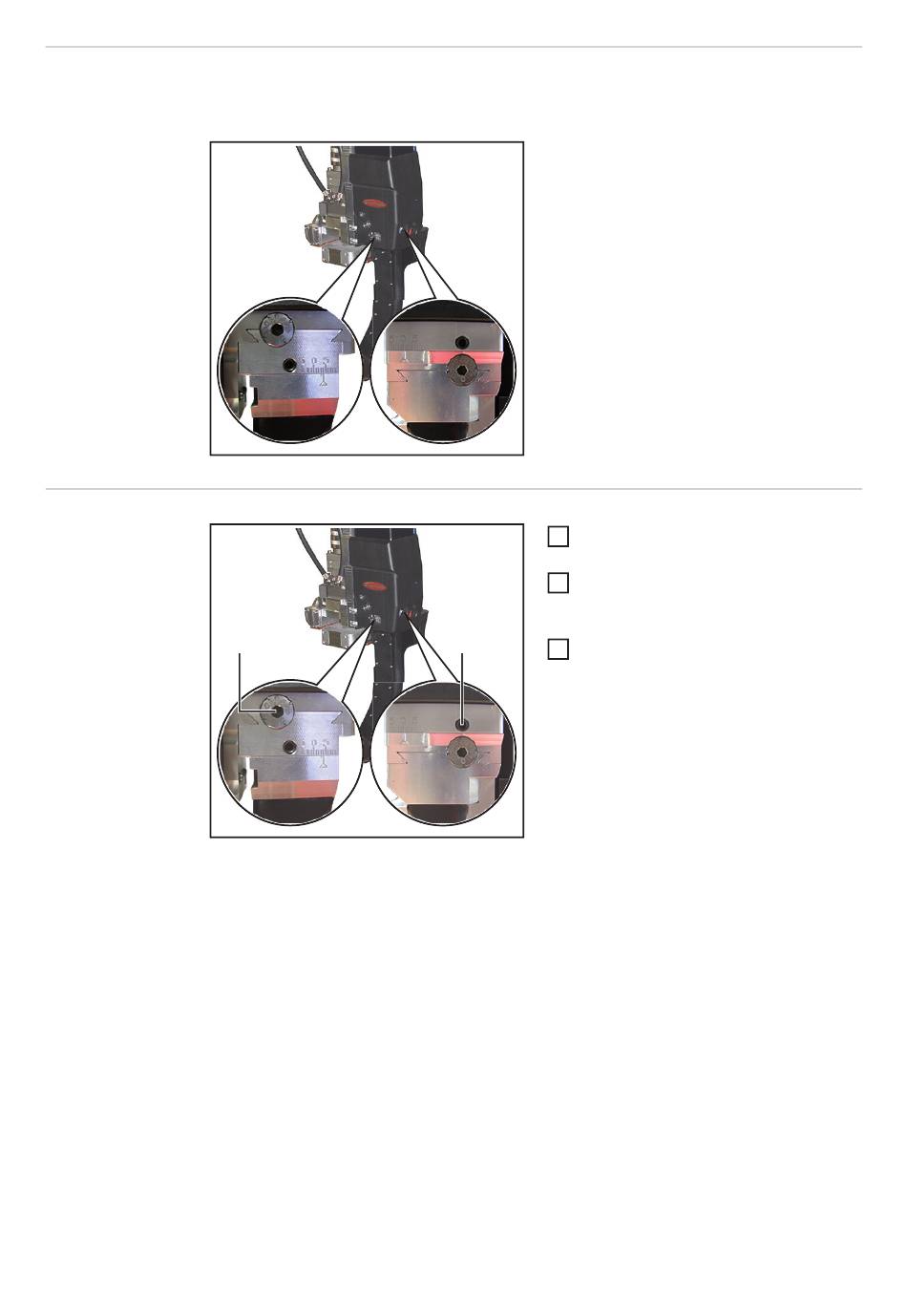

Illustration of both adjusting devices without
covers
(1)
y
Undo the grub screw (1)
1
(3 mm)
Use the adjusting screw (2) and the 3
2
mm Allen key to adjust the x-axis:
1 rotation corresponds to 1.0 mm
Once the x-axis has been adjusted, re-
(1)
3
tighten the grub screw (1)
Illustration of both adjusting devices without
covers
Adjusting screw with pitch
Allen screw
(3 mm),
quarter turn corresponds to an ad-
justment of 0.25 mm
Scale denoting adjustment range
