Parameter
No.
Consecutive number of the entry
Type
Origin/source of the entry
Date/Day
Date of the entry if synchronized, otherwise the time since the last restart is
displayed.
Time
Time of the entry
Note
If the IE/AS-i LINK is synchronized with a time server, the current time is displayed.
Otherwise the time since the last startup is displayed.
Event
Display of the diagnostic buffer entry

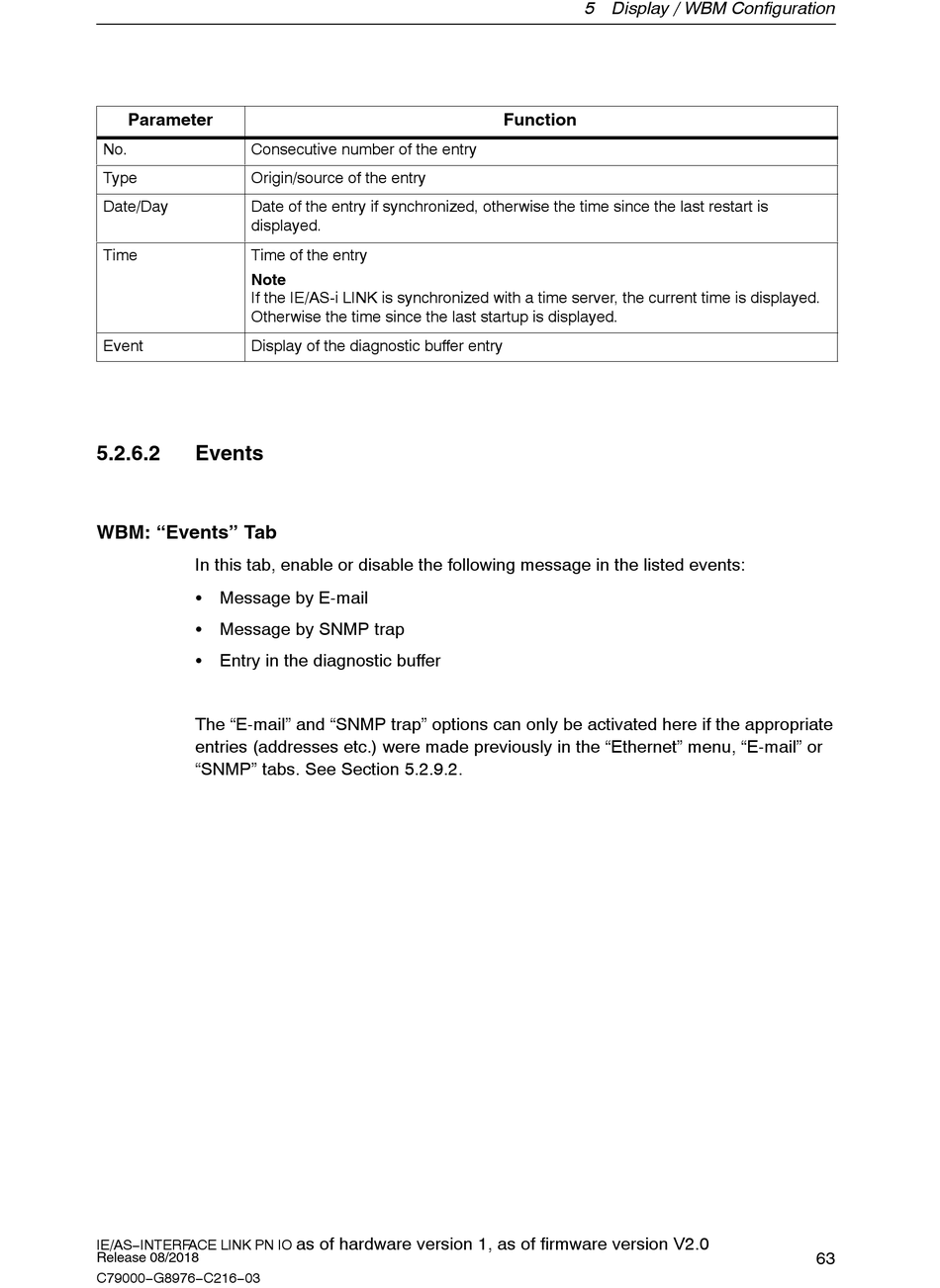

5.2.6.2
Events
WBM: "Events" Tab
In this tab, enable or disable the following message in the listed events:
S Message by E-mail
S Message by SNMP trap
S Entry in the diagnostic buffer
The "E-mail" and "SNMP trap" options can only be activated here if the appropriate
entries (addresses etc.) were made previously in the "Ethernet" menu, "E-mail" or
"SNMP" tabs. See Section 5.2.9.2.
IE/AS−INTERFACE LINK PN IO
Release 08/2018
C79000−G8976−C216−03
as of hardware version 1, as of firmware version V2.0
5 Display / WBM Configuration
Function
63
