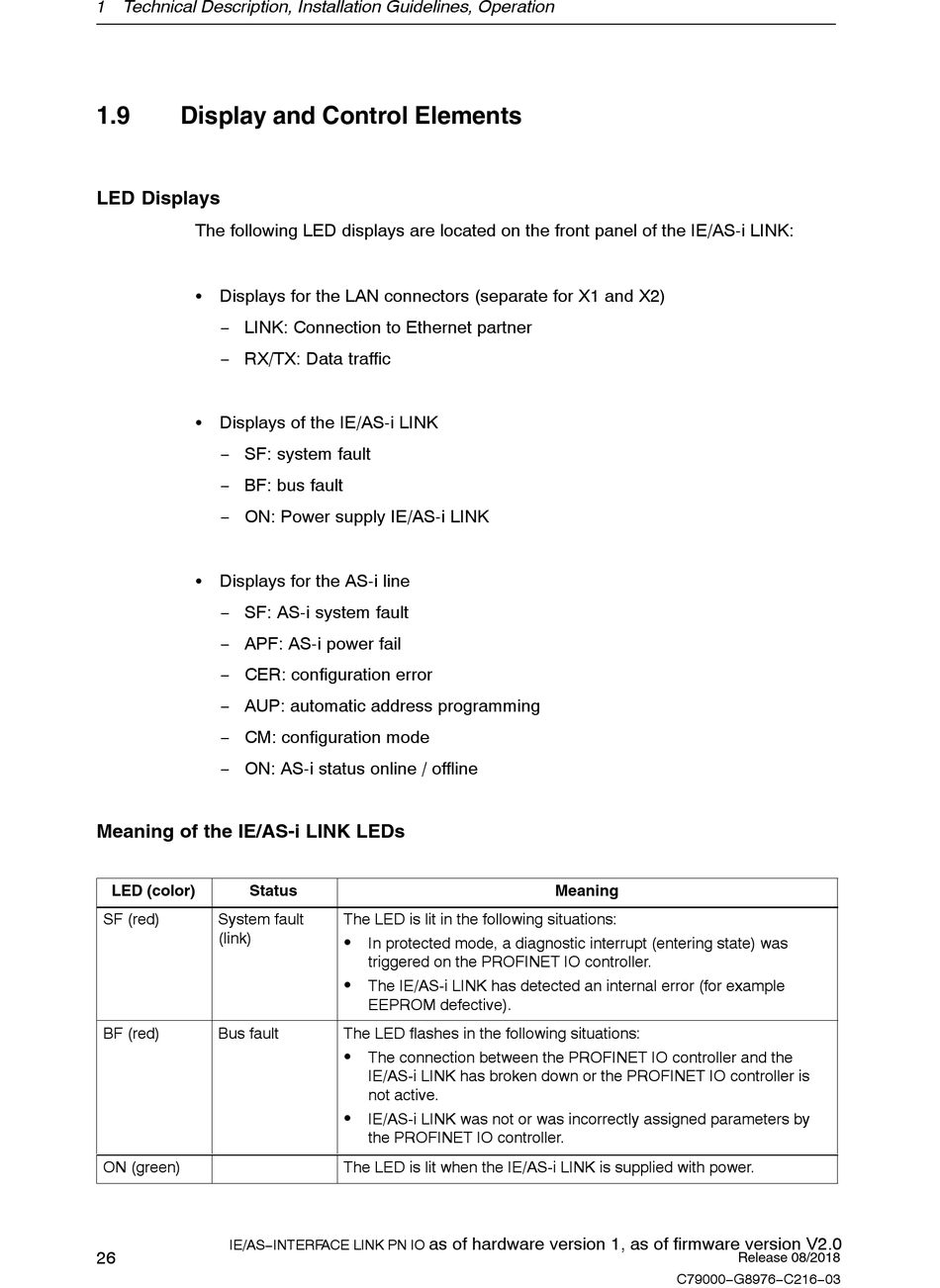

1.9 Display and Control Elements
LED Displays
The following LED displays are located on the front panel of the IE/AS-i LINK:
S Displays for the LAN connectors (separate for X1 and X2)
− LINK: Connection to Ethernet partner
− RX/TX: Data traffic
S Displays of the IE/AS-i LINK
− SF: system fault
− BF: bus fault
− ON: Power supply IE/AS-i LINK
S Displays for the AS-i line
− SF: AS-i system fault
− APF: AS-i power fail
− CER: configuration error
− AUP: automatic address programming
− CM: configuration mode
− ON: AS-i status online / offline
Meaning of the IE/AS-i LINK LEDs
LED (color) Status
SF (red) System fault
(link)
BF (red) Bus fault
ON (green)
IE/AS−INTERFACE LINK PN IO
26
The LED is lit in the following situations:
S
In protected mode, a diagnostic interrupt (entering state) was
triggered on the PROFINET IO controller.
S
The IE/AS-i LINK has detected an internal error (for example
EEPROM defective).
The LED flashes in the following situations:
S
The connection between the PROFINET IO controller and the
IE/AS-i LINK has broken down or the PROFINET IO controller is
not active.
S
IE/AS-i LINK was not or was incorrectly assigned parameters by
the PROFINET IO controller.
The LED is lit when the IE/AS-i LINK is supplied with power.
as of hardware version 1, as of firmware version V2.0
Meaning
